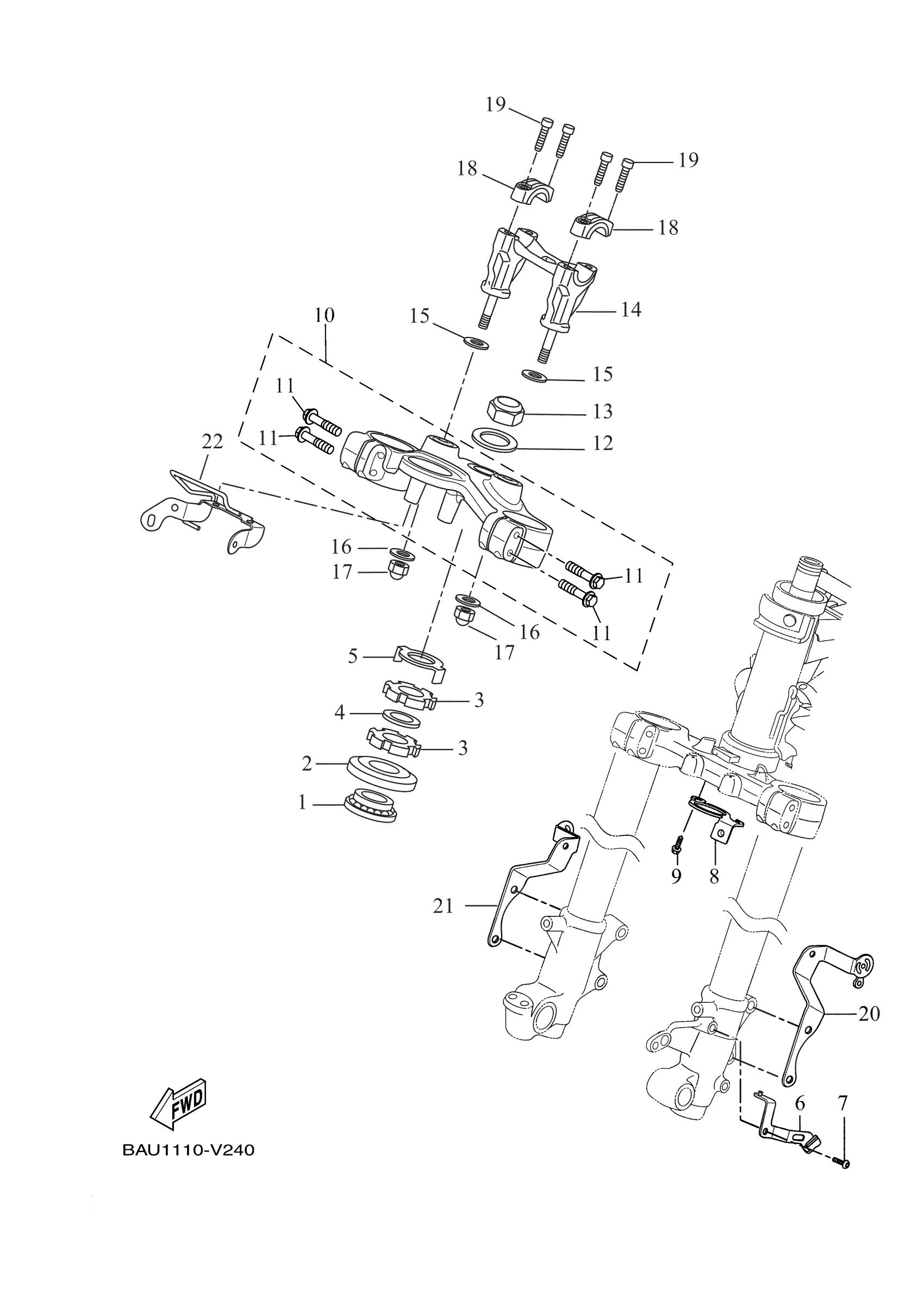

Yamaha XTZ7MW (TENERE 700) BAU11 2021 STEERING Diagram

#

Description
Price

1

BEARING(4ES)

93332-00079-00

$69.99

2

COVER, BALL RACE 2

1W1-23416-00-00

Unavailable

3

NUT(3XP)

90179-25615-00

$26.99

4

WASHER, PLATE (26H)

90202-26142-00

$9.49

5

WASHER, SPECIAL

3YF-23418-00-00

Unavailable

6

WIRE, HOLDER 1

BW3-23318-00-00

Unavailable

7

BOLT, BUTTON HEAD

92017-06012-00

$7.49

8

BRACKET 1

BAU-2334G-00-00

Unavailable

9

BOLT, FLANGE(4MY)

95027-06012-00

$3.88

10

CROWN, HANDLE SET

BW3-W2343-00-00

$155.99

11

BOLT, FLANGE

90105-08134-00

$7.49

12

WASHER, PLATE

90201-22018-00

$5.60

13

NUT, SPECIAL

1RC-23393-00-00

$41.99

14

HOLDER, HANDLE LOWER

BAG-F3442-00-00

Unavailable

15

958-69527-00 WASHER, PLAIN

92990-10200-00

$3.72

16

WASHER, PLATE

90201-10043-00

Unavailable

17

NUT, CROWN

90176-10003-00

Unavailable

18

HOLDER, HANDLE UPPER

BAG-F3441-00-00

Unavailable

19

BOLT, SOCKET

91317-08030-00

Unavailable

20

STAY 1

BW3-2317E-10-00

Unavailable

21

STAY 2

BW3-2317F-10-00

Unavailable

22

BRACKET 2

BW3-2334H-10-00

Unavailable
