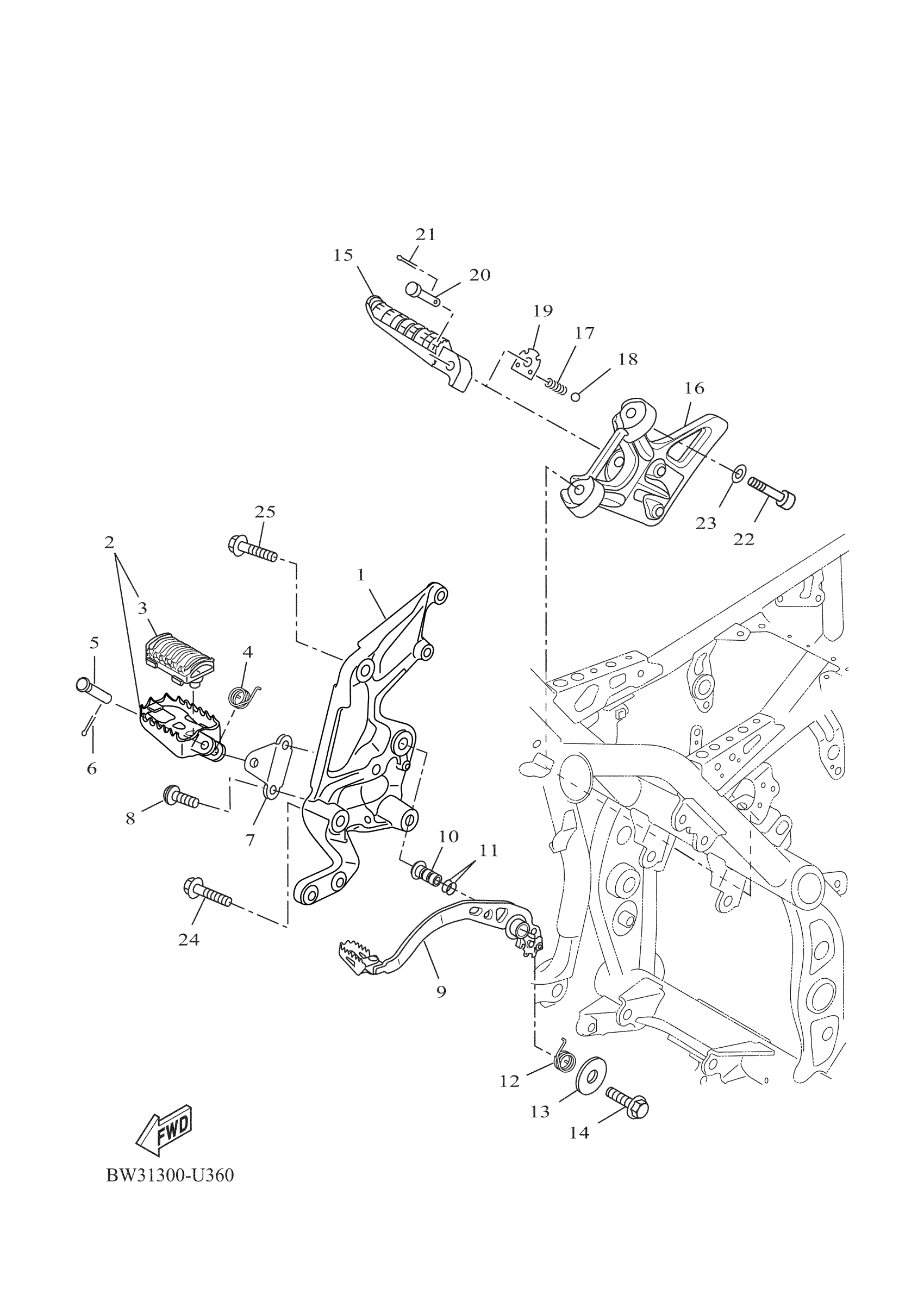

Yamaha XTZ7MW (TENERE 700) BAU11 2021 STAND & FOOTREST 2 Diagram

#

Description
Price

1

BRACKET 3

BW3-F7443-00-00

$240.99

2

FOOTREST ASSY 2

BW3-F7404-00-00

Unavailable

3

COVER, FOOTREST

BW3-F7413-00-00

$30.99

4

SPRING, TORSION

90508-20056-00

Unavailable

5

PIN, CLEVIS

91702-10045-00

$5.60

6

PIN, COTTER

91490-25020-00

$3.19

7

BRACKET, FOOTREST

3D7-21447-00-00

Unavailable

8

SCREW

90149-10033-00

$5.60

9

PEDAL, BRAKE

BW3-27200-01-00

Unavailable

10

COLLAR

5YK-F7213-00-00

Unavailable

11

O-RING (22U)

93210-15566-00

$7.49

12

SPRING, RETURN

5EL-27216-00-00

$6.99

13

WASHER, PLATE

90201-10028-00

$7.49

14

BOLT, FLANGE

90105-10293-00

$5.60

15

FOOTREST, REAR 2

B5C-27441-00-00

$15.99

16

BRACKET 5

BW3-F742L-00-00

Unavailable

17

SPRING, COMPRESSION (22N)

90501-12743-00

Unavailable

18

BALL

93501-04011-00

Unavailable

19

WASHER, SPECIAL

5VX-27437-00-00

Unavailable

20

PIN, CLEVIS

91702-08040-00

Unavailable

21

PIN, COTTER

91490-25020-00

$3.19

22

BOLT,SOCKET

91314-08040-00

Unavailable

23

.. WASHER, PLATE

92990-08600-00

Unavailable

24

BOLT, FLANGE(4KG)

95024-10045-00

Unavailable

25

BOLT, FLANGE

90105-08063-00

Unavailable
