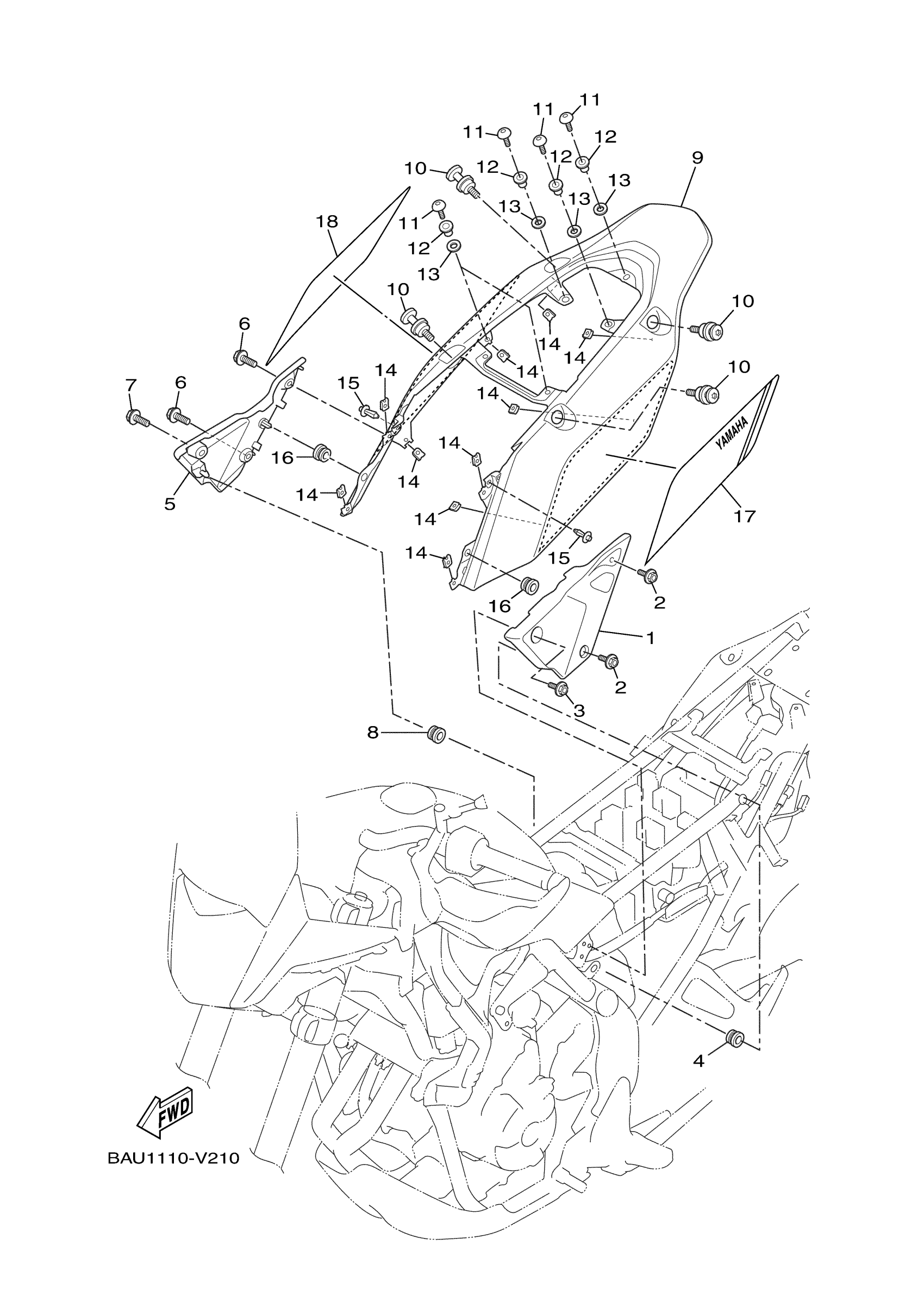

Yamaha XTZ7MW (TENERE 700) BAU11 2021 SIDE COVER Diagram

#

Description
Price

1

COVER, SIDE 1

BW3-F1711-00-00

$42.99

2

SCREW

90149-05042-00

$3.28

3

SCREW

90149-05045-00

$5.60

4

GROMMET(4DN)

90480-01558-00

$4.19

5

COVER, SIDE 2

BW3-F1721-00-00

$38.99

6

SCREW

90149-05042-00

$3.28

7

SCREW

90149-05045-00

$5.60

8

GROMMET(4DN)

90480-01558-00

$4.19

9

COVER, SIDE 3

BMB-21731-00-P4

Unavailable

10

HOOK

BW3-F162A-00-00

$35.99

11

BOLT

90111-05002-00

$7.49

12

COLLAR

90387-06255-00

$8.49

13

WASHER, PLATE

90202-08006-00

$2.12

14

NUT, SPRING

90183-050A6-00

$8.49

15

RIVET

90269-06019-00

$3.18

16

GROMMET(4FU)

90480-13567-00

Unavailable

17

GRAPHIC 1

BAU-2173E-10-00

Unavailable

18

GRAPHIC 2

BAU-2173F-10-00

Unavailable
