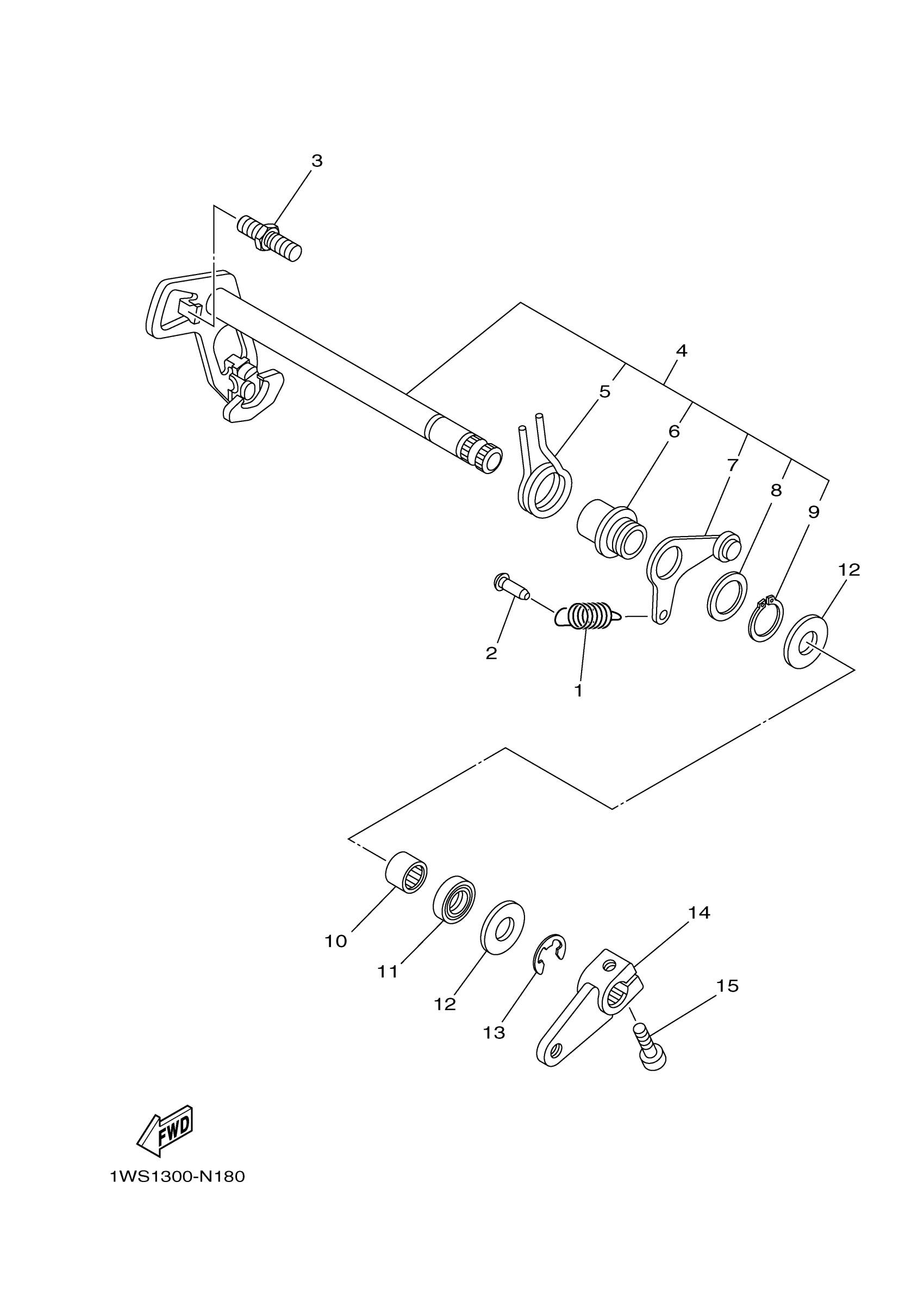

Yamaha XTZ7MW (TENERE 700) BAU11 2021 SHIFT SHAFT Diagram

#

Description
Price

1

SPRING, TENSION

90506-18021-00

$8.49

2

HOOK, SPRING

132-16346-00-00

$9.99

3

STOPPER, SCREW

5VK-18127-00-00

Unavailable

4

SHIFT SHAFT ASSY

1WS-18101-00-00

$205.99

5

SPRING, TORSION

90508-29040-00

$13.49

6

. SPACER

2C0-18175-00-00

Unavailable

7

STOPPER LEVER ASSY

1WS-18140-00-00

$11.99

8

WASHER, PLATE (30X)

90201-177G4-00

$9.49

9

CIRCLIP(1EY)

99009-17400-00

$4.73

10

BEARING

93317-11295-00

$46.99

11

OIL SEAL (12X22X5-371)

93102-12106-00

$11.49

12

WASHER, PLATE (353)

90201-12575-00

$8.49

13

CIRCLIP

99002-10600-00

$8.49

14

ARM, SHIFT

1WS-18112-00-00

$36.99

15

BOLT,SOCKET

91317-06020-00

Unavailable
