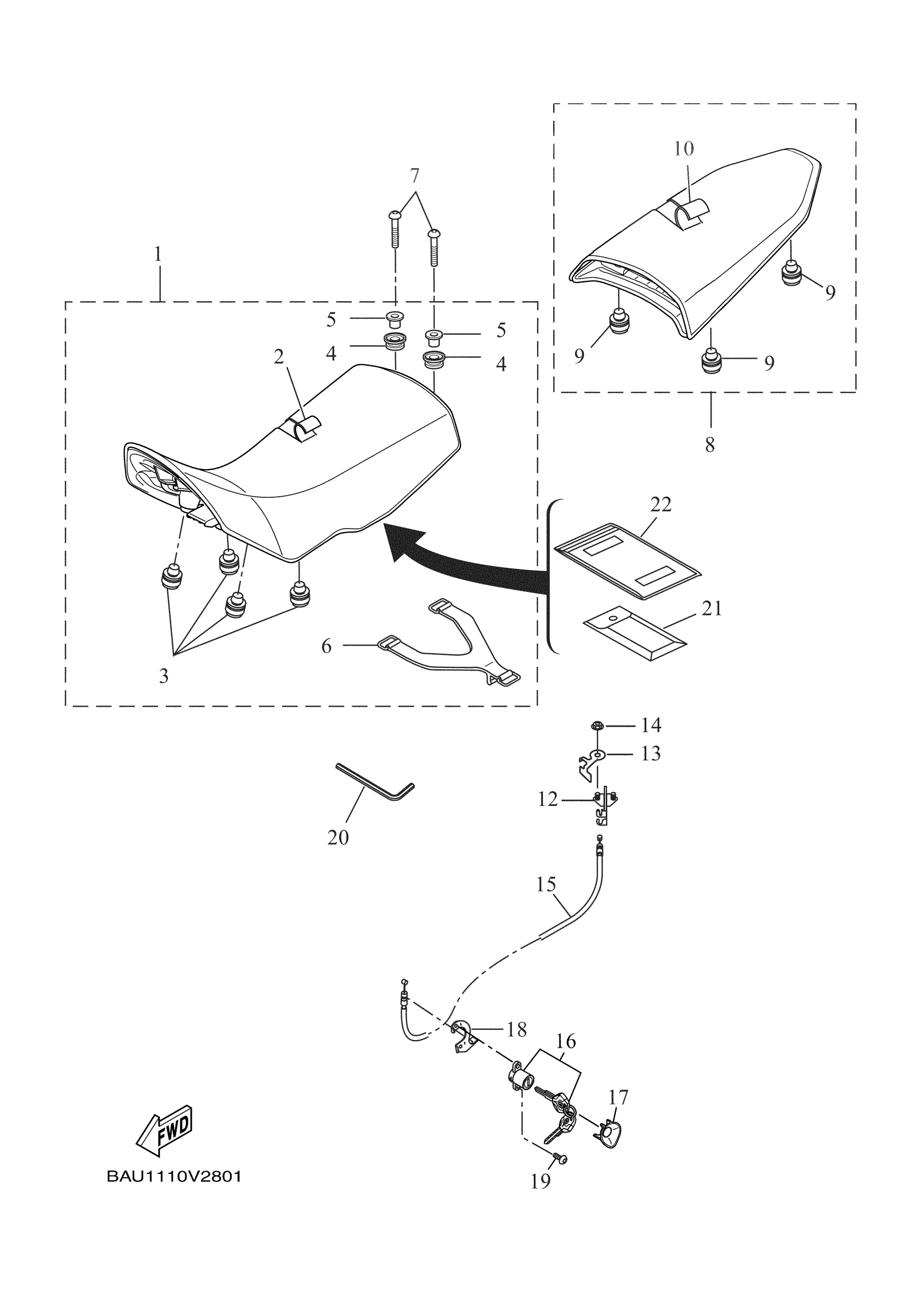

Yamaha XTZ7MW (TENERE 700) BAU11 2021 SEAT Diagram
#
Description
Price
2
SEAT COVER COMP.
BW3-F470F-00-00
Unavailable
6
BAND
11D-F483H-00-00
Unavailable
8
TANDEM SEAT ASSY
BW3-F4750-00-00
Unavailable
10
SEAT COVER COMP. ,
BW3-F470H-00-00
Unavailable
13
PLATE, LOCK
BAU-2479K-00-00
Unavailable
15
CABLE, SEAT LOCK
BW3-F478E-00-00
Unavailable
17
COVER
BW3-F4796-00-00
Unavailable
18
STAY, LOCK
23P-2117K-01-00
Unavailable
19
SCREW
90149-06030-00
Unavailable
20
SPRING SEAT WRENCH
5SE-F8137-00-00
Unavailable
21
TOOL KIT
BW3-F8100-01-00
Unavailable
22
POUCH
4KG-28186-11-00
Unavailable
