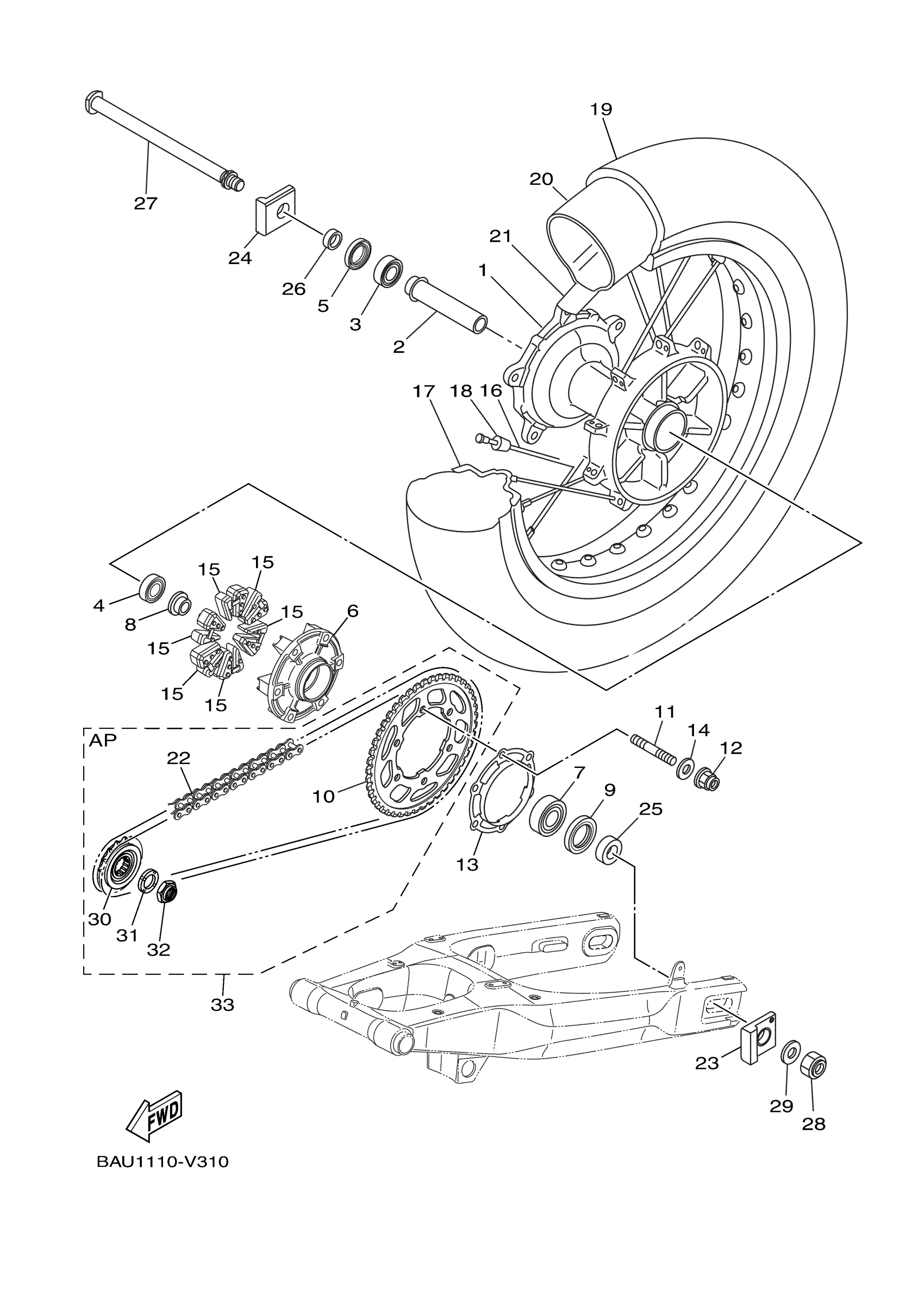

Yamaha XTZ7MW (TENERE 700) BAU11 2021 REAR WHEEL Diagram
#
Description
Price
1
HUB, REAR
BW3-25311-00-00
Unavailable
11
BOLT, STUD
90116-10048-00
Unavailable
16
SPOKE SET, REAR
BW3-F5304-00-00
Unavailable
17
RIM
94440-18002-00
Unavailable
18
BALANCER, WHEEL
BW3-25398-00-00
Unavailable
19
TIRE
94115-18X00-00
Unavailable
20
TUBE
94210-18X00-00
Unavailable
21
BAND, RIM
94315-18X00-00
Unavailable
22
CHAIN
94582-49122-00
Unavailable
23
PULLER, CHAIN 1
3SP-25388-00-00
Unavailable
24
PULLER, CHAIN 2
1RC-25389-00-00
Unavailable
25
COLLAR
90387-20036-00
Unavailable
26
COLLAR
90387-20035-00
Unavailable
27
SHAFT, PIVOT
4FN-22141-00-00
Unavailable
28
NUT, SELF-LOCKING
90185-18009-00
Unavailable
29
WASHER, PLATE
90201-18013-00
Unavailable
30
SPROCKET, DRIVE
BW3-17460-00-00
Unavailable
31
WASHER, CONICAL SPRING
90208-22002-00
Unavailable
32
NUT
90179-22018-00
Unavailable
33
CHAIN & SPROCKET KIT
BAU-W001A-00-00
Unavailable
