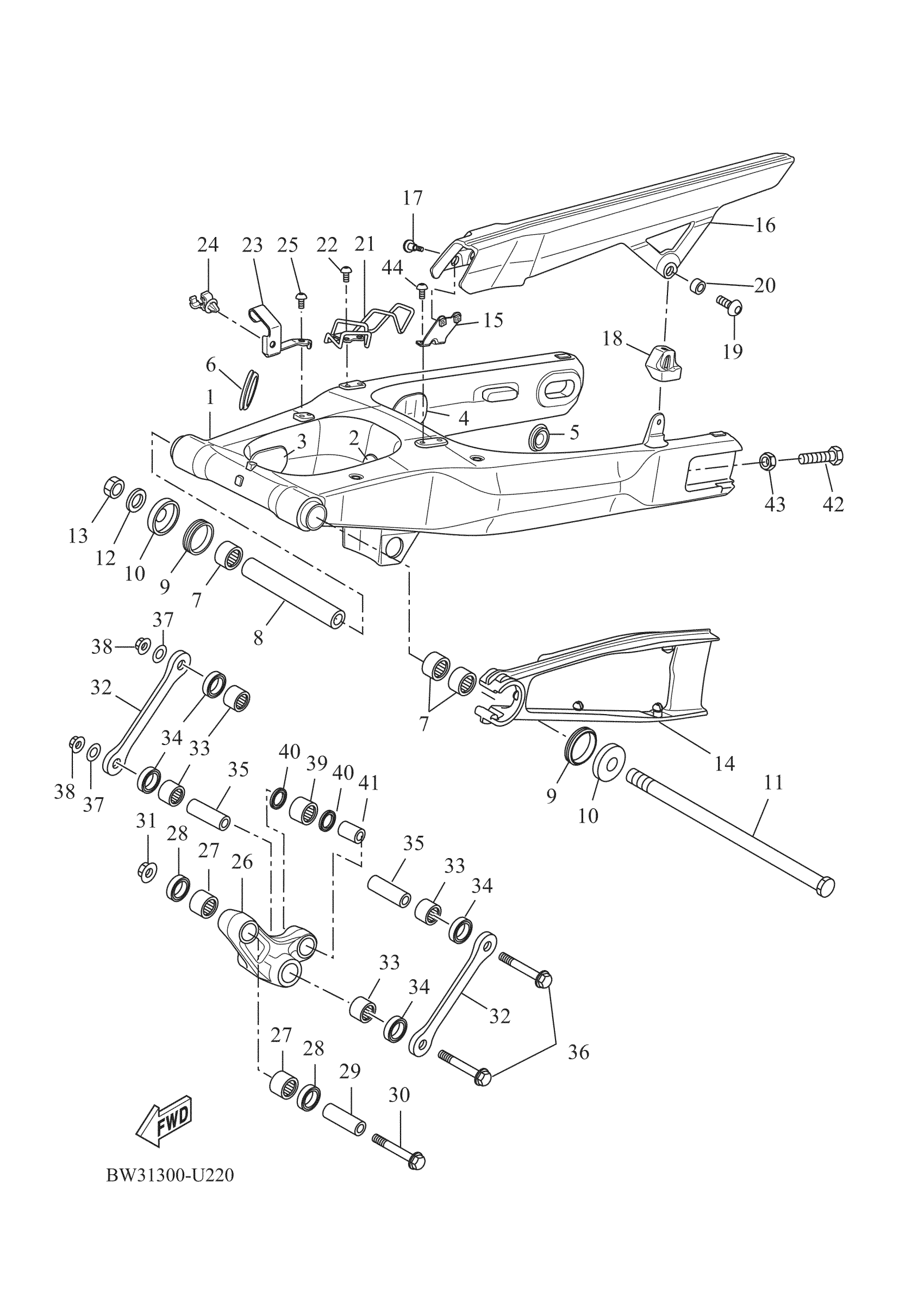

Yamaha XTZ7MW (TENERE 700) BAU11 2021 REAR ARM Diagram
#
2
PLUG
90338-20008-00
Unavailable
3
PLUG
90338-40004-00
Unavailable
4
PLUG
90338-30008-00
Unavailable
5
PLUG
90338-30007-00
Unavailable
8
COLLAR
90387-16034-00
Unavailable
11
SHAFT, PIVOT
BW3-22141-00-00
Unavailable
14
SEAL, GUARD
BW3-F2151-00-00
Unavailable
15
STAY, CHAIH CASE 1
BW3-F2131-00-00
Unavailable
16
CASE, CHAIN
11D-F2311-00-00
Unavailable
17
SCREW, 1
1C3-22969-10-00
Unavailable
18
RUBBER, CHAIN CASE
BW3-F2313-00-00
Unavailable
19
BOLT
90111-05014-00
Unavailable
20
SPACER
90560-05001-00
Unavailable
21
HOLDER, BRAKE HOSE
BW3-25886-10-00
Unavailable
22
BOLT,HEX. SOCKET BUTTON
90111-06864-00
Unavailable
23
STAY 4
BW3-F216A-00-00
Unavailable
24
CLAMP
90464-14013-00
Unavailable
25
BOLT,HEX. SOCKET BUTTON
90111-06864-00
Unavailable
26
ARM, RELAY
BW3-2217A-00-00
Unavailable
27
BEARING
93315-31758-00
Unavailable
28
OIL SEAL
93109-17071-00
Unavailable
29
COLLAR(3FV)
90387-124V0-00
Unavailable
30
BOLT
90101-12058-00
Unavailable
31
NUT, U FLANGE
95607-12200-00
Unavailable
32
ARM 1
BW3-2217M-00-00
Unavailable
33
BEARING, CYLINDRICAL(39K)
93317-21746-00
Unavailable
34
OIL SEAL
93109-17071-00
Unavailable
35
COLLAR(4BH)
90387-126Y1-00
Unavailable
36
BOLT
90101-12059-00
Unavailable
37
WASHER, PLATE (25H)
90201-124G9-00
Unavailable
38
NUT, SELF LOCKING (23X)
90185-12119-00
Unavailable
39
BEARING, CYLINDRICAL(3YL)
93317-31771-00
Unavailable
40
OIL SEAL
93109-17071-00
Unavailable
41
COLLAR(3TJ)
90387-127W0-00
Unavailable
42
BOLT
90101-08006-00
Unavailable
43
NUT
95302-08600-00
Unavailable
44
BOLT,HEX. SOCKET BUTTON
90111-06864-00
Unavailable
