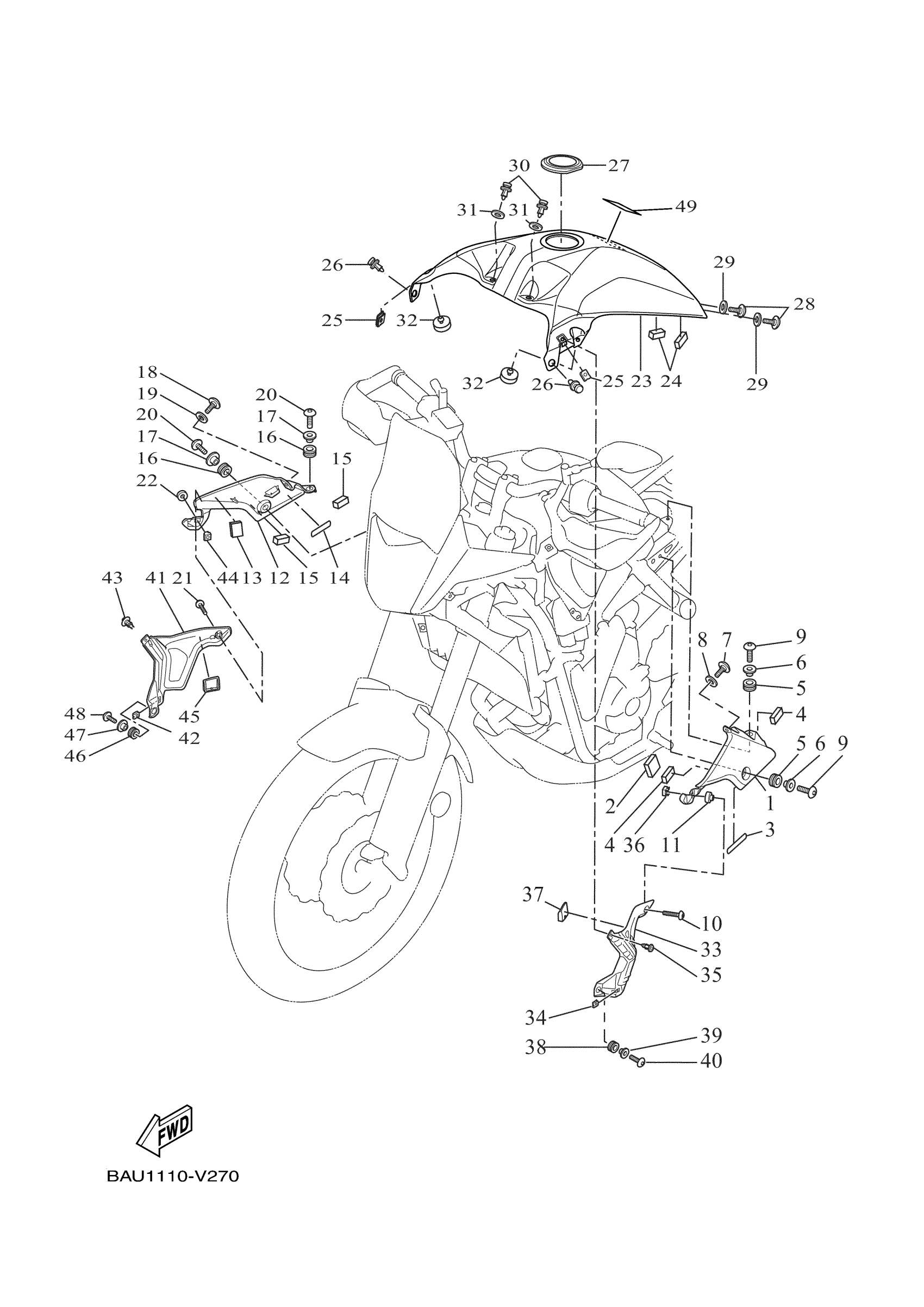

Yamaha XTZ7MW (TENERE 700) BAU11 2021 FUEL TANK 2 Diagram

#

Description
Price

1

COVER, SIDE 1

BAU-24129-00-P1

$182.99

2

DAMPER

5SL-21649-00-00

Unavailable

3

HOOK, SIDE COVER 1

BW3-2411G-00-00

$4.51

4

DAMPER, PLATE

90520-05018-00

$0.90

5

GROMMET

90480-13032-00

$3.28

6

COLLAR

90387-06089-00

$8.49

7

BOLT

90111-05011-00

$5.60

8

WASHER, PLATE

90202-08006-00

$2.12

9

BOLT,HEX. SOCKET BUTTON

90111-06151-00

$3.18

10

BOLT

90111-05014-00

Unavailable

11

COLLAR

90387-05068-00

$3.81

12

COVER, SIDE 2

BAU-24139-00-P1

$158.99

13

DAMPER

5SL-21649-00-00

Unavailable

14

HOOK, SIDE COVER 1

BW3-2411G-00-00

$4.51

15

DAMPER, PLATE

90520-05018-00

$0.90

16

GROMMET

90480-13032-00

$3.28

17

COLLAR

90387-06089-00

$8.49

18

BOLT

90111-05011-00

$5.60

19

WASHER, PLATE

90202-08006-00

$2.12

20

BOLT,HEX. SOCKET BUTTON

90111-06151-00

$3.18

21

BOLT

90111-05014-00

Unavailable

22

COLLAR

90387-05068-00

$3.81

23

COVER, TANK

BAU-241B1-00-P2

Unavailable

24

DAMPER, PLATE

90520-04812-00

Unavailable

25

NUT, SPRING

90183-050A6-00

Unavailable

26

RIVET(4PH)

90269-07077-00

Unavailable

27

SEAL

BW3-F414G-00-00

Unavailable

28

BOLT

90111-05011-00

$5.60

29

WASHER, PLATE

90202-08006-00

$2.12

30

RIVET(4PH)

90269-07077-00

Unavailable

31

DAMPER

5SL-84753-00-00

Unavailable

32

PLUG

90338-06010-00

Unavailable

33

COVER 2

BW3-F8229-00-00

Unavailable

34

NUT, SPRING

90183-050A6-00

Unavailable

35

RIVET

90269-06008-00

Unavailable

36

NUT SPRING

90183-05X08-00

Unavailable

37

DAMPER, PLATE 2

BW3-F414J-00-00

Unavailable

38

GROMMET (1W1)

90480-17213-00

Unavailable

39

COLLAR

90387-06146-00

Unavailable

40

BOLT,HEX. SOCKET BUTTON

90111-05039-00

Unavailable

41

COVER 3

BW3-F8239-00-00

Unavailable

42

NUT, SPRING

90183-050A6-00

Unavailable

43

RIVET

90269-06008-00

Unavailable

44

NUT SPRING

90183-05X08-00

Unavailable

45

DAMPER, PLATE 3

BW3-F414K-00-00

Unavailable

46

GROMMET (1W1)

90480-17213-00

Unavailable

47

COLLAR

90387-06146-00

Unavailable

48

BOLT,HEX. SOCKET BUTTON

90111-05039-00

Unavailable

49

LABEL, CAUTION

1TP-2118K-A2-00

Unavailable
