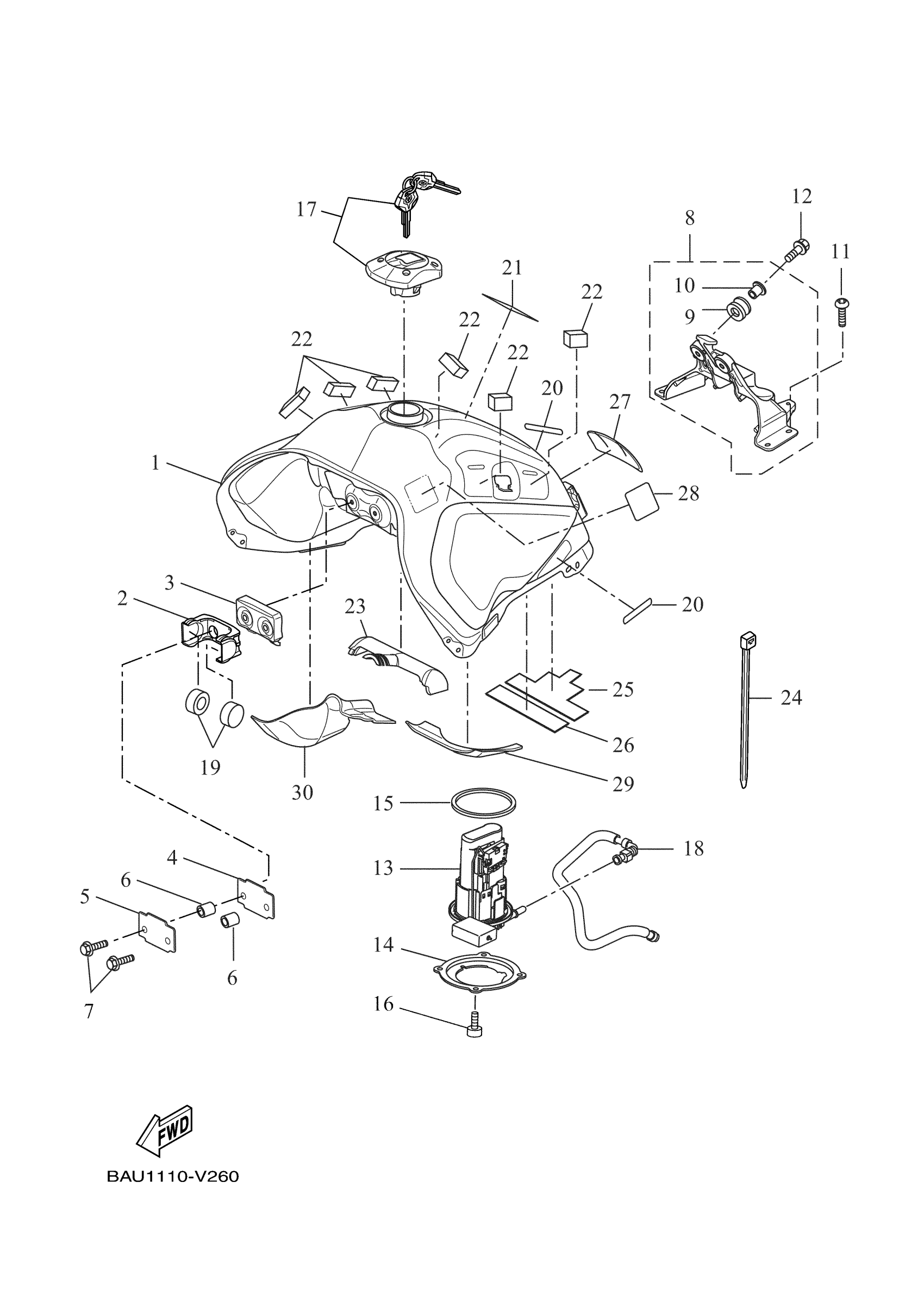

Yamaha XTZ7MW (TENERE 700) BAU11 2021 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP.

BW3-24110-02-P1

$766.99

2

BRACKET, TANK FITTING

BW3-2412Y-00-00

$21.99

3

DAMPER, LOCATING 1

BW3-24181-00-00

Unavailable

4

DAMPER, LOCATING 2

BW3-24182-00-00

Unavailable

5

WASHER, SPECIAL

BW3-24186-00-00

Unavailable

6

COLLAR (1M1)

90387-06553-00

$9.49

7

BOLT, FLANGE

95817-06025-00

Unavailable

8

TANK BRACKET ASSY 2

BW3-24105-01-00

Unavailable

9

GROMMET

90480-18018-00

Unavailable

10

COLLAR

90387-06136-00

$7.49

11

BOLT

90111-06051-00

$5.60

12

BOLT, FLANGE

95817-06025-00

Unavailable

13

FUEL PUMP COMP.

BW3-13907-10-00

Unavailable

14

BRACKET, FUEL PUMP

BW3-24491-00-00

Unavailable

15

O-RING

1RC-24486-00-00

$30.99

16

BOLT

91312-05010-00

Unavailable

17

CAP ASSY

BW3-24602-00-00

Unavailable

18

PIPE, FUEL 1

BW3-13971-01-00

Unavailable

19

DAMPER, LOCATING 1

3TB-24181-00-00

Unavailable

20

HOOK, SIDE COVER 1

BW3-2411G-00-00

Unavailable

21

DAMPER

5UM-21717-E0-00

Unavailable

22

DAMPER, PLATE

90520-05025-00

Unavailable

23

DAMPER, LOCATING 4

BW3-24184-00-00

Unavailable

24

CLAMP

90464-65001-00

Unavailable

25

PROTECTOR

BW3-24595-00-00

Unavailable

26

PROTECTOR

BW3-24595-10-00

Unavailable

27

PROTECTOR, FUEL TANK

BW3-24141-00-00

Unavailable

28

SEAL 1

3FY-21575-01-00

Unavailable

29

DAMPER, PLATE 1

BW3-2414H-00-00

Unavailable

30

DAMPER, PLATE 2

BW3-2414J-00-00

Unavailable
