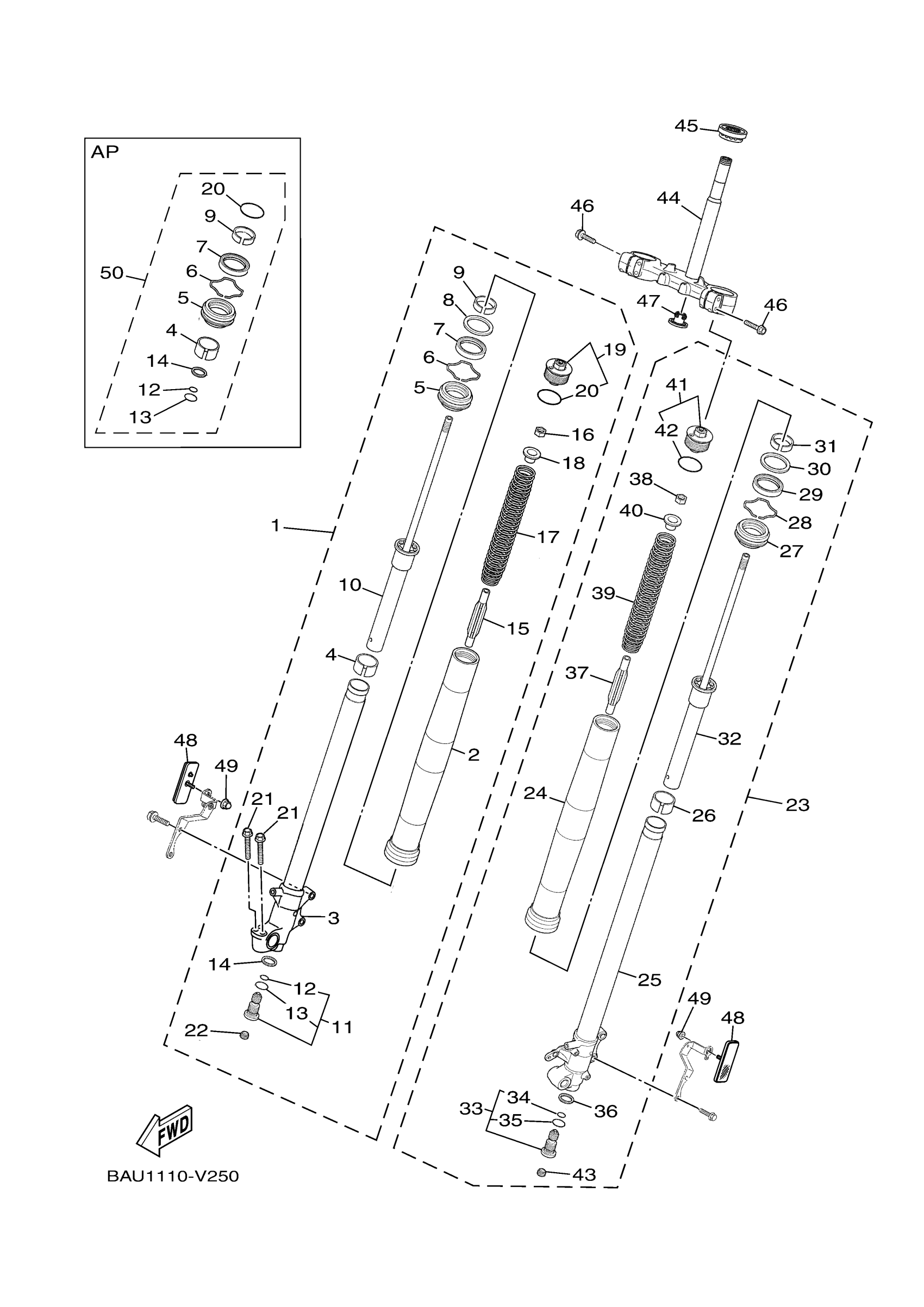

Yamaha XTZ7MW (TENERE 700) BAU11 2021 FRONT FORK Diagram
#
1
FRONT FORK ASSY (R.H)
BW3-23103-03-00
Unavailable
2
TUBE, OUTER (L.H)
BW3-23126-00-00
Unavailable
10
CYLINDER COMP., FRONT FORK
BW3-23170-01-00
Unavailable
11
VALVE ASSY
BW3-2330H-01-00
Unavailable
15
GUIDE, SPRING
23P-23117-00-00
Unavailable
16
NUT
3XJ-23357-L0-00
Unavailable
17
SPRING, FRONT FORK
BW3-23141-00-00
Unavailable
18
GUIDE, SPRING
BW3-23117-00-00
Unavailable
19
BOLT, CAP
BW3-23111-01-00
Unavailable
20
O-RING
3XJ-23147-L1-00
Unavailable
21
BOLT, FLANGE
90105-08134-00
Unavailable
22
PLUG
3JD-2312G-L0-00
Unavailable
23
FRONT FORK ASSY (L.H)
BW3-23102-03-00
Unavailable
24
TUBE, OUTER (L.H)
BW3-23126-00-00
Unavailable
25
INNER TUBE COMP.1
BW3-23110-01-00
Unavailable
32
CYLINDER COMP., FRONT FORK
BW3-23170-01-00
Unavailable
33
VALVE ASSY
BW3-2330H-01-00
Unavailable
37
GUIDE, SPRING
23P-23117-00-00
Unavailable
38
NUT
3XJ-23357-L0-00
Unavailable
39
SPRING, FRONT FORK
BW3-23141-00-00
Unavailable
40
GUIDE, SPRING
BW3-23117-00-00
Unavailable
41
BOLT, CAP
BW3-23111-01-00
Unavailable
42
O-RING
3XJ-23147-L1-00
Unavailable
43
PLUG
3JD-2312G-L0-00
Unavailable
44
UNDER BRACKET COMP.
BW3-23340-00-00
Unavailable
45
BRG,CYL-CAL ROLLER 131G KY
93332-00008-00
Unavailable
46
BOLT, FLANGE
90105-08134-00
Unavailable
47
COVER, LOWER 1
4KM-23123-01-00
Unavailable
48
FRONT REFLECTOR ASSY
11H-85110-01-00
Unavailable
49
NUT, CROWN
90176-05802-00
Unavailable
50
FORK SEAL KIT (ONE FORK)
BAU-W003B-00-00
Unavailable
