Description

Price

1

ROTOR, SENSOR

BW3-F517G-00-00

Unavailable

2

SCREW

90149-05030-00

$8.49

3

DISK BRAKE ASSY

1WS-2581T-01-00

$128.99

4

BOLT

90109-06329-00

$2.17

5

CALIPER ASSY (LEFT

BW3-F580T-00-00

Unavailable

6

BRAKE PAD KIT

BW3-F5805-00-00

$60.99

7

PIN, PAD

5D7-F5924-10-00

$11.99

8

SCREW, BLEED

56P-F5824-00-00

$47.99

9

. CAP

4CU-F5825-00-00

Unavailable

10

SUPPORT, PAD

5DS-F5919-00-00

$15.49

11

SOUFFLET, ETRIER

5DS-F5917-00-00

$30.99

12

CALIPER PISTON ASSY

BW3-F5802-00-00

$182.99

13

CALIPER ASSY (RIGH

BW3-F580U-00-00

Unavailable

14

BRAKE PAD KIT

BW3-F5805-00-00

$60.99

15

PIN, PAD

5D7-F5924-10-00

$11.99

16

SCREW, BLEED

56P-F5824-00-00

$47.99

17

. CAP

4CU-F5825-00-00

Unavailable

18

SUPPORT, PAD

5DS-F5919-00-00

$15.49

19

SOUFFLET, ETRIER

5DS-F5917-00-00

$30.99

20

CALIPER PISTON ASSY

BW3-F5802-00-00

$182.99

21

BOLT, WASHER BASED(4KM)

90105-10778-00

Unavailable

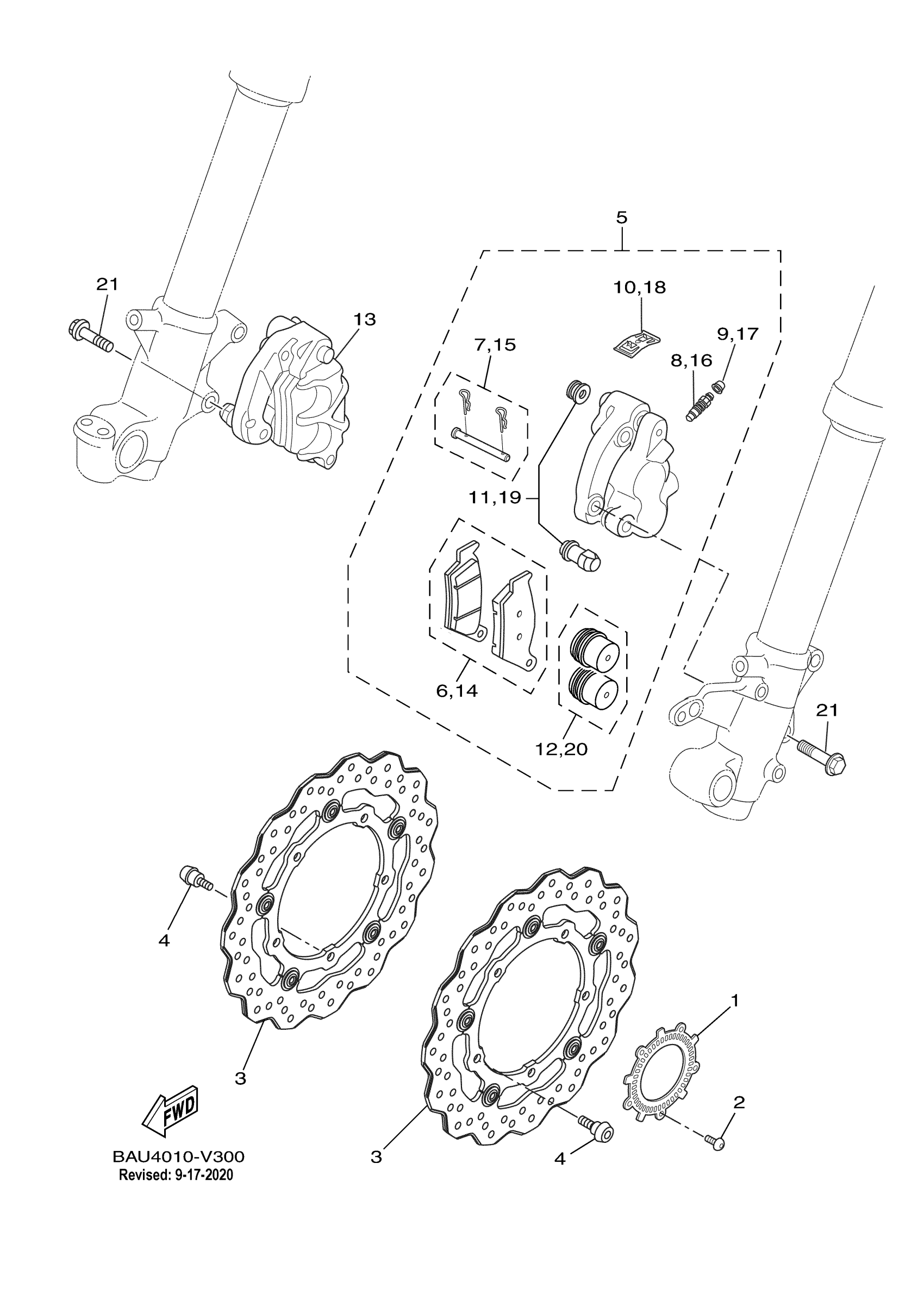

Yamaha XTZ7MW (TENERE 700) BAU11 2021 FRONT BRAKE CALIPER Diagram

ROTOR, SENSOR

SCREW

DISK BRAKE ASSY

BOLT

CALIPER ASSY (LEFT

BRAKE PAD KIT

PIN, PAD

SCREW, BLEED

. CAP

SUPPORT, PAD

SOUFFLET, ETRIER

CALIPER PISTON ASSY

CALIPER ASSY (RIGH

BRAKE PAD KIT

PIN, PAD

SCREW, BLEED

. CAP

SUPPORT, PAD

SOUFFLET, ETRIER

CALIPER PISTON ASSY

BOLT, WASHER BASED(4KM)
