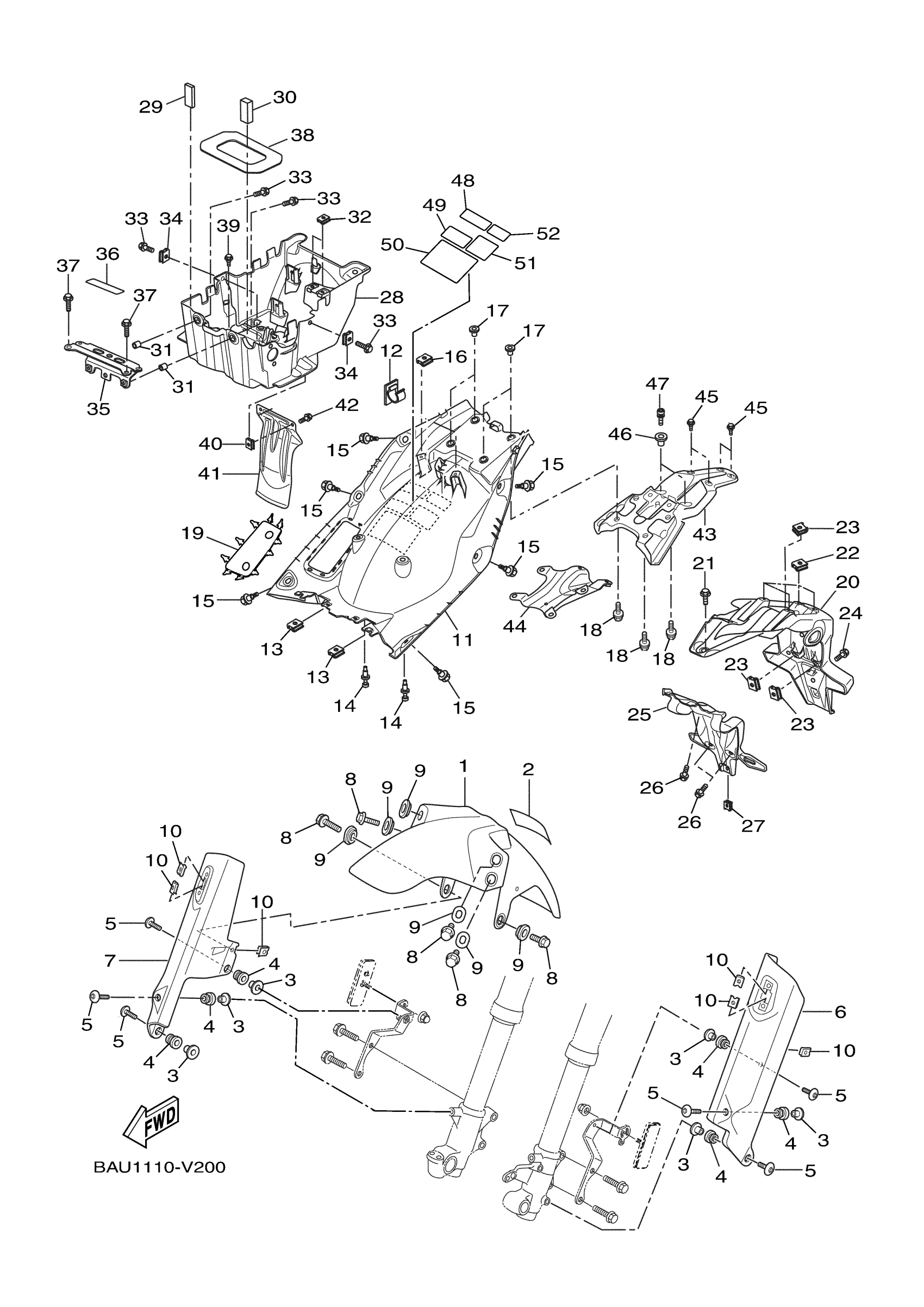

Yamaha XTZ7MW (TENERE 700) BAU11 2021 FENDER Diagram

#

Description
Price

1

FENDER, FRONT

BMB-21511-00-P0

$359.99

2

SEAL

BAU-2414G-00-00

$4.51

3

COLLAR

90387-06265-00

$9.49

4

GROMMET(53Y)

90480-12072-00

$8.49

5

BOLT,HEX. SOCKET B

90111-06155-00

$2.12

6

PROTECTOR 1

BW3-F315H-00-00

$45.99

7

PROTECTOR 2

BW3-F315J-00-00

$46.99

8

BOLT, FLANGE

90105-06170-00

$4.72

9

COLLAR

17D-21749-00-00

$16.49

10

NUT, SPRING

90183-060A6-00

$5.49

11

GUARD, MUD

BW3-F1629-00-00

$85.99

12

CLAMP(4FM)

90464-13185-00

$5.60

13

NUT, SPRING

90183-050A6-00

$8.49

14

RIVET

90269-08010-00

$3.23

15

SCREW

90149-05042-00

$3.28

16

NUT, SPRING

90183-050A6-00

$8.49

17

COLLAR

90387-08073-00

Unavailable

18

BOLT, WITH WASHER

90119-06179-00

Unavailable

19

SEAL

BW3-F1669-00-00

Unavailable

20

BRACKET, LICENSE

BW3-F1685-00-00

Unavailable

21

SCREW

90149-05042-00

$3.28

22

NUT, SPRING

90183-050A6-00

$8.49

23

NUT, SPRING

90183-050A6-00

$8.49

24

SCREW

90149-05042-00

$3.28

25

COVER, REAR FENDER

BW3-F163A-00-00

Unavailable

26

SCREW

90149-05042-00

$3.28

27

NUT, SPRING

90183-050A6-00

$8.49

28

BOX, BATTERY 1

BW3-H212B-01-00

Unavailable

29

DAMPER, PLATE

90520-06X02-00

Unavailable

30

DAMPER, PLATE

90520-10X06-00

Unavailable

31

COLLAR

90387-07015-00

Unavailable

32

NUT, SPRING(47R)

90183-04039-00

Unavailable

33

BOLT, FLANGE

95812-06014-00

Unavailable

34

NUT, SPRING

90183-060A6-00

$5.49

35

BRACKET, FENDER

BW3-21617-20-00

Unavailable

36

PROTECTOR, FUEL TANK

3HA-24141-00-00

Unavailable

37

BOLT, FLANGE

95817-06012-00

Unavailable

38

DAMPER 2

BW3-21639-00-00

Unavailable

39

SCREW

90149-05042-00

$3.28

40

NUT, SPRING

90183-050A6-00

$8.49

41

GUARD, FLAP

BW3-F1642-00-00

Unavailable

42

SCREW

90149-05045-00

Unavailable

43

STAY, FENDER 1

BW3-F1613-00-00

Unavailable

44

REINF., REAR FENDER

BW3-21671-00-00

Unavailable

45

SCREW

90149-05042-00

$3.28

46

COLLAR

90387-06X68-00

Unavailable

47

BOLT, HEXAGON SOCKET HEAD

90110-06341-00

Unavailable

48

LABEL, CAUTION

3JJ-28446-A2-00

Unavailable

49

LABEL, TIRE

BAU-21668-00-00

Unavailable

50

LABEL, NOTICE 1

BAU-2815P-00-00

Unavailable

51

PLATE, ROUTING 2

4B5-21686-01-00

Unavailable

52

LABEL, CAUTION

3SA-24877-A0-00

Unavailable
