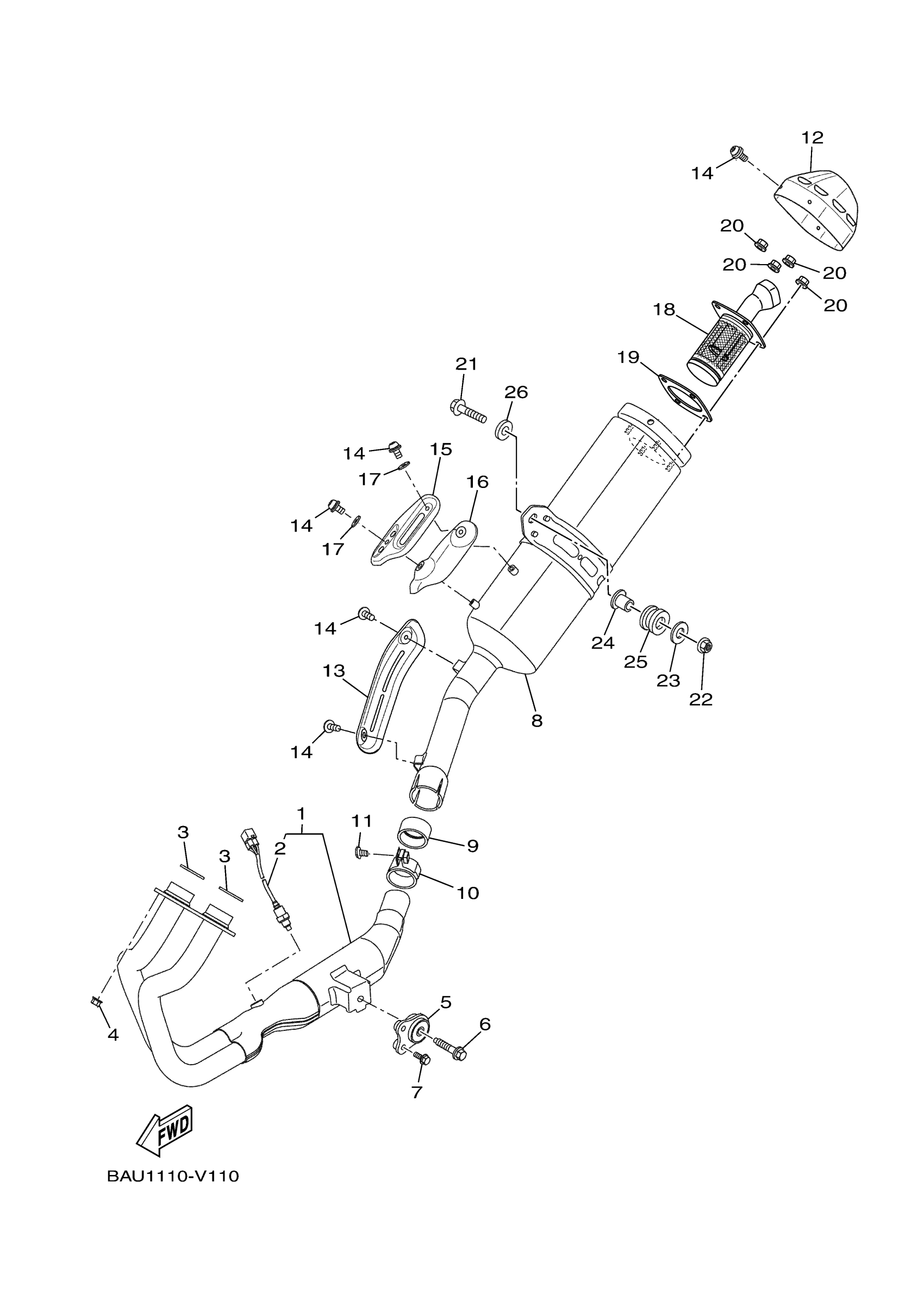

Yamaha XTZ7MW (TENERE 700) BAU11 2021 EXHAUST Diagram

#

Description
Price

1

EXHAUST PIPE ASSY 1

BAU-14610-01-00

$735.99

2

SENSOR, OXYGEN

BW3-8592A-10-00

$245.99

3

GASKET, EXHAUST PIPE

3YF-14613-01-00

$13.49

4

NUT (22U)

90179-08410-00

$9.49

5

STAY, MUFFLER 1

BW3-21445-00-00

Unavailable

6

BOLT, FLANGE

90105-08164-00

$8.49

7

BOLT, FLANGE

95814-06020-00

$8.49

8

MUFFLER 1

BAU-14711-00-00

$635.99

9

GASKET, SILENCER

B71-14755-00-00

$15.99

10

BAND, MUFFLER

5S7-14715-00-00

Unavailable

11

BOLT,SOCKET

91314-08040-00

$8.49

12

CAP

BW3-E4799-00-00

$113.99

13

PROTECTOR ASSY 1

BW3-E471C-00-00

Unavailable

14

BOLT

90111-06060-00

$4.14

15

PROTECTOR ASSY., 2

BW3-E472C-00-00

Unavailable

16

PROTECTOR, MUFFLER 3

BW3-E4738-00-00

Unavailable

17

WASHER, PROTECTOR

4BD-14766-00-00

Unavailable

18

SPARK ARRESTER ASSY

BAU-14780-00-00

Unavailable

19

GASKET, SILENCER

BAU-14755-00-00

Unavailable

20

NUT, FLANGE(7NB)

95780-06500-00

Unavailable

21

BOLT(3BC)

90111-10007-00

Unavailable

22

NUT, SELF-LOCKING

90185-10170-00

Unavailable

23

WASHER, PLATE

90201-10043-00

Unavailable

24

COLLAR (2H7)

90387-10636-00

Unavailable

25

DAMPER, FOOTREST 2

36Y-27424-01-00

Unavailable

26

COLLAR

BW3-14779-00-00

Unavailable
