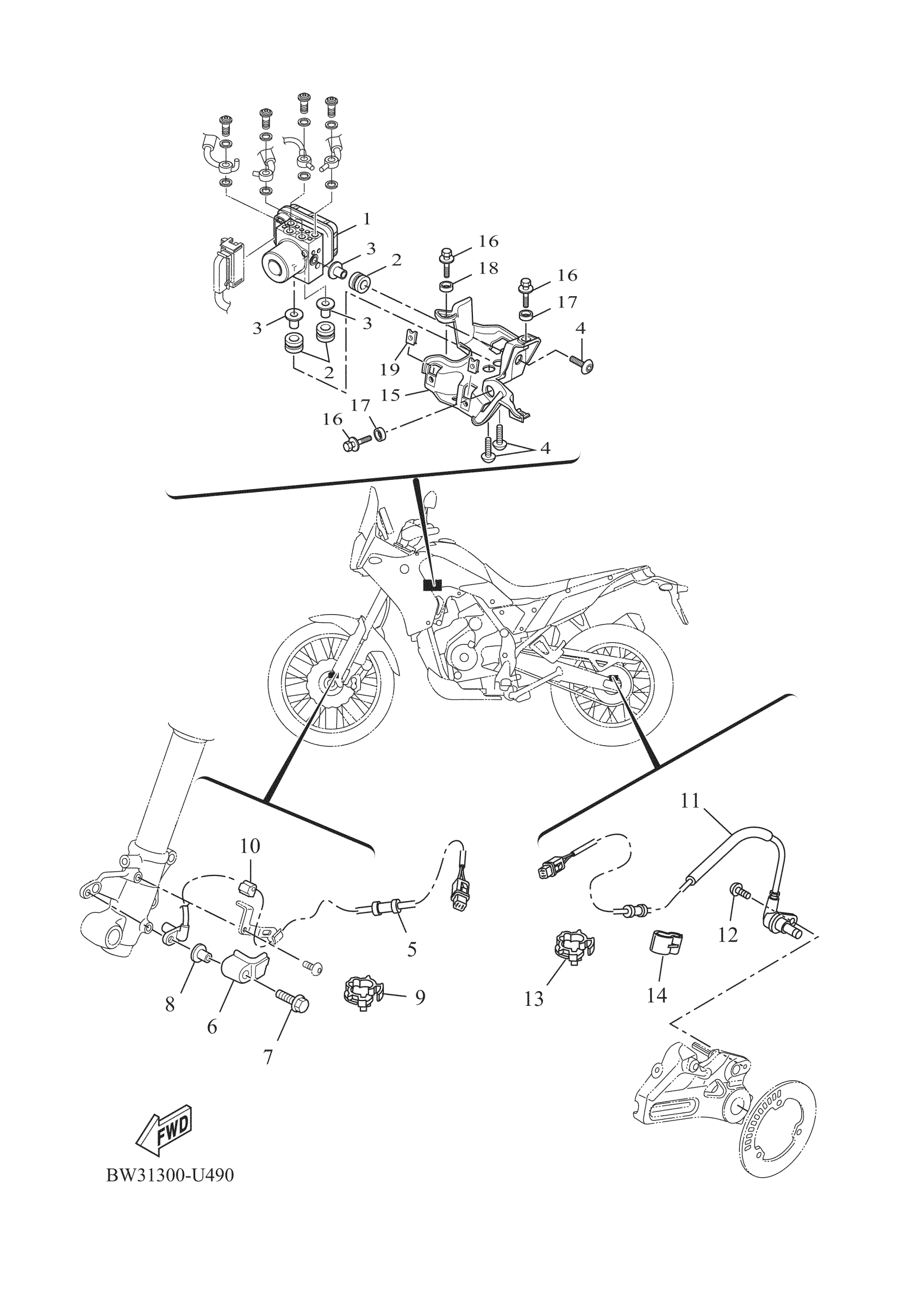

Yamaha XTZ7MW (TENERE 700) BAU11 2021 ELECTRICAL 3 Diagram

#

Description
Price

1

HYDRAULIC UNIT ASSY

BW3-85930-09-00

Unavailable

2

GROMET (3X3)

90480-14229-00

$8.49

3

COLLAR

90387-06313-00

Unavailable

4

BOLT

90111-06051-00

$5.60

5

WHEEL SENSOR ASSY, FRONT

BW3-85970-02-00

Unavailable

6

HOUSING, SENSOR FR

BW3-F517A-00-00

$16.99

7

BOLT, FLANGE

95814-06030-00

Unavailable

8

COLLAR

90387-06221-00

$4.41

9

CLAMP

90464-12013-00

$8.49

10

CLAMP(4GY)

90464-05188-00

$4.72

11

WHEEL SENSOR ASSY, REAR

BW3-85980-01-00

Unavailable

12

BOLT, FLANGE

95817-06016-00

$2.75

13

CLAMP

90464-12013-00

$8.49

14

CLAMP(4GL)

90464-10233-00

$7.49

15

BRACKET, UNIT

BW3-H5991-01-00

Unavailable

16

BOLT, WITH WASHER

90119-06209-00

Unavailable

17

COLLAR

90387-1001B-00

Unavailable

18

COLLAR

90387-06106-00

Unavailable

19

NUT, SPRING

90183-050A6-00

Unavailable
