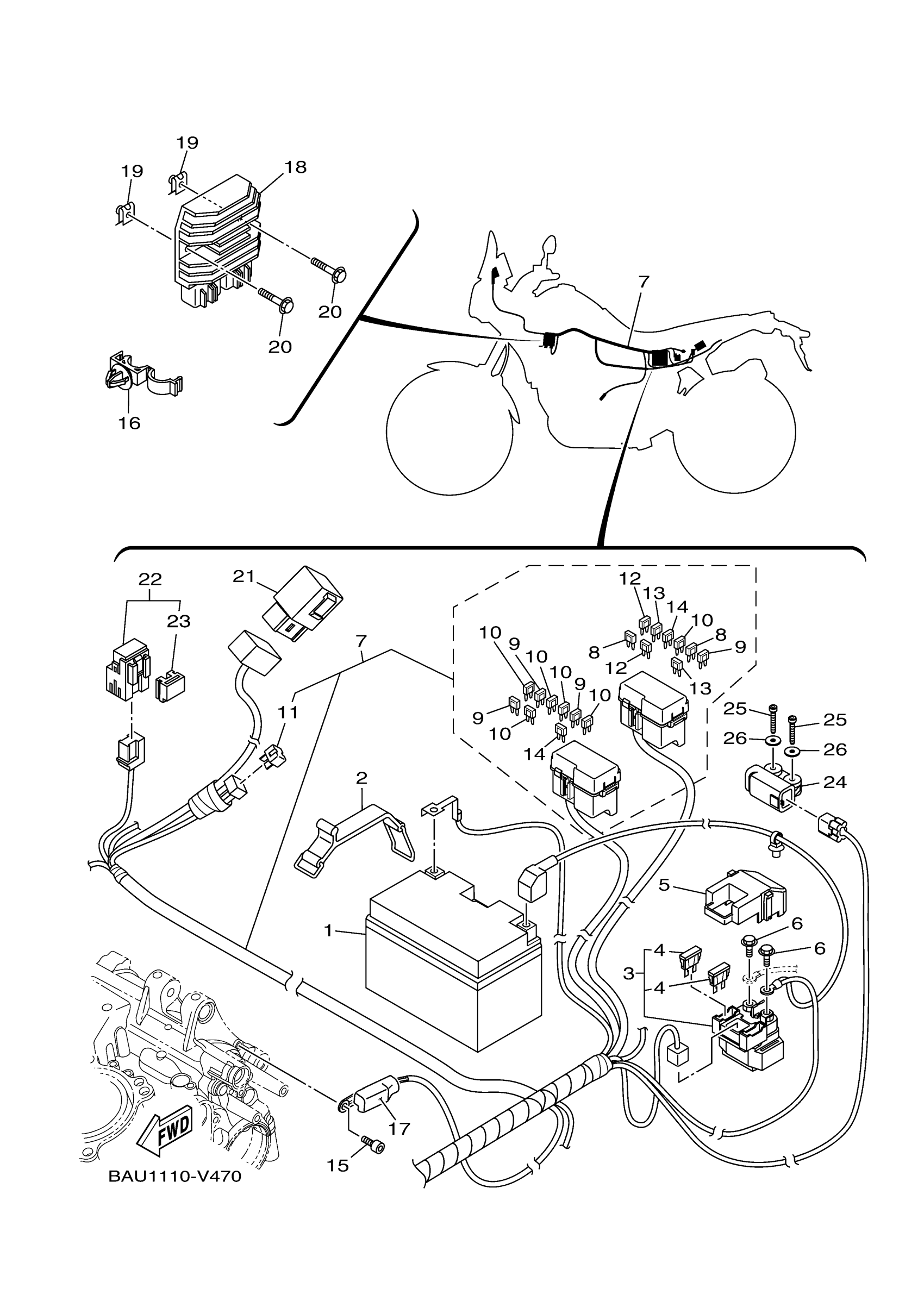

Yamaha XTZ7MW (TENERE 700) BAU11 2021 ELECTRICAL 1 Diagram

#

Description
Price

1

BATTERY YTZ10S

YTZ-10S00-00-00

Unavailable

2

BAND, BATTERY

4BP-82131-00-00

Unavailable

3

STARTER RELAY ASSY

1XC-81940-00-00

$65.99

4

FUSE (12V 30A)

1AE-82151-00-00

$7.99

5

COVER, LEAD WIRE

5SL-82119-10-00

$4.68

6

BOLT, FLANGE

95022-06008-00

$8.49

7

WIRE HARNESS ASSY

BW3-82590-20-00

$666.99

8

FUSE (2A-BL)

5JJ-82151-80-00

$7.99

9

FUSE (7.5A-BL)

5JJ-82151-00-00

$6.99

10

. FUSE (10A)

67F-82151-40-00

Unavailable

11

DIODE ASSY

3WP-81980-00-00

$22.99

12

FUSE

5JJ-82151-20-00

$7.99

13

FUSE

5JJ-82151-60-00

$7.99

14

FUSE (15A)

67F-82151-50-00

Unavailable

15

BOLT

91380-06012-00

Unavailable

16

CLAMP

90464-17003-00

Unavailable

17

COVER, TERMINAL

1WS-81916-00-00

Unavailable

18

RECTIFIER & REGULATOR ASSY

1D7-81960-10-00

Unavailable

19

NUT, SPRING

90183-060A6-00

Unavailable

20

BOLT, SMALL FLANGE

95027-06025-00

Unavailable

21

RELAY ASSY

5VK-81950-33-00

Unavailable

22

RELAY ASSY

1TP-81950-00-00

Unavailable

23

HOLDER,RELAY

5EA-81952-00-00

Unavailable

24

SENSOR, LEAN ANGLE

5PS-82576-02-00

Unavailable

25

BOLT

91312-04025-00

Unavailable

26

WASHER, PLATE

90201-04030-00

Unavailable
