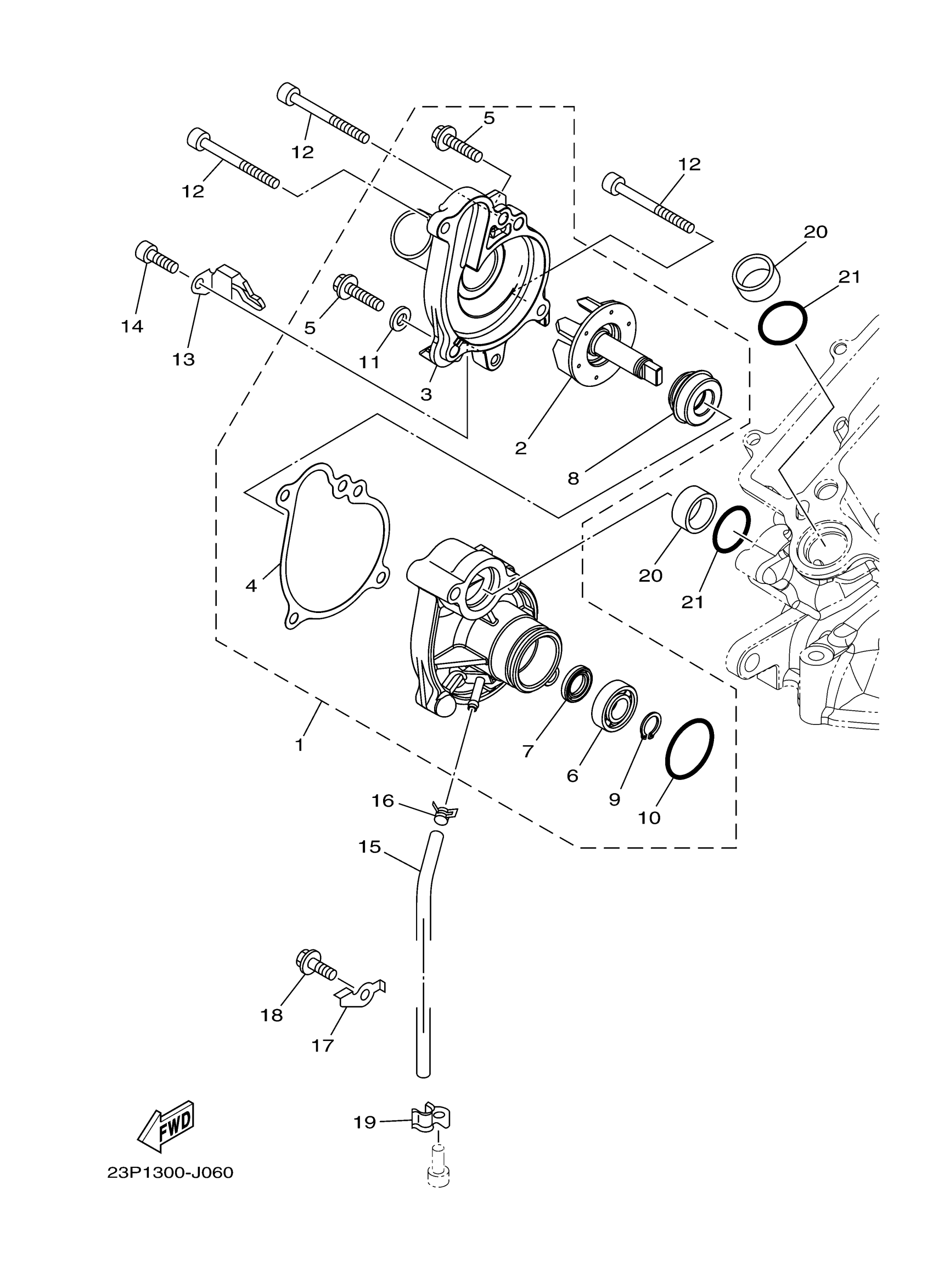

Yamaha XTZ12JL (SUPER TENERE) BP84 2018 WATER PUMP Diagram

#

Description
Price

1

WATER PUMP ASSY

23P-12420-01-00

$296.32

2

IMPELLER SHAFT ASSY

23P-12450-00-00

Unavailable

3

COVER, HOUSING

23P-12422-01-00

Unavailable

4

GASKET, HOUSING COVER 2

23P-12428-00-00

$16.24

5

BOLT, FLANGE(4KG)

95024-06025-00

$2.45

6

BRG,R-B 6001 28MM 28G KY

93306-00105-00

$23.71

7

OIL SEAL

93101-12173-00

$10.55

8

SEAL, MECHANICAL

5VK-12438-00-00

$49.64

9

CIRCLIP(10Y)

99009-12400-00

$2.87

10

O-RING (626)

93210-33133-00

$2.81

11

GASKET 256113960000

90430-06014-00

Unavailable

12

BOLT,SOCKET

91314-06055-00

$6.35

13

CLAMP

90462-08095-00

Unavailable

14

BOLT,SOCKET HEAD

91314-06012-00

$6.22

15

HOSE

90445-07030-00

Unavailable

16

CLIP

90467-070A0-00

Unavailable

17

CLAMP

90462-08084-00

Unavailable

18

BOLT, FLANGE

95814-06016-00

$1.82

19

CLAMP

90462-10059-00

Unavailable

20

PIPE, WATER

23P-12564-00-00

Unavailable

21

O-RING

93210-24001-00

Unavailable
