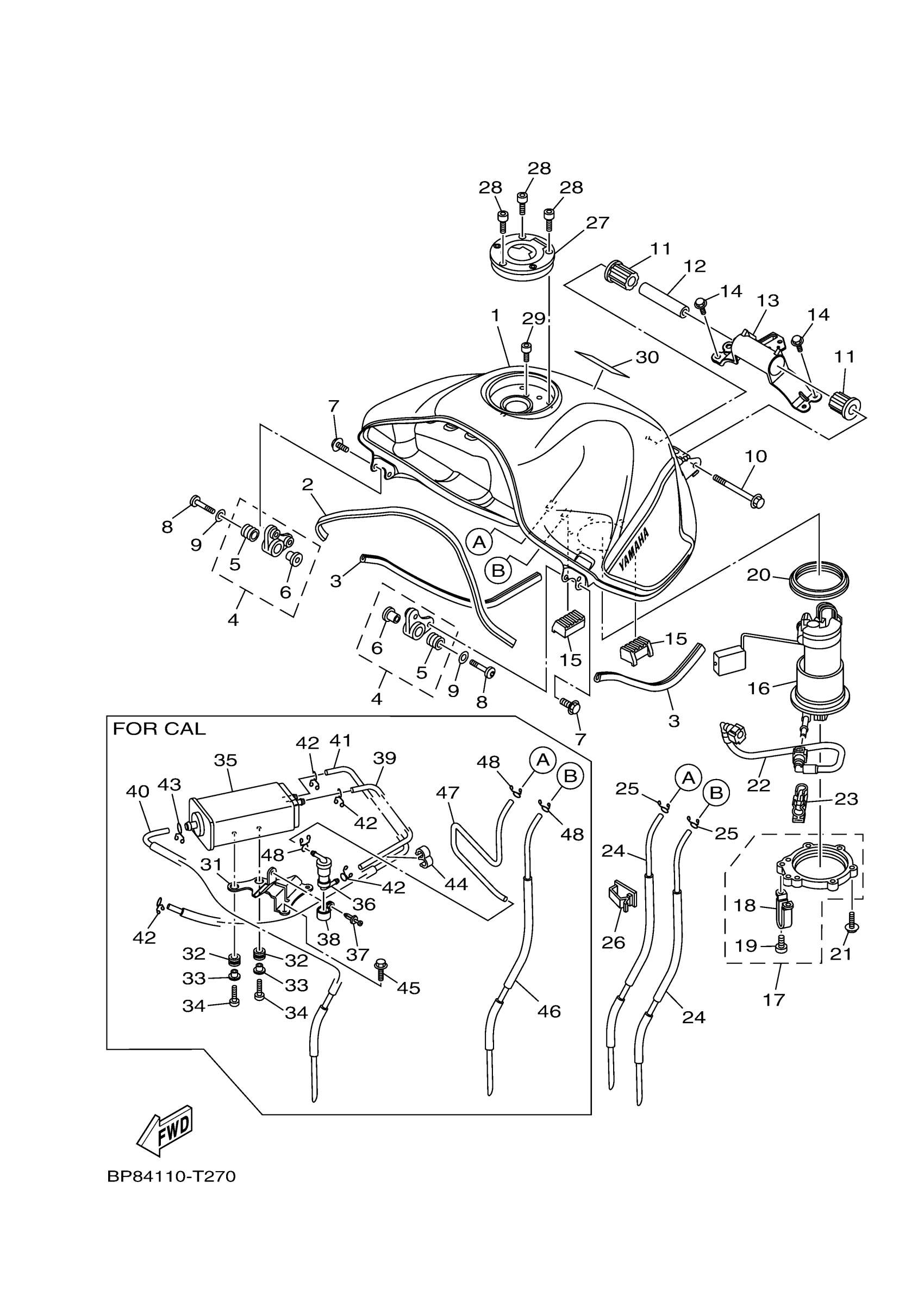

Yamaha XTZ12JL (SUPER TENERE) BP84 2018 FUEL Diagram
#
1
FUEL TANK ASSY
23P-W2410-01-07
Unavailable
2
MOLD, FUEL TANK
23P-24188-00-00
Unavailable
3
MOLD, FUEL TANK
23P-24188-10-00
Unavailable
4
TANK BRACKET ASSY
23P-24104-01-00
Unavailable
7
BOLT, WITH WASHER
90119-06200-00
Unavailable
11
DAMPER, LOCATING 3
23P-24183-00-00
Unavailable
12
COLLAR
90387-12050-00
Unavailable
13
BRACKET, TANK FITTING
23P-2413Y-00-00
Unavailable
16
FUEL PUMP COMP.
23P-13907-03-00
Unavailable
17
TANK BRACKET ASSY 2
23P-24105-00-00
Unavailable
18
BRACKET, FUEL TANK 2
2D1-24192-00-00
Unavailable
19
SCREW, BIND
98902-05008-00
Unavailable
20
O-RING
19B-24486-01-00
Unavailable
21
BOLT, HEXAGON SOCKET HEAD
90110-05028-00
Unavailable
22
PIPE, FUEL 1
23P-13971-01-00
Unavailable
23
CLAMP
90464-16005-00
Unavailable
26
CLAMP
90464-13012-00
Unavailable
27
CAP ASSY
39P-24602-00-00
Unavailable
28
BOLT, HEXAGON SOCKET HEAD(1FM)
90110-05112-00
Unavailable
29
BOLT
91312-05010-00
Unavailable
30
LABEL, WARNING GENERAL INFO.
29P-2816R-01-00
Unavailable
31
BRACKET, CANISTOR
23P-2419F-00-00
Unavailable
32
GROMMET (462)
90480-13018-00
Unavailable
33
COLLAR(42G)
90387-062L2-00
Unavailable
34
BOLT, BUTTON HEAD
92012-06016-00
Unavailable
35
CANISTER ASSY
5PX-24170-00-00
Unavailable
36
ROLL OVER VALVE ASSY
2C0-24180-00-00
Unavailable
37
RIVET
90269-05001-00
Unavailable
38
CLAMP
90464-15014-00
Unavailable
39
PIPE 4
23P-24314-00-00
Unavailable
40
PIPE 5
23P-24315-00-00
Unavailable
41
PIPE 6
23P-24316-00-00
Unavailable
42
CLIP
90467-090A2-00
Unavailable
43
CLIP
90467-100A1-00
Unavailable
44
CLAMP(6M7)
90464-09M31-00
Unavailable
45
BOLT, FLANGE
95817-06012-00
Unavailable
46
PIPE, OVERFLOW
23P-24318-00-00
Unavailable
47
PIPE 3
23P-24313-00-00
Unavailable
48
CLIP
90467-090A2-00
Unavailable
