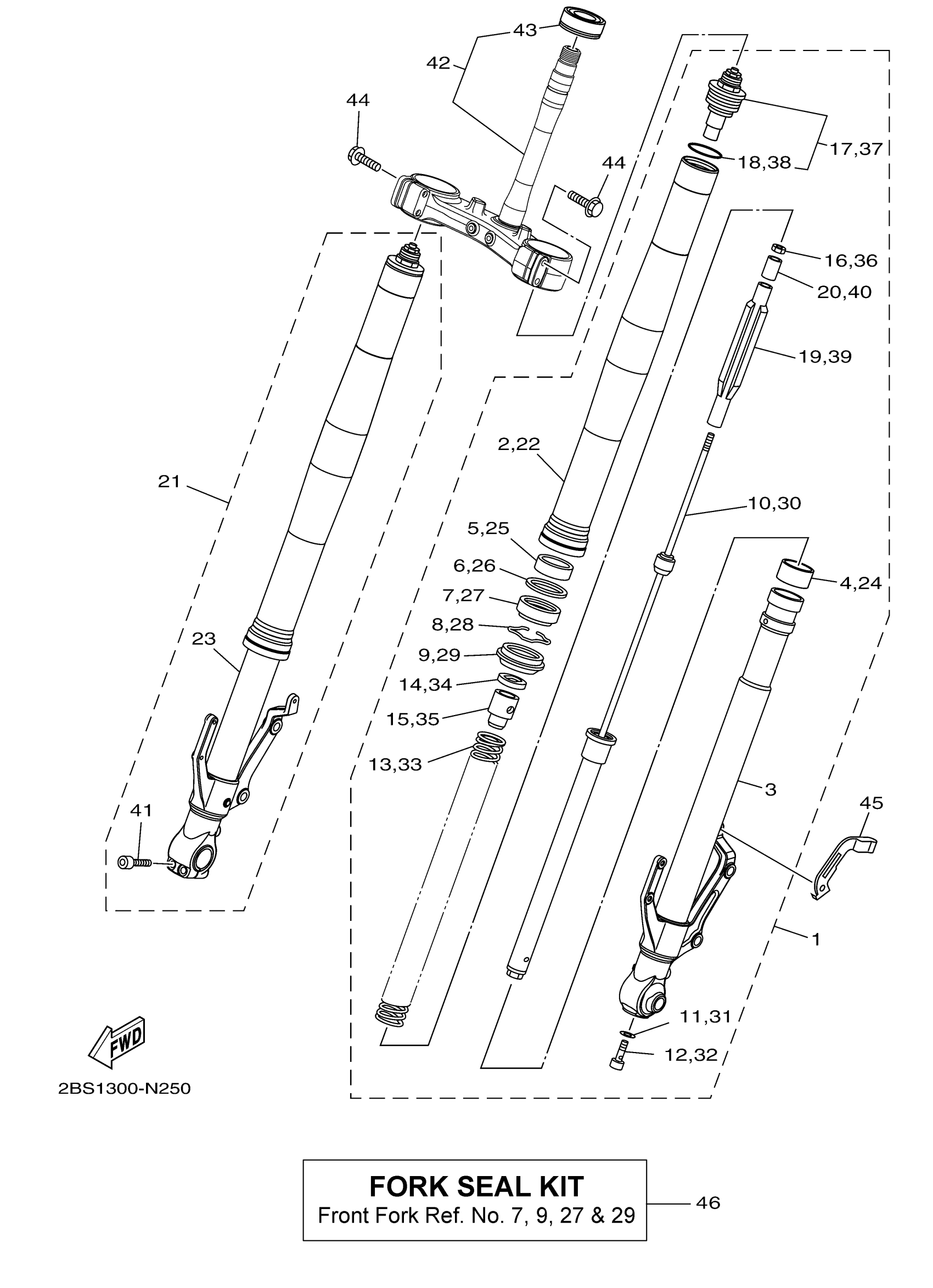

Yamaha XTZ12JL (SUPER TENERE) BP84 2018 FRONT FORK Diagram
#
Description
Price
1
FRONT FORK ASSY (L.H)
2BS-23102-20-00
Unavailable
2
TUBE, OUTER 2
2BS-23136-20-00
Unavailable
3
INNER TUBE COMP.1
23P-23110-00-00
Unavailable
12
BOLT, HEXAGON SOCKET HEAD
5UX-23181-00-00
Unavailable
16
NUT
3LC-23357-00-00
Unavailable
17
BOLT, CAP
5SL-23111-41-00
Unavailable
18
O-RING
3XJ-23147-L0-00
Unavailable
19
GUIDE, SPRING
23P-23117-00-00
Unavailable
20
COLLAR
23P-23113-00-00
Unavailable
21
FRONT FORK ASSY (R.H)
2BS-23103-20-00
Unavailable
22
TUBE, OUTER 2
2BS-23136-20-00
Unavailable
23
INNER TUBE COMP.2
23P-23120-00-00
Unavailable
32
BOLT, HEXAGON SOCKET HEAD
5UX-23181-00-00
Unavailable
36
NUT
3LC-23357-00-00
Unavailable
37
BOLT, CAP
5SL-23111-41-00
Unavailable
38
O-RING
3XJ-23147-L0-00
Unavailable
39
GUIDE, SPRING
23P-23117-00-00
Unavailable
40
COLLAR
23P-23113-00-00
Unavailable
41
BOLT,SOCKET
91314-08040-00
Unavailable
42
UNDER BRACKET COMP.
23P-23340-00-00
Unavailable
43
BEARING(4SR)
93332-00081-00
Unavailable
44
BOLT, FLANGE(4KG)
95024-08040-00
Unavailable
45
HOLDER, BRAKE HOSE 1
23P-25875-00-00
Unavailable
46
FORK SEAL KIT (TWO FORKS)
4PU-W003B-00-00
Unavailable
