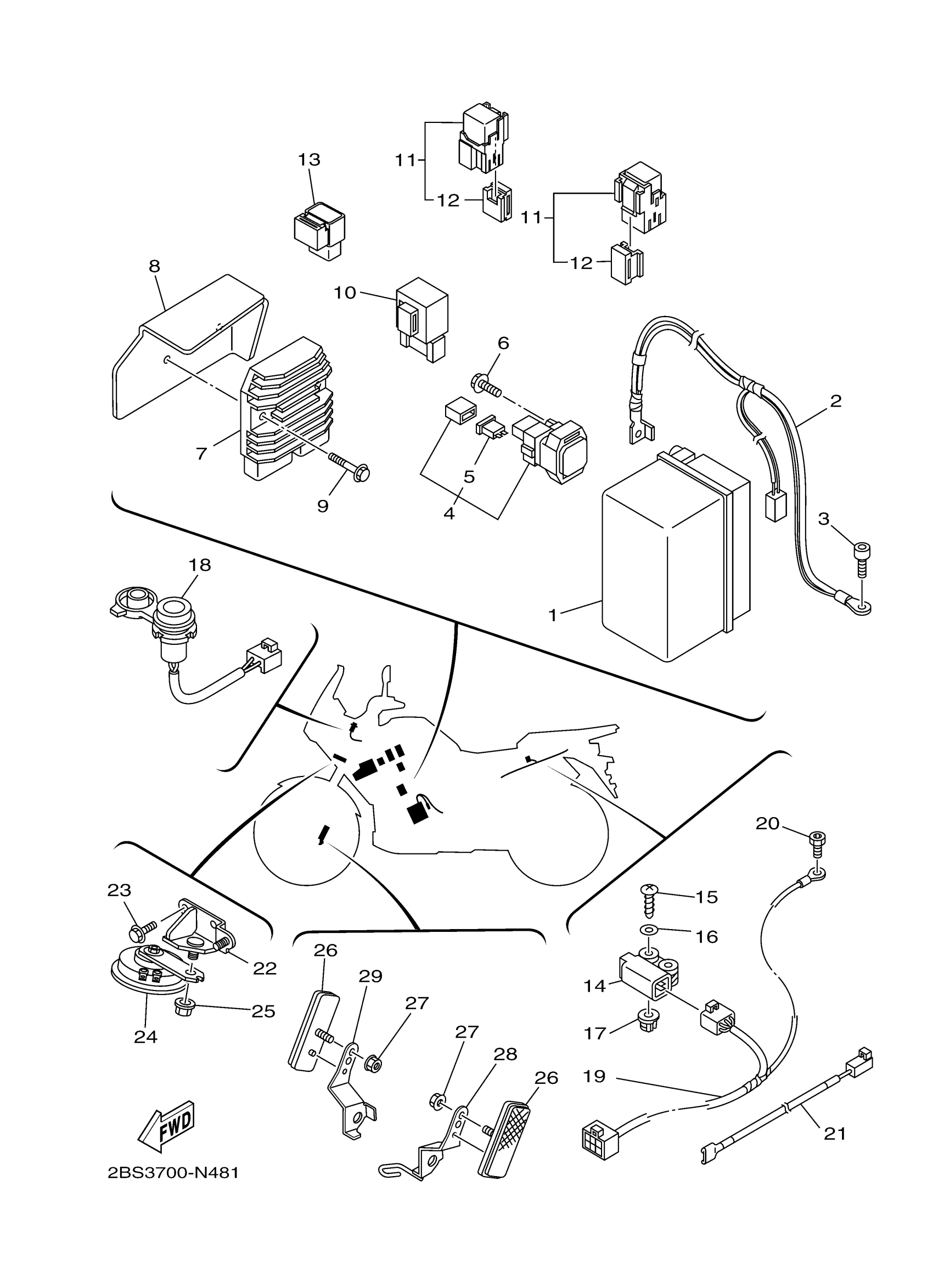

Yamaha XTZ12JL (SUPER TENERE) BP84 2018 ELECTRICAL 2 Diagram

#

Description
Price

1

BATTERY YTZ12S

YTZ-12S00-00-00

Unavailable

2

WIRE, MINUS LEAD

23P-82116-00-00

Unavailable

3

BOLT,SOCKET

91317-06012-00

$8.49

4

STARTER RELAY ASSY (RC19-018)

4YR-81940-02-00

$140.99

5

FUSE (12V 30A)

1AE-82151-00-00

$7.99

6

BOLT, FLANGE

95022-06008-00

$8.49

7

RECTIFIER & REGULATOR ASSY

1D7-81960-01-00

$323.99

8

PLATE, RECTIFIER FITTING

23P-81975-00-00

Unavailable

9

BOLT, FLANGE

95817-06030-00

$4.29

10

RELAY ASSY

5VK-81950-43-00

$65.99

11

RELAY ASSY (1ST-00)

1ST-81950-00-00

$18.49

12

HOLDER, RELAY

5JJ-81952-00-00

$9.99

13

RELAY ASSY

5JJ-81950-11-00

$28.99

14

SENSOR, LEAN ANGLE

5VU-82576-03-00

$97.99

15

SCREW, TAPPING

97702-40025-00

Unavailable

16

WASHER, PLATE

90201-04030-00

Unavailable

17

NUT, ADJUSTING

4B4-84334-00-00

Unavailable

18

TERMINAL COMP.

23P-8254B-00-00

Unavailable

19

WIRE, SUB LEAD

23P-82509-00-00

Unavailable

20

SCREW, HEXAGON (18V)

90153-06044-00

Unavailable

21

WIRE, LEAD

23P-82541-00-00

Unavailable

22

STAY, HORN

2BS-8332P-00-00

Unavailable

23

BOLT, FLANGE

95817-06012-00

Unavailable

24

HORN

2BS-83371-00-00

Unavailable

25

NUT, FLANGE

95702-06500-00

Unavailable

26

FRONT REFLECTOR ASSY

11H-85110-01-00

Unavailable

27

NUT, FLANGE

95702-05500-00

Unavailable

28

BRACKET, REFLECTOR 1

23P-85112-01-00

Unavailable

29

BRACKET, REFLECTOR 2

23P-85122-01-00

Unavailable
