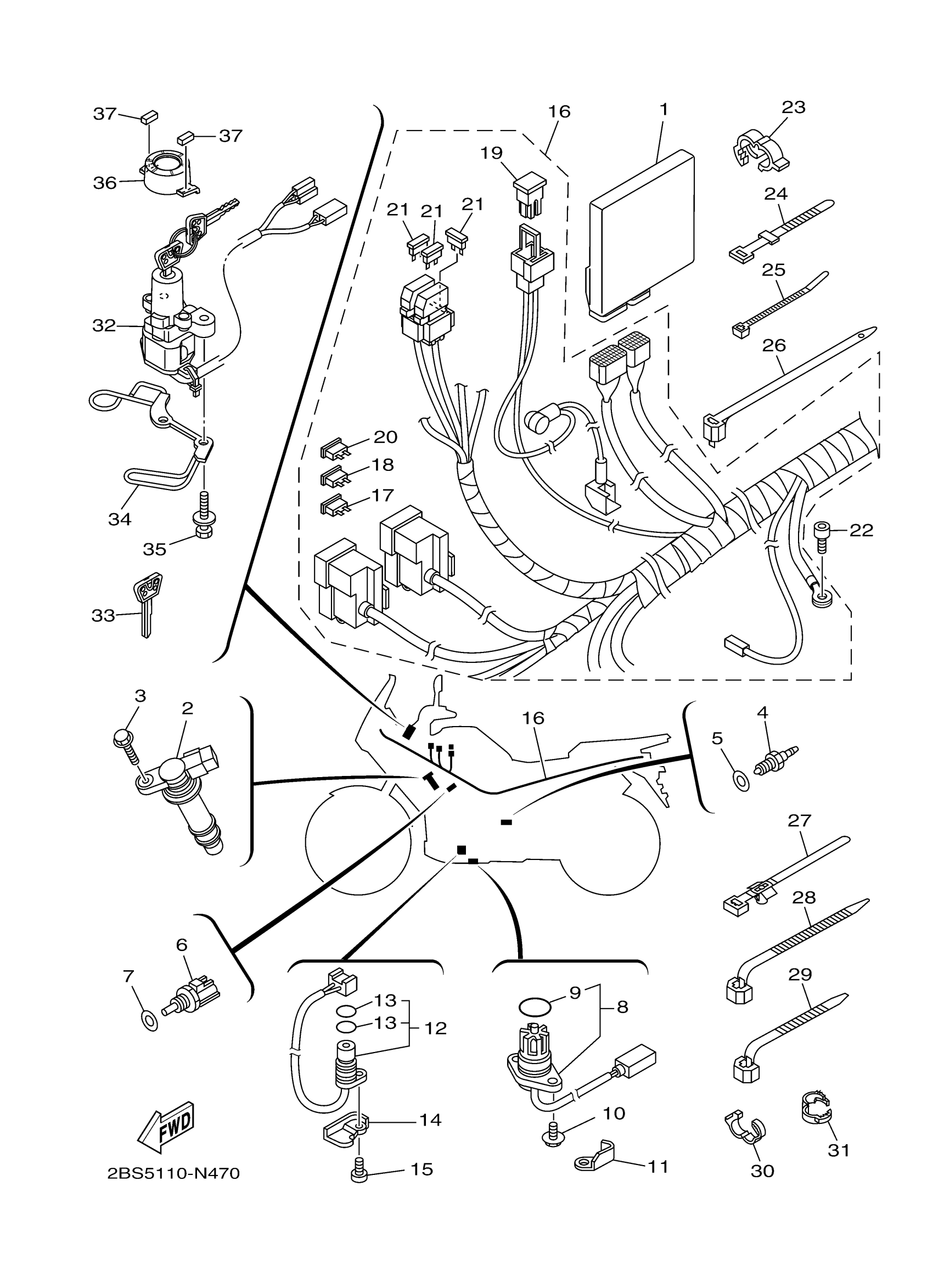

Yamaha XTZ12JL (SUPER TENERE) BP84 2018 ELECTRICAL 1 Diagram

#

Description
Price

1

ENGINE CONTROL UNI

2BS-8591A-30-00

Unavailable

2

IGNITION COIL ASSY

23P-82310-00-00

$221.99

3

BOLT, FLANGE

90105-06197-00

$3.35

4

NEUTRAL SWITCH ASSY

3GB-82540-01-00

$58.99

5

GASKET (1KH,1.0T)

90430-10148-00

$5.60

6

THERMOSENSOR ASSY

5YP-85790-00-00

$64.99

7

WASHER, PLATE

90201-12790-00

$9.49

8

OIL LEVEL GAUGE ASSY

23P-85720-00-00

Unavailable

9

O-RING

5VY-8A8E0-00-00

$14.49

10

BOLT, FLANGE

95022-06016-00

$3.62

11

CLAMP

90465-10040-00

Unavailable

12

PICK-UP ASSY

23P-81670-01-00

$134.99

13

O-RING 1

5VY-8A8E1-00-00

$6.99

14

PLATE

23P-15589-00-00

$6.99

15

BOLT,SOCKET

91317-06016-00

$1.25

16

WIRE HARNESS ASSY

2BS-82590-10-00

Unavailable

17

FUSE (7.5A-BL)

5JJ-82151-00-00

Unavailable

18

FUSE

5JJ-82151-20-00

Unavailable

19

FUSE (50A)

5JW-82151-10-00

Unavailable

20

. FUSE (3A)

67F-82151-30-00

Unavailable

21

FUSE

1MC-82151-00-00

Unavailable

22

BOLT,SOCKET

91317-06012-00

Unavailable

23

CLAMP

90464-16003-00

Unavailable

24

BAND, SWITCH CORD

437-83936-01-00

Unavailable

25

CLAMP

90465-10098-00

Unavailable

26

CLAMP

90464-55001-00

Unavailable

27

CLAMP

90464-34002-00

Unavailable

28

CLAMP(4FM)

90464-15195-00

Unavailable

29

CLAMP(4FM)

90464-15195-00

Unavailable

30

CLAMP

90464-26001-00

Unavailable

31

CLAMP

90464-16001-00

Unavailable

32

MAIN SWITCH STEERING LOCK

2BS-82501-11-00

Unavailable

33

BLANK KEY

4BH-82511-09-00

Unavailable

34

GUIDE, CABLE

2BS-23389-00-00

Unavailable

35

BOLT

90109-08196-00

Unavailable

36

COVER, MAIN SWITCH

3P6-82568-00-00

Unavailable

37

DAMPER

3C3-28372-00-00

Unavailable
