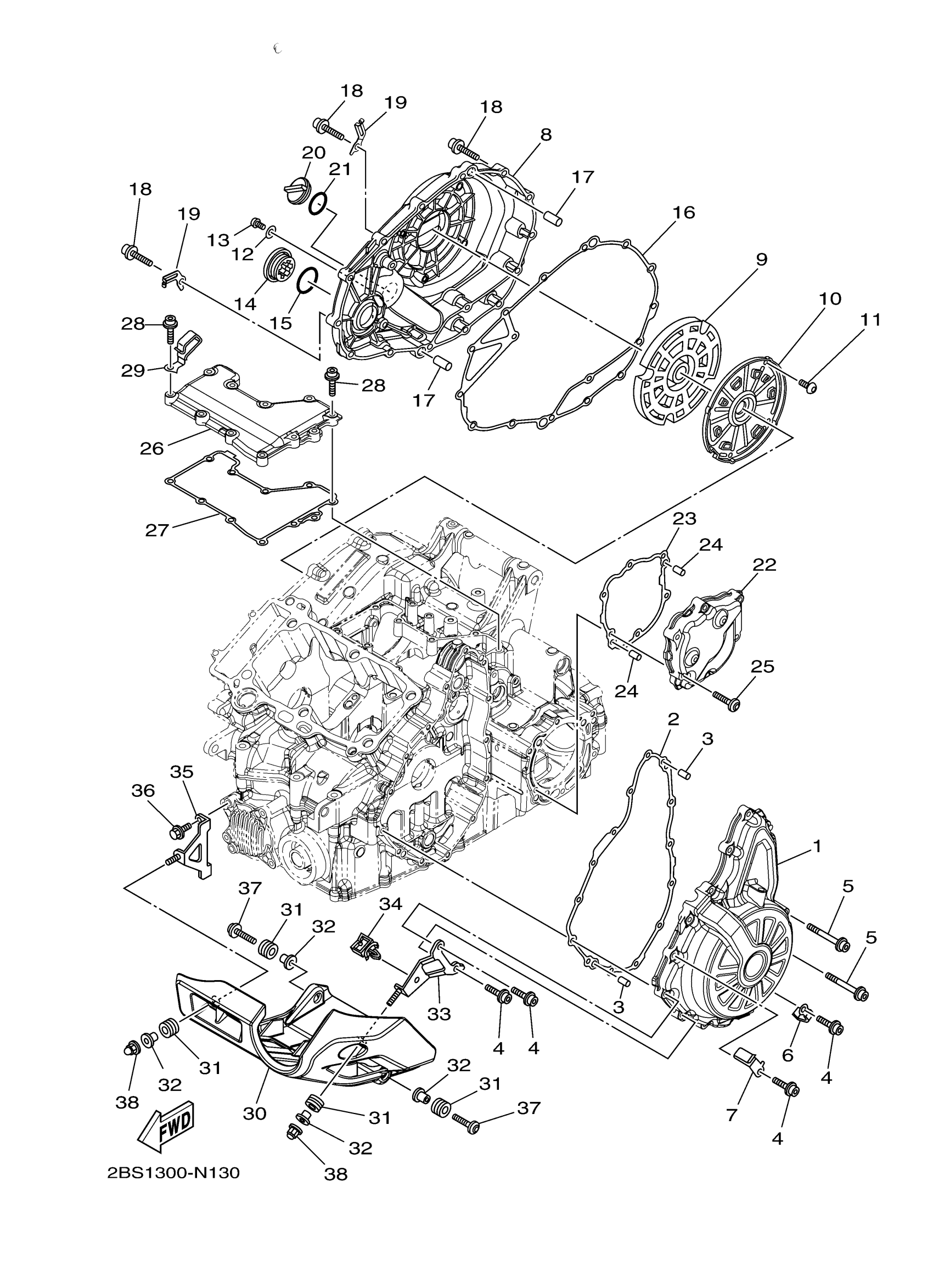

Yamaha XTZ12JL (SUPER TENERE) BP84 2018 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE 1

23P-15411-00-00

Unavailable

2

GASKET, CRANKCASE COVER 1

23P-15451-00-00

$27.99

3

PIN, DOWEL

99530-08012-00

Unavailable

4

BOLT, HEXAGON SOCKET HEAD

90110-06387-00

$4.29

5

BOLT, HEXAGON SOCKET HEAD

90110-06337-00

$2.55

6

CLAMP

90462-08089-00

$4.99

7

BRACKET

23P-15199-00-00

Unavailable

8

COVER, CRANKCASE 2

23P-15421-01-00

Unavailable

9

DAMPER 1

23P-15316-00-00

Unavailable

10

COVER

23P-15492-00-00

Unavailable

11

SCREW

90149-06156-00

$8.49

12

. GASKET

90430-08143-00

Unavailable

13

BOLT,HEX. SOCKET BUTTON

90111-08075-00

$5.60

14

PLUG, STRAIGHT SCREW

90340-32004-00

$29.99

15

O-RING (341)

93210-32172-00

$7.49

16

GASKET, CRANKCASE COVER 2

23P-15461-00-00

Unavailable

17

PIN, DOWEL(72M)

93610-20189-00

Unavailable

18

BOLT, HEXAGON SOCKET HEAD

90110-06388-00

Unavailable

19

CLAMP

90465-08062-00

Unavailable

20

PLUG, OIL LEVEL

BAT-15362-00-00

Unavailable

21

O-RING(1KT)

93210-27778-00

Unavailable

22

COVER, CRANKCASE 3

23P-15431-10-00

Unavailable

23

GASKET, CRANKCASE COVER 3

23P-15462-00-00

Unavailable

24

PIN, DOWEL

99530-08012-00

Unavailable

25

SCREW

90149-06172-00

Unavailable

26

COVER, GENERATOR

23P-15415-00-00

Unavailable

27

GASKET 1

23P-15455-00-00

Unavailable

28

BOLT, HEXAGON SOCKET HEAD

90110-06349-00

Unavailable

29

CLAMP

90462-08085-00

Unavailable

30

PROTECTOR

23P-15491-00-00

Unavailable

31

GROMMET(4FM)

90480-12596-00

Unavailable

32

COLLAR

90387-06265-00

Unavailable

33

STAY 1

23P-15771-00-00

Unavailable

34

CLAMP

90464-23199-00

Unavailable

35

STAY 2

23P-15772-00-00

Unavailable

36

BOLT, FLANGE

90105-06066-00

Unavailable

37

SCREW

90149-06328-00

Unavailable

38

NUT, CROWN (35R)

90176-06047-00

Unavailable
