2017 Yamaha Super Tenere (XTZ12HT) Steering Diagram

← All diagrams

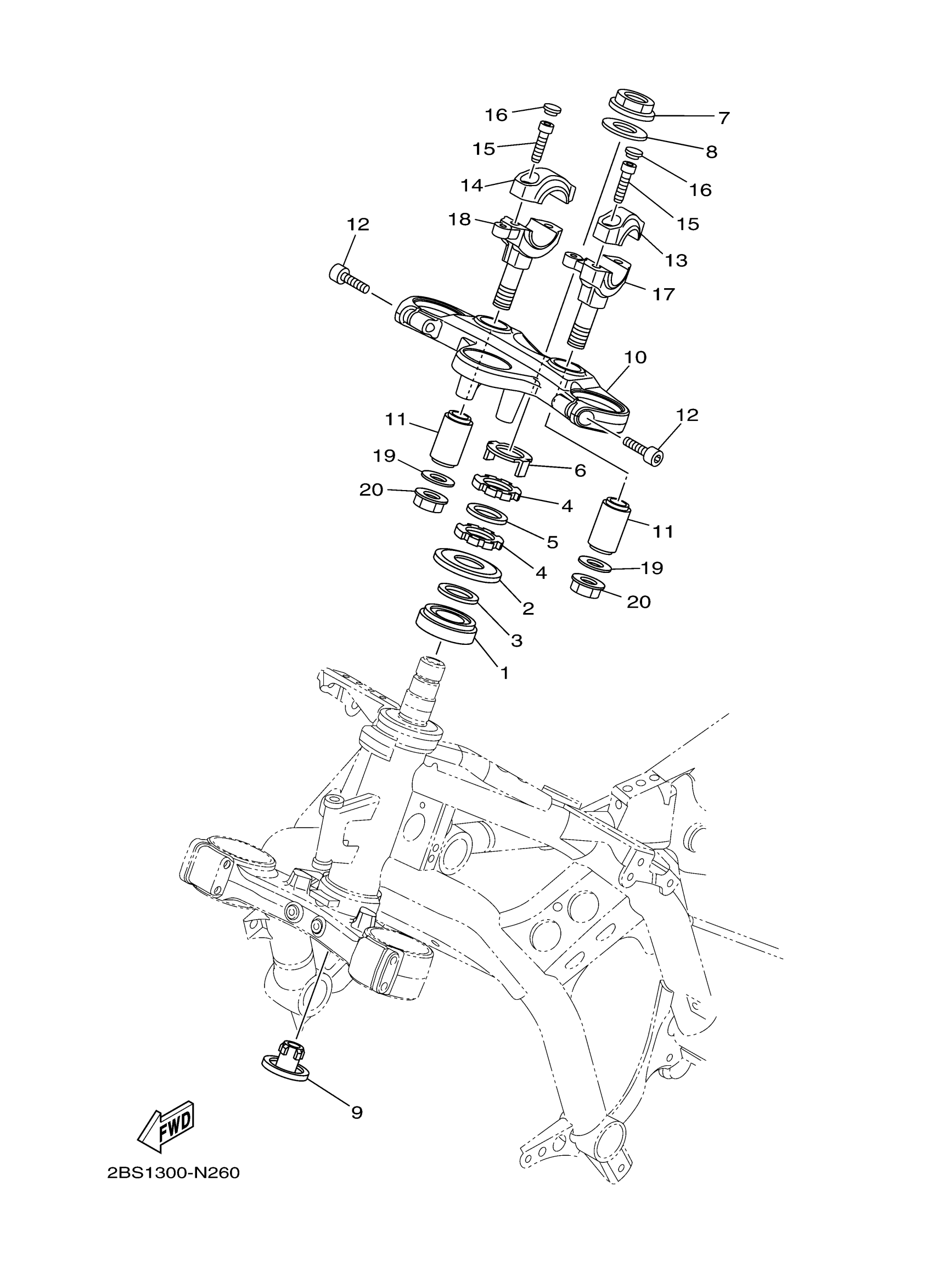

Find the part on the Steering diagram for your 2017 Yamaha Super Tenere (XTZ12HT), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2017 Yamaha Super Tenere (XTZ12HT) Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BEARING(4EW)

93332-00078-00

1
Out of stock

2

COVER, BALL RACE 2

23P-23416-00-00

1
Out of stock

3

WASHER, PLATE(4GY)

90201-282R3-00

1
Out of stock

4

NUT

90179-28011-00

—
Out of stock

5

WASHER, PLATE(4GY)

90202-28216-00

1
Out of stock

6

WASHER, SPECIAL

4GY-23418-00-00

—
Out of stock

7

NUT

2BS-23357-00-00

—
Out of stock

8

WASHER, PLATE

90201-25019-00

1
Out of stock

9

COVER, LOWER 1

4KM-23123-01-00

1

$12.27

In stock

10

CROWN, HANDLE

2BS-23435-00-00

—
Out of stock

11

HOLDER, DAMPER

5VK-23434-00-00

—
Out of stock

12

91312-08030

91312-08030-00

1

$6.31

In stock

13

HOLDER, HANDLE UPP

2BS-23441-00-00

—
Out of stock

14

HOLDER, HANDLE UPP

2BS-2344A-00-00

—
Out of stock

15

91312-08030

91312-08030-00

1

$6.31

In stock

16

PLUG(42X)

90338-08163-00

—
Out of stock

17

HOLDER 1

2BS-24847-00-00

—
Out of stock

18

HOLDER 2

2BS-24848-00-00

—
Out of stock

19

WASHER, PLATE(3GM)

90201-106M5-00

—

$6.92

In stock

20

NUT, S/L FLANGE

95602-10200-00

—

$2.29

In stock
