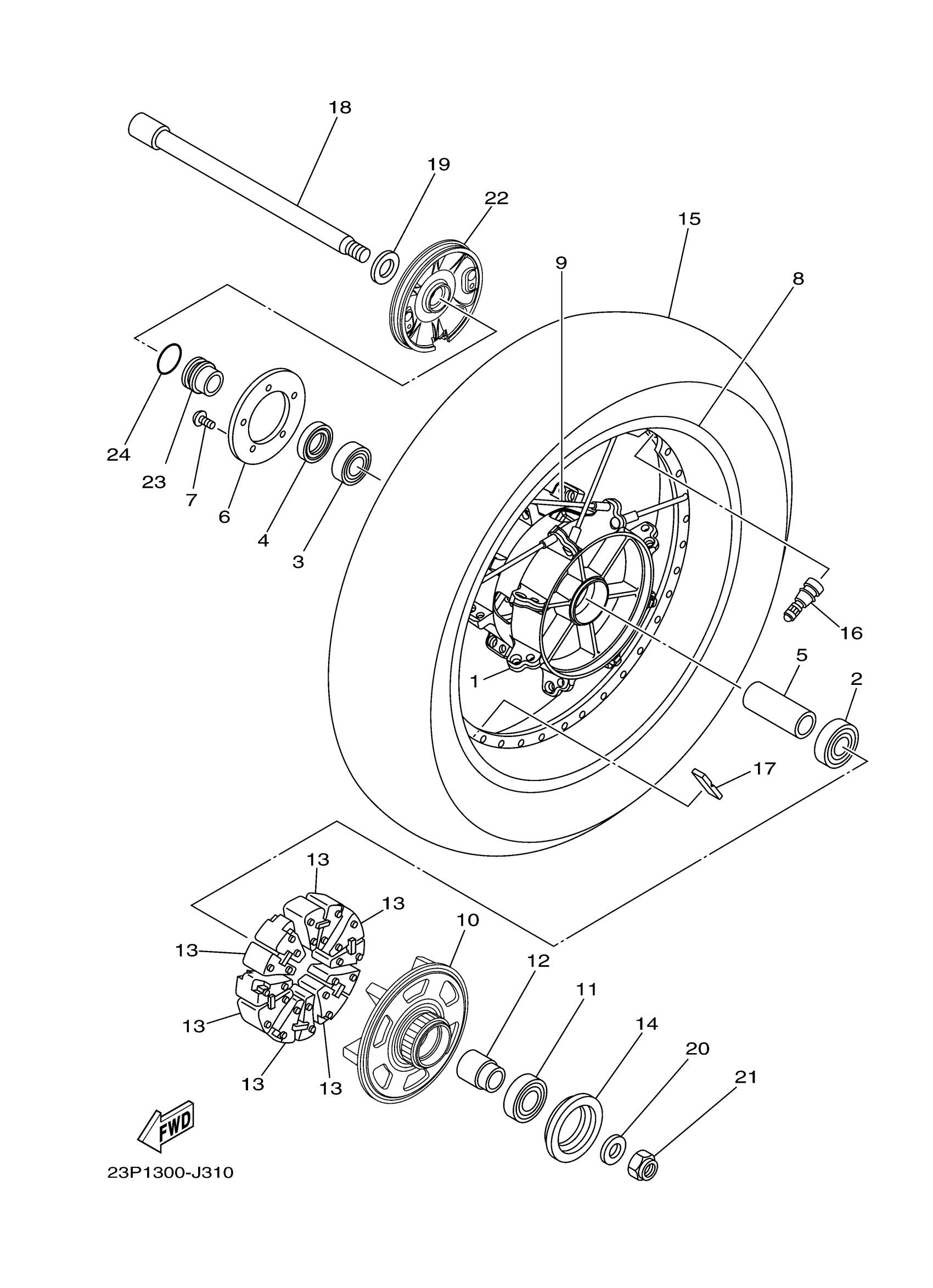

Yamaha XTZ12HT (SUPER TENERE) 2BST0 2017 REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR

23P-25311-00-00

Unavailable

2

BEARING

93306-27212-00

$61.49

3

BEARING

93306-07208-00

$32.16

4

OIL SEAL

93106-28043-00

$11.08

5

SPACER, BEARING

23P-25317-00-00

$24.48

6

ROTOR, SENSOR

2S3-2517G-00-00

$48.73

7

SCREW

90149-05030-00

$1.99

8

RIM

94440-17008-00

Unavailable

9

SPOKE SET, REAR

23P-25304-00-00

$129.67

10

CLUTCH, HUB

23P-25366-00-00

$241.91

11

BEARING

93306-00521-00

$53.05

12

COLLAR, WHEEL

23P-25377-00-00

Unavailable

13

DAMPER

5JW-25364-00-00

$21.52

14

SEAL, HUB DUST

5JW-25319-00-00

$29.98

15

TIRE (150/70R17 M/C 69V)

94115-17009-00

$394.33

16

VALVE, RIM(2GH)

93900-00030-00

Unavailable

17

BALANCER, WHEEL

23P-25398-00-00

Unavailable

18

AXLE, WHEEL

23P-25381-00-00

Unavailable

19

WASHER, PLATE

90201-22014-00

Unavailable

20

WASHER, PLATE

90201-18013-00

Unavailable

21

NUT, SELF-LOCKING

90185-18009-00

Unavailable

22

HOUSING, SENSOR REAR

23P-2537A-00-00

Unavailable

23

COLLAR, WHEEL

23P-25183-00-00

Unavailable

24

O-RING

93210-26668-00

Unavailable
