2017 Yamaha Super Tenere (XTZ12HT) Frame Diagram

← All diagrams

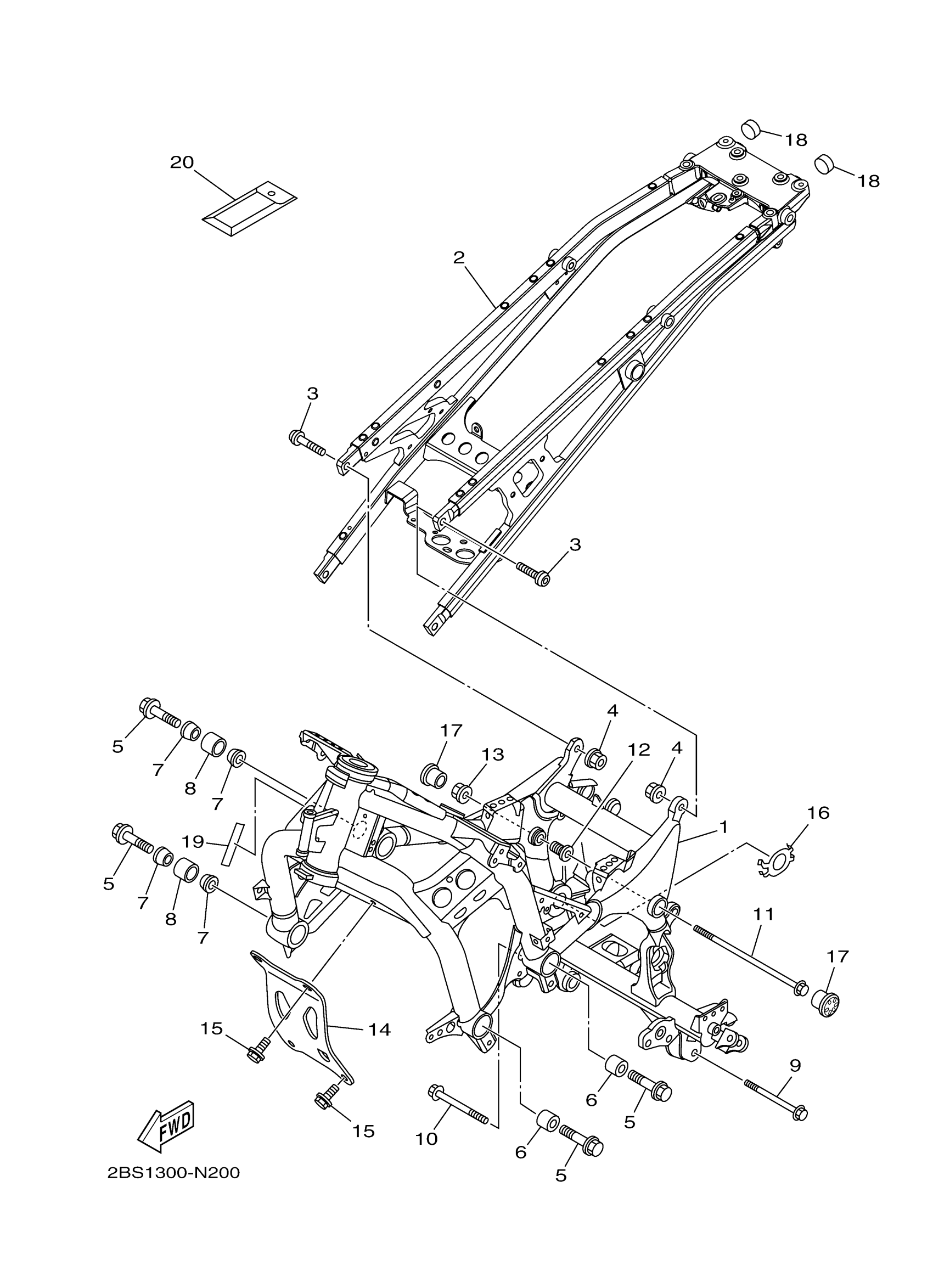

Find the part on the Frame diagram for your 2017 Yamaha Super Tenere (XTZ12HT), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2017 Yamaha Super Tenere (XTZ12HT) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME COMP.

23P-21110-01-00

1
Out of stock

2

REAR FRAME COMP.

2BS-21190-10-00

—
Out of stock

3

SCREW

90149-10003-00

1
Out of stock

4

NUT, S/L FLANGE

95602-10200-00

1

$2.29

In stock

5

BOLT, FLANGE

90105-12077-00

—
Out of stock

6

COLLAR

23P-21116-00-00

—
Out of stock

7

BOSS, ENGINE MOUNT

23P-21414-00-00

—
Out of stock

8

BOSS, ENGINE MOUNT

23P-21424-00-00

—
Out of stock

9

BOLT, FLANGE

90105-10075-00

1
Out of stock

10

BOLT, FLANGE

90105-10175-00

1

$8.40

In stock

11

BOLT, FLANGE

90105-10380-00

1
Out of stock

12

BOLT, ENGINE ADJUSTING

23P-21495-00-00

—
Out of stock

13

NUT

90179-10028-00

1
Out of stock

14

STAY, ENGINE 4

2BS-21318-00-00

—
Out of stock

15

BOLT, FLANGE

95812-12025-00

1

$6.62

In stock

16

PLATE 1

23P-2191B-00-00

—

$5.95

In stock

17

CAP, MAIN PIPE

2BS-2111A-00-00

—
Out of stock

18

CAP

3YX-2143A-00-00

—
Out of stock

19

PROTECTOR, FUEL TANK

3HA-24141-00-00

—

$11.14

In stock

20

TOOL KIT

23P-28100-00-00

—

$43.86

In stock
