2017 Yamaha Super Tenere (XTZ12HT) Electrical 3 Diagram

← All diagrams

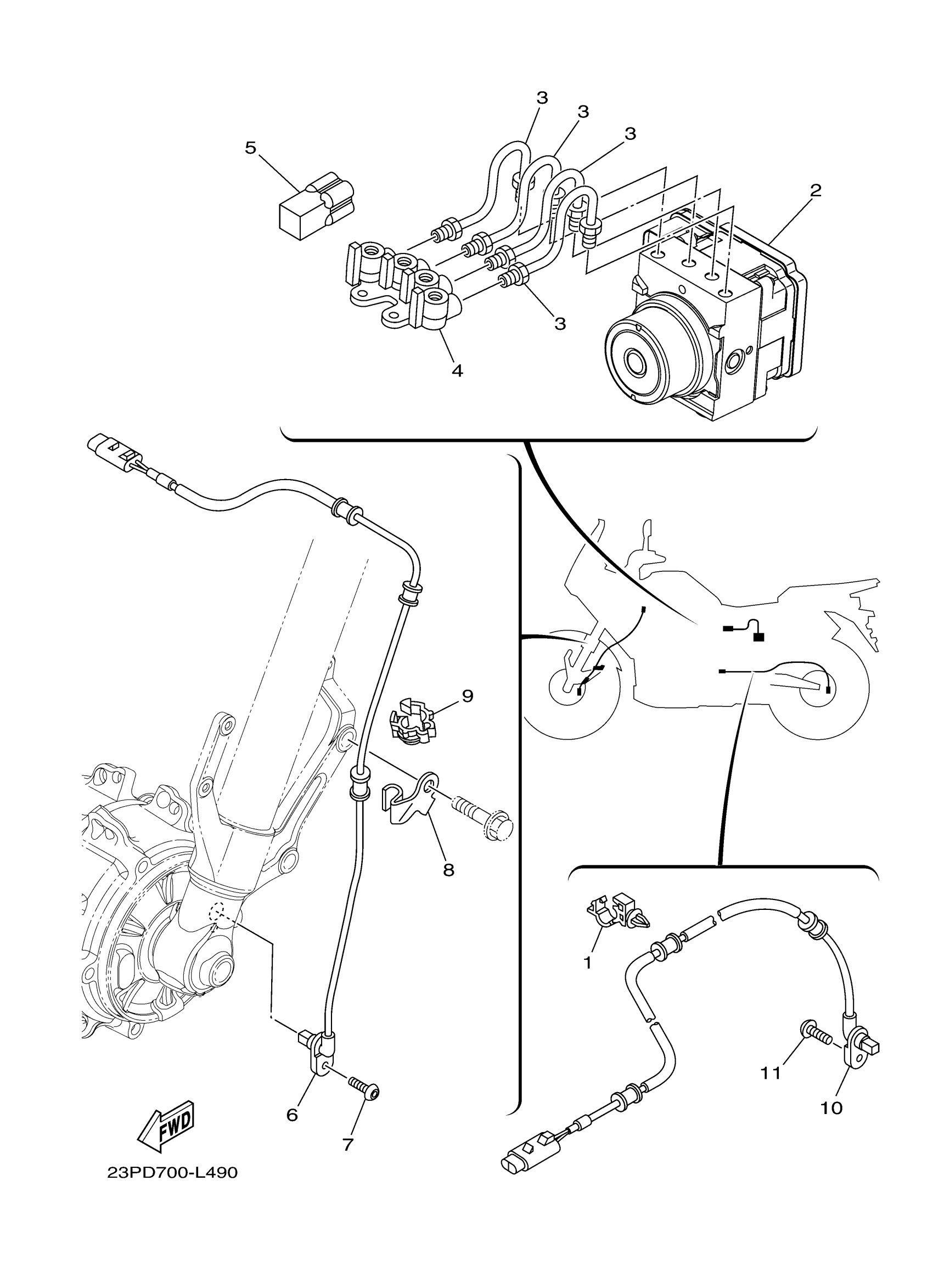

Find the part on the Electrical 3 diagram for your 2017 Yamaha Super Tenere (XTZ12HT), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2017 Yamaha Super Tenere (XTZ12HT) Electrical 3 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CLAMP

90464-10008-00

1
Out of stock

2

HYDRAULIC UNIT ASSY

23P-85930-19-00

1
Out of stock

3

PIPE, BRAKE

23P-25871-01-00

—
Out of stock

4

JOINT

23P-25885-00-00

—
Out of stock

5

CONNECTOR

3YA-82378-00-00

—
Out of stock

6

WHEEL SENSOR ASSY, FRONT

23P-85970-00-00

1
Out of stock

7

BOLT, BUTTON HEAD(4NK)

92014-06014-00

1
Out of stock

8

HOLDER, CABLE 1

23P-23318-00-00

—
Out of stock

9

CLAMP

90464-12013-00

1
Out of stock

10

WHEEL SENSOR ASSY, REAR

23P-85980-00-00

1
Out of stock

11

BOLT, BUTTON HEAD(4NK)

92014-06014-00

1
Out of stock
