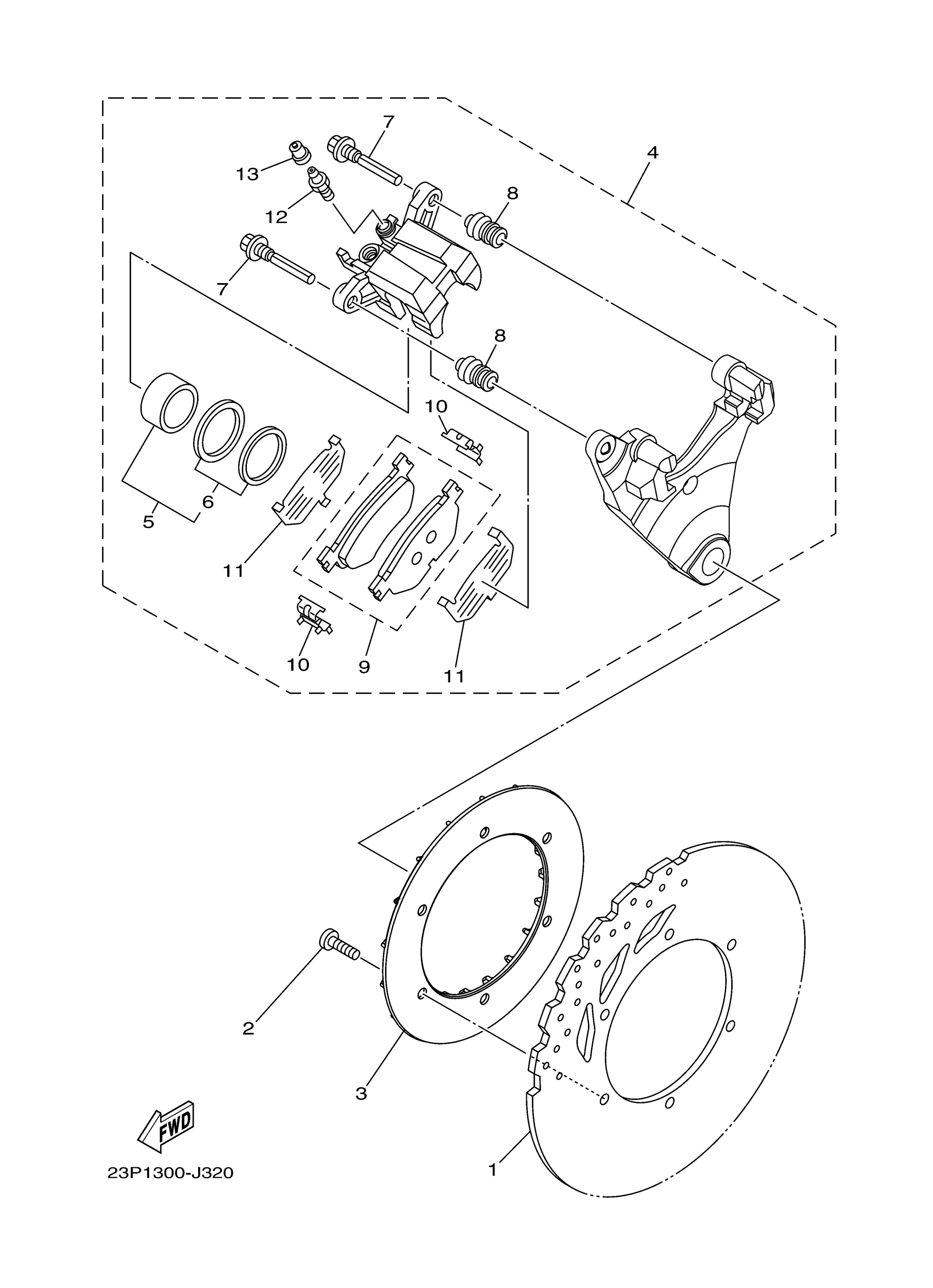

Yamaha XTZ12GY (SUPER TENERE) 2BSP 2016 REAR BRAKE CALIPER Diagram

#

Description
Price

1

DISK, REAR BRAKE 2

23P-2582W-01-00

$110.95

2

SCREW

90149-08029-00

$3.95

3

PLATE, DISK

23P-2581A-10-00

$151.32

4

CALIPER ASSY, REAR 2

23P-2580W-00-00

$421.39

5

PISTON ASSY, CALIPER

1D7-25802-00-00

$45.90

6

CALIPER SEAL KIT

5JW-25803-00-00

$13.44

7

PIN, SLIDE

5JW-25914-10-00

$17.93

8

BOOT 2

4TT-25937-00-00

$13.33

9

BRAKE PAD KIT 2

3D8-25806-00-00

$42.94

10

SUPPORT, PAD

5JW-25919-00-00

$13.40

11

SHIM, CALIPER

5JW-25827-00-00

$5.55

12

SCREW, BLEED

5GM-25824-00-00

$5.21

13

CAP

1D7-25825-00-00

$6.29
