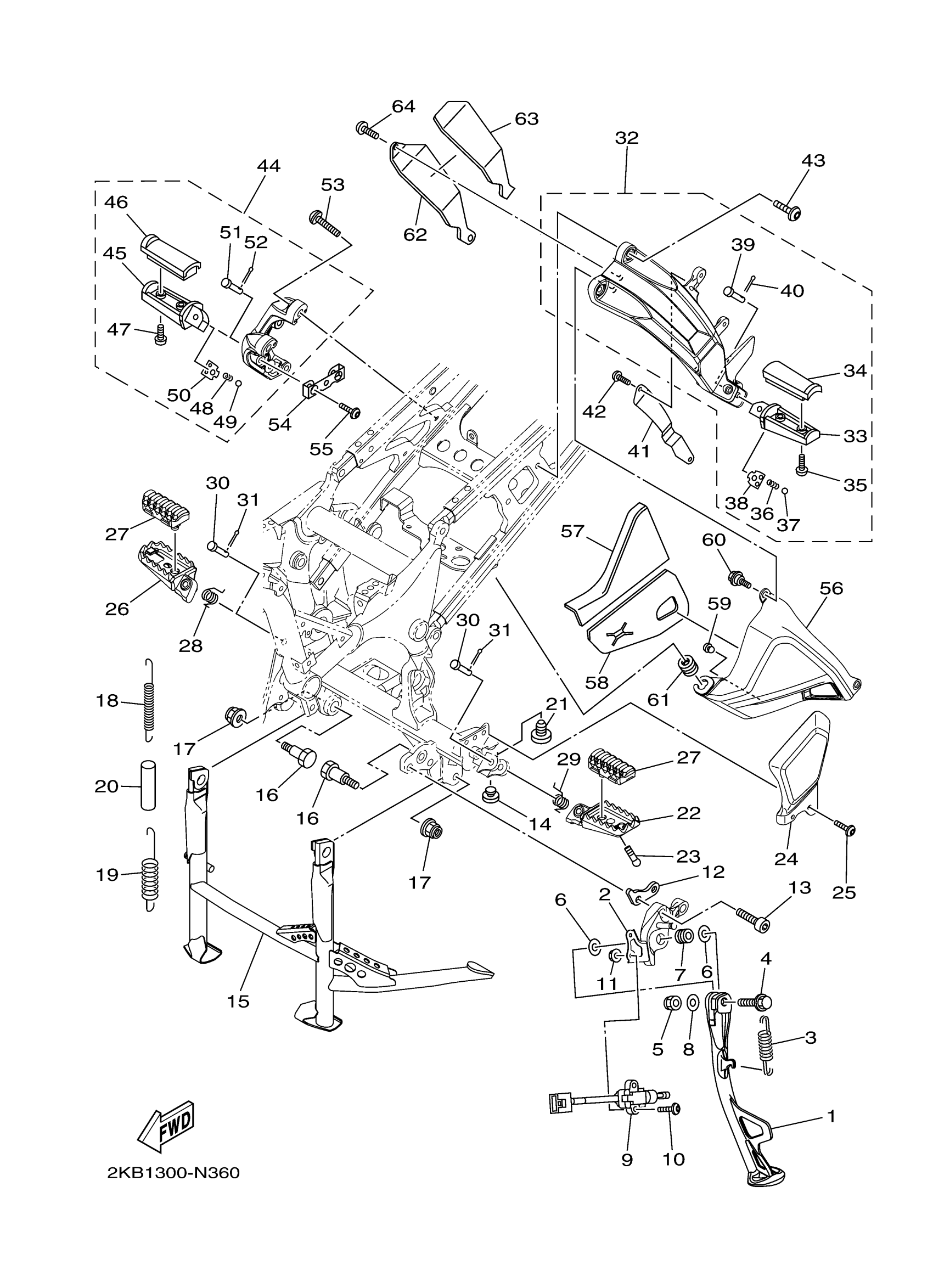

Yamaha XTZ12ERCB (SUPER TENERE ES CA) BUY8 2024 STAND & FOOTREST Diagram

#

Description
Price

1

STAND, SIDE

2BS-27311-00-00

Unavailable

2

BRACKET, SIDE STAND

23P-27321-00-00

Unavailable

3

SPRING, SIDE STAND

23P-27316-00-00

Unavailable

4

BOLT, WASHER BASED(4KD)

90105-10728-00

$30.99

5

NUT, SELF-LOCKING

90185-10012-00

$9.49

6

WASHER, PLATE

90201-10051-00

$9.49

7

COLLAR

90387-10020-00

$17.99

8

WASHER, PLATE(47X)

90201-101J1-00

$8.49

9

SWITCH, SIDE STAND

23P-82566-61-00

Unavailable

10

BOLT, BUTTON HEAD

92017-05020-00

$3.61

11

NUT, S/L FLANGE

95607-05200-00

$9.49

12

WASHER

23P-27322-00-00

Unavailable

13

BOLT, SOCKET

91317-10030-00

$9.49

14

STOPPER, MAIN STAND

128-27114-00-00

$7.99

15

STAND, MAN

23P-27111-01-00

Unavailable

16

BOLT

90109-10057-00

Unavailable

17

NUT, S/L FLANGE

95602-10200-00

Unavailable

18

SPRING, MAIN STAND

23P-27116-00-00

Unavailable

19

SPRING, MAIN STAND

23P-27116-10-00

Unavailable

20

HOSE (L75)

90445-19003-00

Unavailable

21

STOPPER, MAIN STAND

23P-27114-00-00

Unavailable

22

FOOTREST

23P-27451-00-00

Unavailable

23

BOLT

90109-08177-00

Unavailable

24

PLATE 1

23P-27445-10-00

Unavailable

25

BOLT, BUTTON HEAD

92012-06012-00

Unavailable

26

FOOTREST

23P-27461-00-00

Unavailable

27

COVER, FOOTREST

23P-27413-00-00

Unavailable

28

SPRING, TORSION

90508-20051-00

Unavailable

29

SPRING, TORSION

90508-20041-00

Unavailable

30

PIN, CLEVIS

91702-08040-00

Unavailable

31

PIN, COTTER

91490-25020-00

Unavailable

32

REAR FOOTREST ASSY 1

23P-27430-10-00

Unavailable

33

FOOTREST, REAR 1

5RT-27431-00-00

Unavailable

34

COVER, FOOTREST

4D9-27413-00-00

Unavailable

35

SCREW, PAN HEAD

98507-05014-00

Unavailable

36

SPRING, COMPRESSION (22N)

90501-12743-00

Unavailable

37

BALL

93501-04011-00

Unavailable

38

WASHER, SPECIAL

5VX-27437-00-00

Unavailable

39

PIN, CLEVIS

91702-08040-00

Unavailable

40

PIN, COTTER

91490-25020-00

Unavailable

41

BRACKET, FOOTREST 1

23P-27412-00-00

Unavailable

42

BOLT, BUTTON HEAD

92012-05008-00

Unavailable

43

BOLT

90109-085G6-00

Unavailable

44

REAR FOOTREST ASSY 2

23P-27440-10-00

Unavailable

45

FOOTREST, REAR 2

5RT-27441-00-00

Unavailable

46

COVER, FOOTREST

4D9-27413-00-00

Unavailable

47

SCREW, PAN HEAD

98507-05014-00

Unavailable

48

SPRING, COMPRESSION (22N)

90501-12743-00

Unavailable

49

BALL

93501-04011-00

Unavailable

50

WASHER, SPECIAL

5VX-27437-00-00

Unavailable

51

PIN, CLEVIS

91702-08040-00

Unavailable

52

PIN, COTTER

91490-25020-00

Unavailable

53

BOLT

90109-085G6-00

Unavailable

54

BRKT

2KB-27333-00-00

Unavailable

55

BOLT, BUTTON HEAD

92012-08014-00

Unavailable

56

PROTECTOR

23P-27491-00-00

Unavailable

57

SEAT 3

23P-2749A-00-00

Unavailable

58

SEAT 4

23P-2749B-00-00

Unavailable

59

DAMPER, SIDE COVER

1J7-21717-00-00

Unavailable

60

BOLT

90109-06264-00

Unavailable

61

GROMMET (10V)

90480-12325-00

Unavailable

62

BRACKET, FOOTREST

2BS-27422-00-00

Unavailable

63

SEAT 4

2BS-2175P-00-00

Unavailable

64

BOLT, BUTTON HEAD

92012-08012-00

Unavailable
