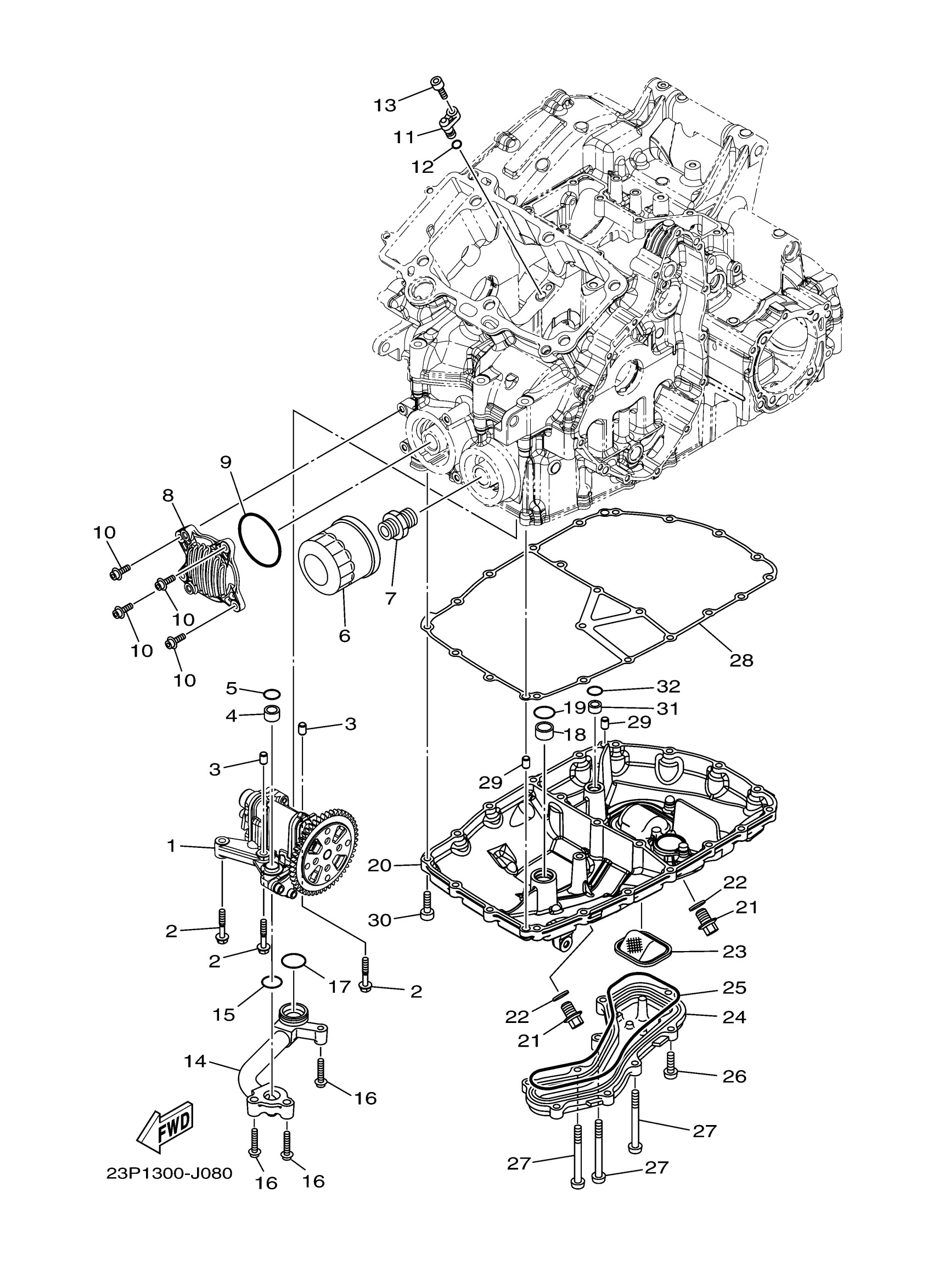

Yamaha XTZ12ERCB (SUPER TENERE ES CA) BUY8 2024 OIL PUMP Diagram
#
Description
Price
1
OIL PUMP ASSY
23P-13300-00-00
Unavailable
3
PIN, DOWEL
99530-08012-00
Unavailable
6
ELEMENT ASSY, OIL
5GH-13440-90-00
Unavailable
8
PLATE, ADAPTOR
23P-13461-00-00
Unavailable
10
BOLT, HEXAGON SOCKET HEAD
90110-06348-00
Unavailable
11
NOZZLE 3
23P-15155-00-00
Unavailable
14
PIPE, OIL 1
23P-13416-00-00
Unavailable
16
BOLT, HEXAGON SOCKET HEAD
90110-06346-00
Unavailable
17
O-RING(1KT)
93210-27778-00
Unavailable
18
COLLAR, DISTANCE
23P-13117-00-00
Unavailable
19
O-RING
93210-19003-00
Unavailable
20
COVER, STRAINER
23P-13417-00-00
Unavailable
21
PLUG, STRAIGHT SCREW
90340-12001-00
Unavailable
22
GASKET(3FD)
90430-12213-00
Unavailable
23
STRAINER 2
23P-13421-00-00
Unavailable
24
COVER, OIL ELEMENT
23P-13447-00-00
Unavailable
25
GASKET, ELEMENT COVER
23P-13449-00-00
Unavailable
26
SCREW
90149-06159-00
Unavailable
27
SCREW
90149-06143-00
Unavailable
28
GASKET, STRAINER COVER
23P-13414-00-00
Unavailable
29
PIN, DOWEL
99530-08012-00
Unavailable
30
BOLT,SOCKET
91317-06025-00
Unavailable
31
COLLAR(3LD)
90387-106W6-00
Unavailable
32
O-RING(3LD)
93210-12790-00
Unavailable
