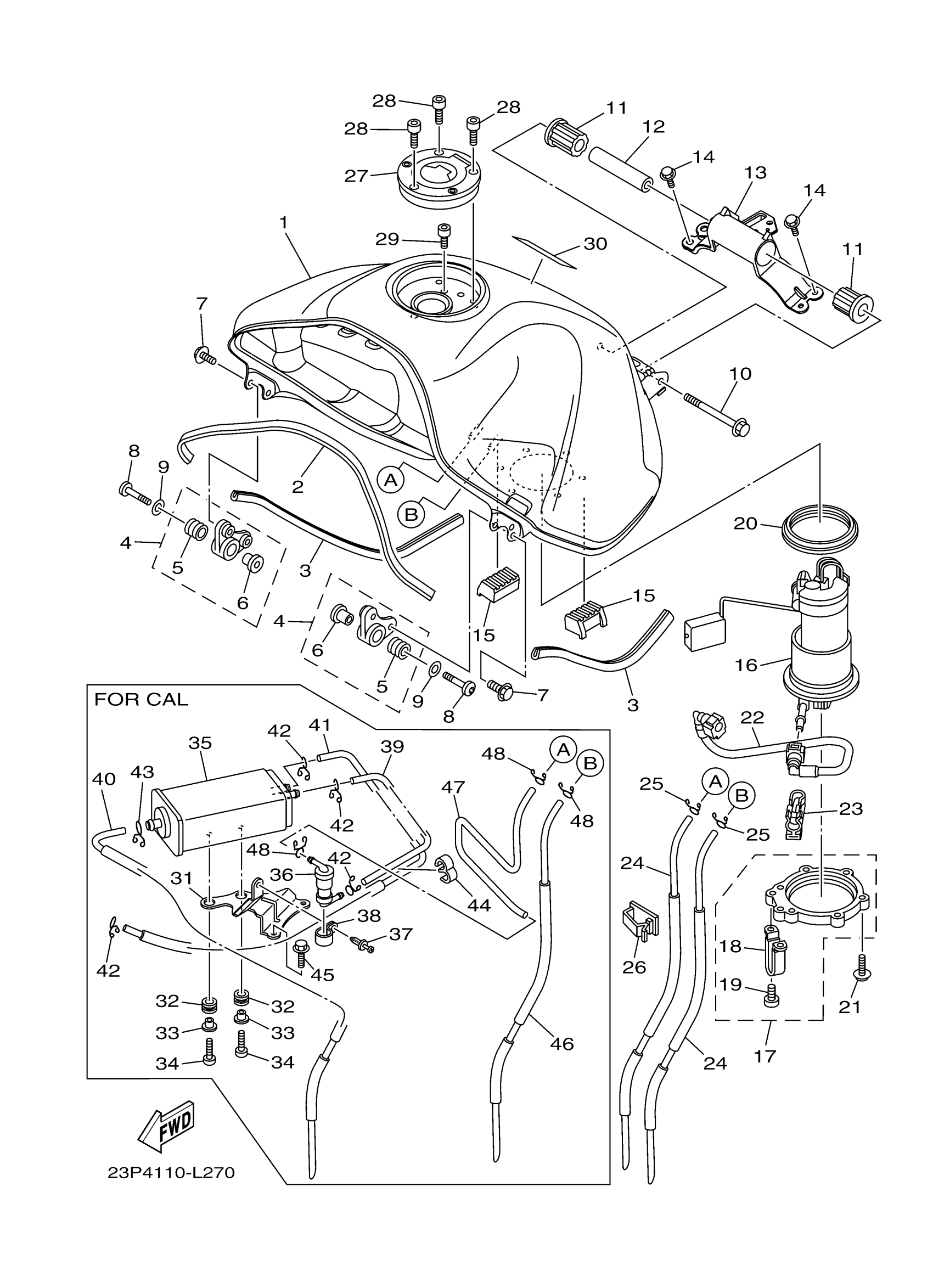

Yamaha XTZ12ERCB (SUPER TENERE ES CA) BUY8 2024 FUEL Diagram

#

Description
Price

1

FUEL TANK COMP.

23P-YK241-01-PC

Unavailable

2

MOLD, FUEL TANK

23P-24188-00-00

Unavailable

3

MOLD, FUEL TANK

23P-24188-10-00

Unavailable

4

TANK BRACKET ASSY

23P-24104-01-00

Unavailable

5

GROMMET

90480-18008-00

$3.71

6

COLLAR

90387-06266-00

$4.61

7

BOLT, WITH WASHER

90119-06200-00

Unavailable

8

SCREW

90149-06328-00

$5.60

9

WASHER PLATE 137241870000

90201-06072-00

$9.49

10

BOLT, FLANGE(2UJ)

95814-08110-00

$7.49

11

DAMPER, LOCATING 3

23P-24183-00-00

Unavailable

12

COLLAR

90387-12050-00

Unavailable

13

BRACKET, TANK FITTING

23P-2413Y-00-00

Unavailable

14

BOLT, FLANGE

95817-06020-00

$3.81

15

DAMPER, LOCATING 1

23P-24181-00-00

$10.99

16

FUEL PUMP COMP.

23P-13907-03-00

Unavailable

17

TANK BRACKET ASSY 2

23P-24105-00-00

Unavailable

18

BRACKET, FUEL TANK 2

2D1-24192-00-00

Unavailable

19

SCREW, BIND

98902-05008-00

Unavailable

20

O-RING

19B-24486-01-00

Unavailable

21

BOLT, HEXAGON SOCKET HEAD

90110-05028-00

Unavailable

22

PIPE, FUEL 1

23P-13971-01-00

Unavailable

23

CLAMP

90464-16005-00

Unavailable

24

PIPE, OVERFLOW

23P-24318-00-00

Unavailable

25

CLIP

90467-090A2-00

Unavailable

26

CLAMP

90464-13012-00

Unavailable

27

CAP ASSY

39P-24602-00-00

Unavailable

28

BOLT, HEXAGON SOCKET HEAD(1FM)

90110-05112-00

Unavailable

29

BOLT

91312-05010-00

Unavailable

30

LABEL, WARNING GENERAL INFO.

29P-2816R-01-00

Unavailable
