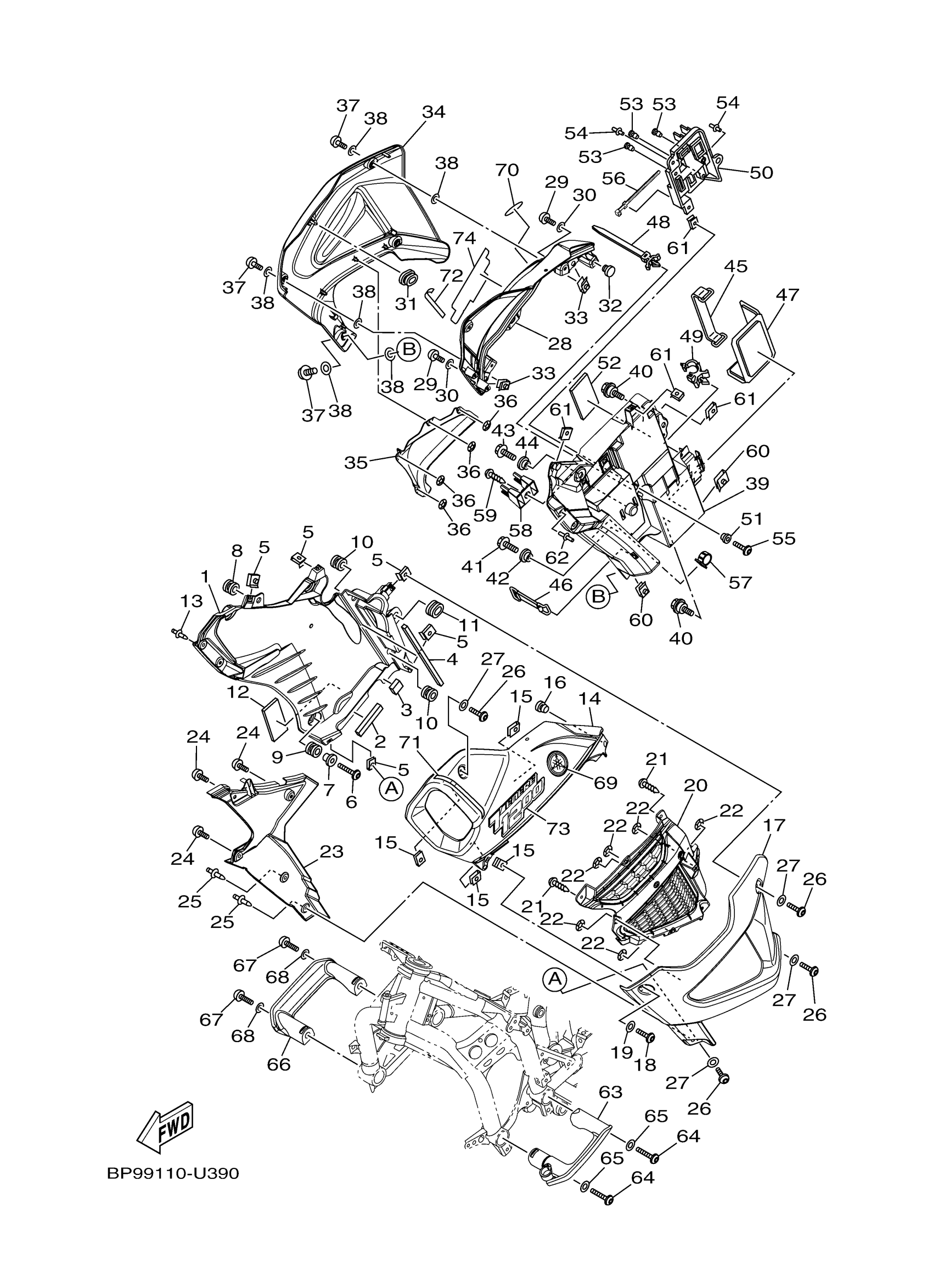

Yamaha XTZ12ERCB (SUPER TENERE ES CA) BUY8 2024 COWLING Diagram
#
1
GUIDE, AIR 1
23P-2137U-00-00
Unavailable
3
DAMPER, PLATE
90520-10007-00
Unavailable
10
GROMMET(55K)
90480-18431-00
Unavailable
16
PLUG (17J)
90338-10132-00
Unavailable
17
PANEL 1
23P-2835U-00-P1
Unavailable
18
BOLT
90111-05003-00
Unavailable
19
WASHER, PLATE(1KT)
90202-05180-00
Unavailable
20
GRILL, AIR OUTLET 1
23P-2837V-00-00
Unavailable
21
SCREW, TRUSS TAP.
97707-50014-00
Unavailable
22
NUT, SPRING (6E5)
90183-05M02-00
Unavailable
23
PANEL, INNER 1
23P-2836K-00-00
Unavailable
24
BOLT
90111-05002-00
Unavailable
26
BOLT
90111-05003-00
Unavailable
27
WASHER, PLATE(1KT)
90202-05180-00
Unavailable
28
COVER 2
23P-2842N-00-PC
Unavailable
29
BOLT
90111-05003-00
Unavailable
30
WASHER, PLATE(1KT)
90202-05180-00
Unavailable
32
PLUG (17J)
90338-10132-00
Unavailable
33
PLATE, SPRING
5PW-2177L-01-00
Unavailable
34
PANEL 2
23P-2835V-00-P1
Unavailable
35
COVER
23P-28365-00-00
Unavailable
36
NUT, SPRING (6E5)
90183-05M02-00
Unavailable
37
HEAD
14B-28386-00-00
Unavailable
38
WASHER, SPECIAL 1
2TK-21757-00-00
Unavailable
39
BATTERY BOX ASSY
23P-8210E-02-00
Unavailable
40
BOLT
90109-06171-00
Unavailable
41
BOLT, FLANGE
95817-06016-00
Unavailable
42
COLLAR
90387-06153-00
Unavailable
43
BOLT, FLANGE
95817-06016-00
Unavailable
44
C0LLAR
90387-062M9-00
Unavailable
45
BAND, BATTERY
26H-82131-00-00
Unavailable
46
BAND, BATTERY
116-82131-00-00
Unavailable
47
SEAT, BATTERY
23P-82122-00-00
Unavailable
48
CLAMP
90464-50001-00
Unavailable
49
CLAMP
90464-16006-00
Unavailable
50
PLATE 1
23P-28396-01-00
Unavailable
51
COLLAR
90387-06184-00
Unavailable
52
SEAL
5TH-21268-01-00
Unavailable
53
PLUG(1NL)
90338-07180-00
Unavailable
55
BOLT
90111-06038-00
Unavailable
56
CLAMP
90464-34002-00
Unavailable
57
CLAMP
90464-20021-00
Unavailable
58
STAY 1
23P-28321-01-00
Unavailable
59
SCREW, TAPPING
97702-50016-00
Unavailable
60
PLATE, SPRING
5PW-2177L-01-00
Unavailable
63
PROTECTOR 1
23P-2834V-00-00
Unavailable
64
BOLT, BUTTON HEAD
92012-08030-00
Unavailable
65
WASHER, PLATE
90201-08043-00
Unavailable
66
PROTECTOR 2
23P-2834W-00-00
Unavailable
67
BOLT, BUTTON HEAD
92012-08030-00
Unavailable
68
WASHER, PLATE
90201-08043-00
Unavailable
69
EMBLEM
5YU-2411B-01-00
Unavailable
70
EMBLEM
5YU-2411B-01-00
Unavailable
71
GRAPHIC 1
BP8-28391-50-00
Unavailable
72
GRAPHIC 2
BP8-28392-50-00
Unavailable
73
EMBLEM, 1
BP8-2834C-30-00
Unavailable
74
EMBLEM, 1
BP8-2834C-30-00
Unavailable
