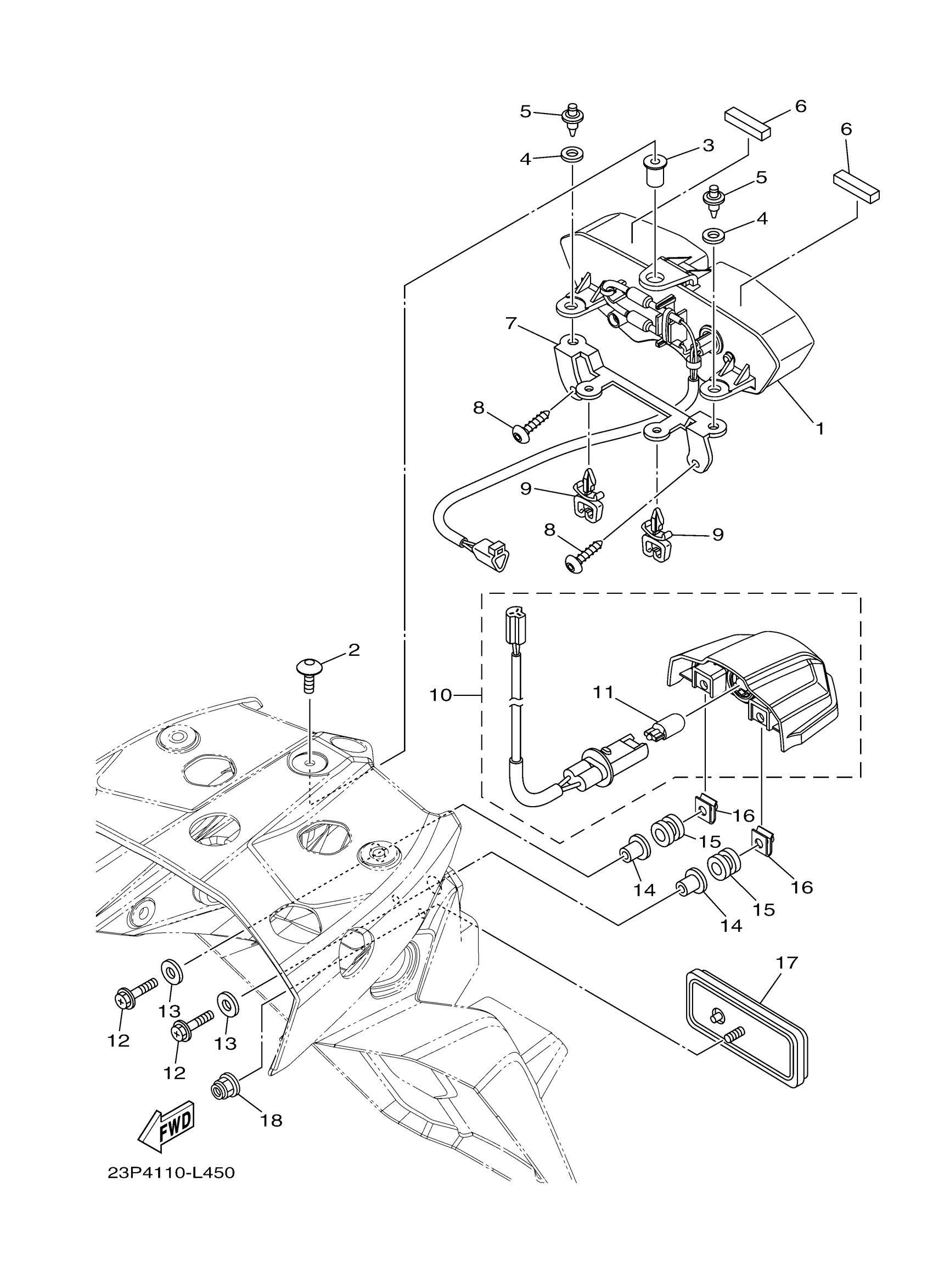

Yamaha XTZ12EPCB (SUPER TENERE ES CA) BUY2 2023 TAILLIGHT Diagram

Description

Price

TAILLIGHT UNIT ASSY

23P-84710-10-00

Unavailable

BOLT,HEX. SOCKET BUTTON

90111-05021-00

$4.64

NUT(1KT)

90179-05523-00

$4.33

DAMPER

5SL-84753-00-00

$5.05

RIVET

90269-06001-00

$5.05

DAMPER 1

5PS-28217-00-00

$2.80

BRACKET, TAILLIGHT

23P-84519-00-00

$6.64

SCREW, TAPPING

97702-50016-00

$1.85

CLAMP

90464-11121-00

$3.07

LICENCE LIGHT UNIT ASSY

23P-84745-00-00

$70.21

BULB

4SV-84347-00-00

$5.99

BOLT, FLANGE

90105-05005-00

$0.79

WASHER PLATE (664)

90201-05556-00

Unavailable

COLLAR

90387-05052-00

$8.06

GROMMET

90480-11009-00

$0.77

NUT, SPRING

90183-050A6-00

Unavailable

REAR REFLECTOR ASSY

3Y6-85130-02-00

$21.21

NUT, U FLANGE

95604-05200-00

Unavailable
