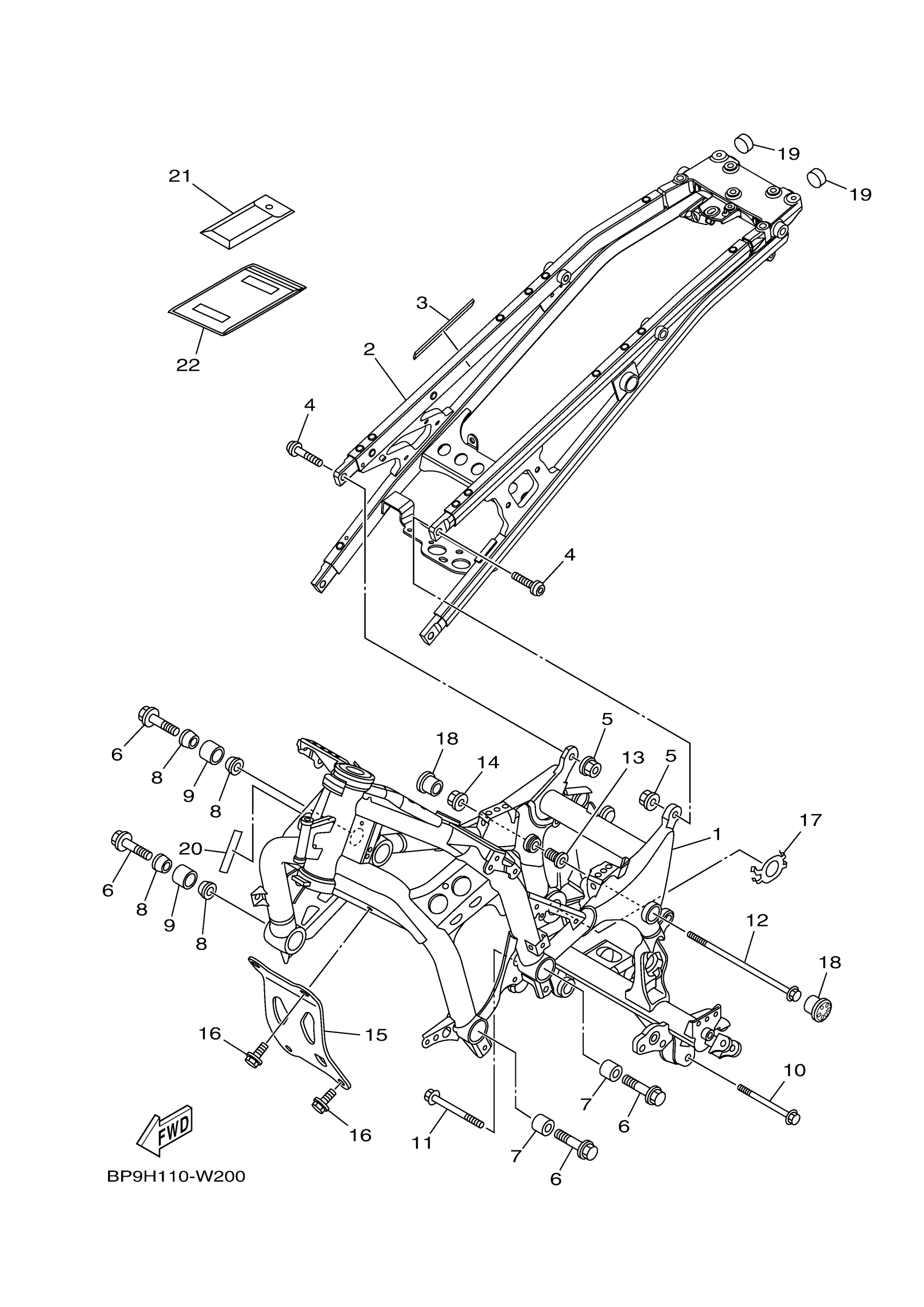

Yamaha XTZ12EPCB (SUPER TENERE ES CA) BUY2 2023 FRAME Diagram

#

Description
Price

1

FRAME COMP.

23P-21110-01-00

Unavailable

2

REAR FRAME COMP.

2KB-21190-10-00

Unavailable

3

DAMPER 6

4D9-2837K-00-00

Unavailable

4

SCREW

90149-10003-00

$9.49

5

NUT, S/L FLANGE

95602-10200-00

$4.82

6

BOLT, FLANGE

90105-12077-00

Unavailable

7

COLLAR

23P-21116-00-00

Unavailable

8

BOSS, ENGINE MOUNT

23P-21414-00-00

Unavailable

9

BOSS, ENGINE MOUNT

23P-21424-00-00

Unavailable

10

BOLT, FLANGE

90105-10075-00

$11.49

11

BOLT, FLANGE

90105-10175-00

$10.49

12

BOLT, FLANGE

90105-10380-00

$15.99

13

BOLT, ENGINE ADJUSTING

23P-21495-00-00

Unavailable

14

NUT

90179-10028-00

$7.49

15

STAY, ENGINE 4

2BS-21318-00-00

Unavailable

16

BOLT, FLANGE

95812-12025-00

Unavailable

17

PLATE 1

23P-2191B-01-00

Unavailable

18

CAP, MAIN PIPE

2BS-2111A-00-00

Unavailable

19

CAP

3YX-2143A-00-00

Unavailable

20

PROTECTOR, FUEL TANK

3HA-24141-00-00

Unavailable

21

TOOL KIT

23P-28100-01-00

Unavailable

22

POUCH

4KG-28186-11-00

Unavailable
