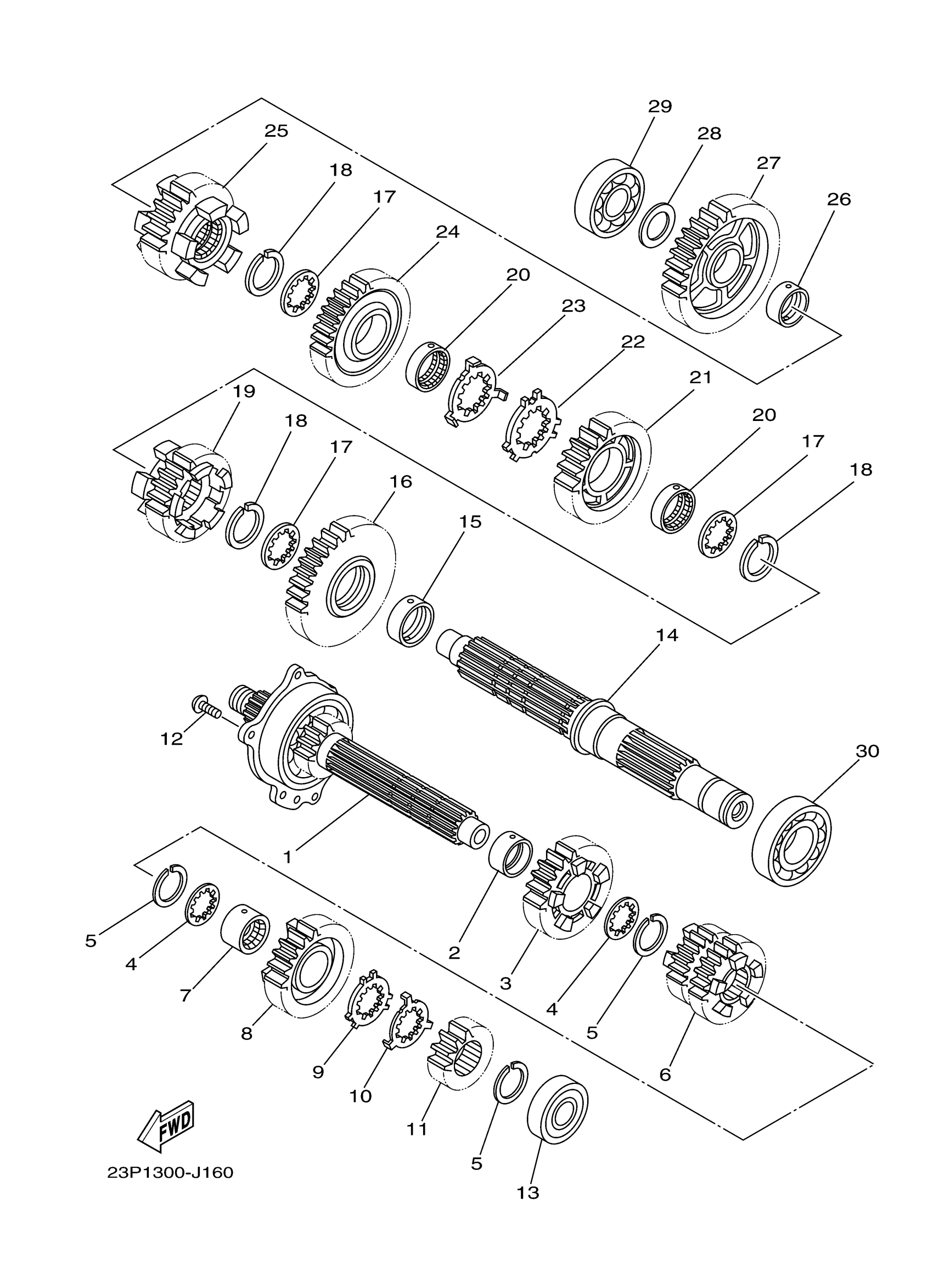

Yamaha XTZ12ENCB (SUPER TENERE ES CA) BP9P 2022 TRANSMISSION Diagram
#
Description
Price
1
MAIN AXLE ASSY
23P-17401-00-00
Unavailable
3
GEAR, 5TH PINION (24T)
23P-17151-00-00
Unavailable
6
GEAR, 3RD PINION (21T/24T)
23P-17131-00-00
Unavailable
8
GEAR, 6TH PINION (28T)
23P-17161-00-00
Unavailable
11
GEAR, 2ND PINION
5S7-17121-00-00
Unavailable
13
BEARING(3LD)
93306-20464-00
Unavailable
16
GEAR, 2ND WHEEL (33T)
23P-17221-00-00
Unavailable
17
WASHER
90209-28008-00
Unavailable
18
CIRCLIP
93440-31187-00
Unavailable
19
GEAR, 6TH WHEEL (26T)
23P-17261-00-00
Unavailable
20
COLLAR
90387-28004-00
Unavailable
21
GEAR, 4TH WHEEL (30T)
23P-17241-00-00
Unavailable
22
WASHER, CLAW
90214-29002-00
Unavailable
23
WASHER, CLAW
90214-28002-00
Unavailable
24
GEAR, 3RD WHEEL (33T)
23P-17231-00-00
Unavailable
25
GEAR, 5TH WHEEL (25T)
23P-17251-00-00
Unavailable
26
COLLAR
90387-25008-00
Unavailable
27
GEAR, 1ST WHEEL (36T)
23P-17211-00-00
Unavailable
28
WASHER, PLATE(83R)
90201-224L4-00
Unavailable
29
BEARING
93306-37215-00
Unavailable
30
BEARING
93306-28204-00
Unavailable
