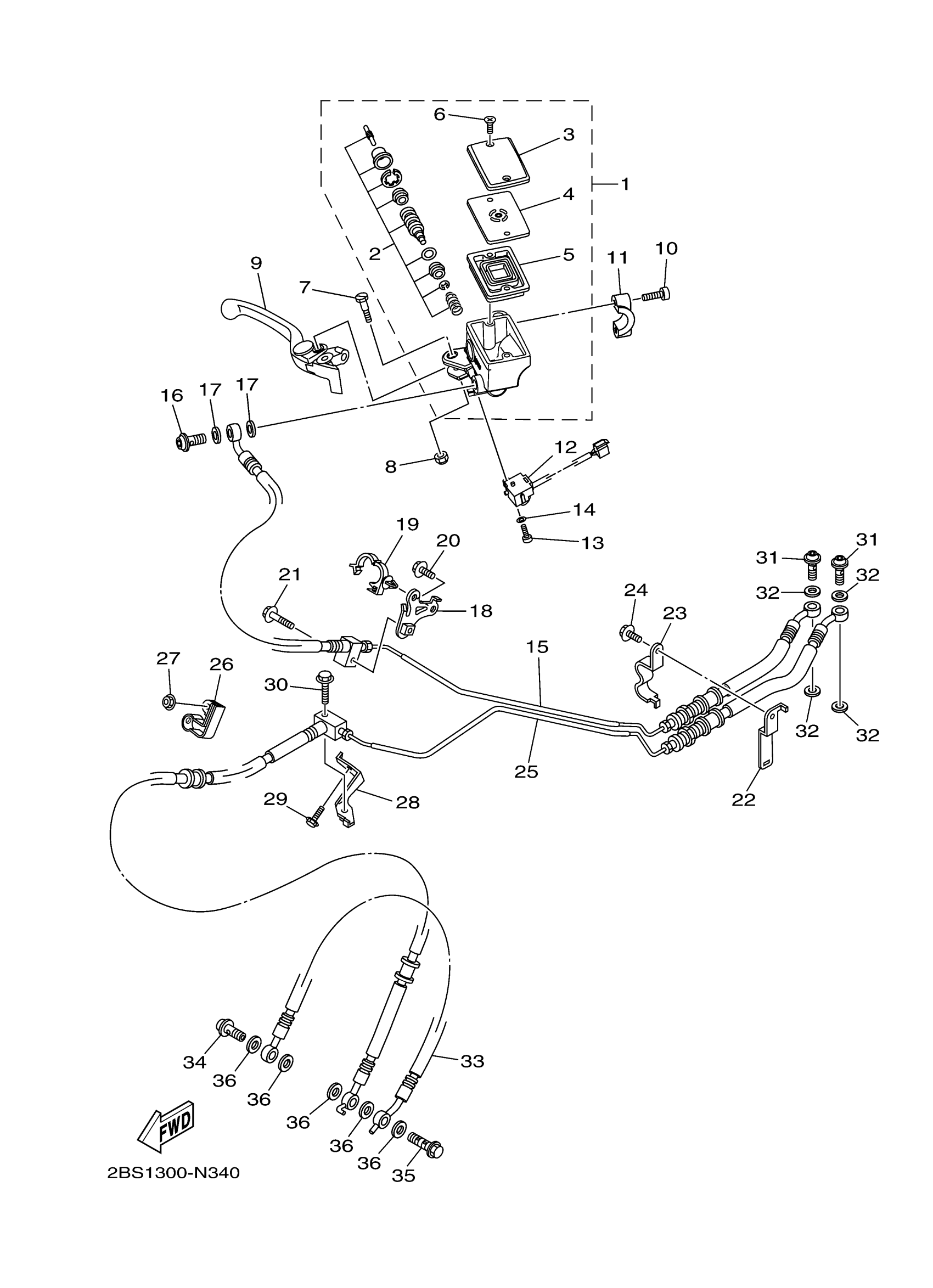

Yamaha XTZ12ENCB (SUPER TENERE ES CA) BP9P 2022 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER SUB ASSY

23P-2580A-00-00

$155.99

2

CYLINDER KIT, MASTER

2D1-25807-00-00

$69.99

3

CAP, RESERVOIR

5VS-25852-00-00

Unavailable

4

BUSH,DIAPHRAGM

5VS-25855-00-00

$16.49

5

GASKET, DIAPHRAGM

20S-25854-00-00

$28.99

6

SCREW

5VS-2589H-00-00

$4.11

7

BOLT, LEVER

23P-2589F-10-00

$7.99

8

NUT, SELF-LOCKING

95617-06100-00

$8.49

9

LEVER 2

5VS-83922-00-00

$85.99

10

BOLT

5VS-26332-00-00

$4.42

11

BRACKET, MASTER CYLINDER

5VS-25867-00-00

$36.99

12

FRONT STOP SWITCH ASSY

2BS-83980-01-00

$138.99

13

SCREW, PAN HEAD(GA5)

98580-04014-00

$4.51

14

WASHER, PLAIN (646)

92990-04600-00

$5.99

15

HOSE, BRAKE

23P-2584B-01-00

$149.99

16

BOLT, UNION

90401-10172-00

Unavailable

17

GASKET

90430-10005-00

Unavailable

18

HOLDER, BRAKE HOSE 6

23P-2588G-00-00

Unavailable

19

CLAMP

90464-30001-00

Unavailable

20

BOLT, FLANGE

95022-06010-00

Unavailable

21

BOLT, FLANGE

95022-06025-00

Unavailable

22

HOLDER 2

23P-2639F-00-00

Unavailable

23

HOLDER, 3

23P-26482-00-00

Unavailable

24

BOLT, BUTTON HEAD

92012-06010-00

Unavailable

25

HOSE, BRAKE

23P-2584C-01-00

Unavailable

26

HOLDER, BRAKE HOSE

2BS-2588F-00-00

Unavailable

27

NUT, FLANGE

95702-06500-00

Unavailable

28

HOLDER

23P-26475-00-00

Unavailable

29

BOLT, FLANGE

95022-06016-00

Unavailable

30

BOLT, FLANGE

95022-06025-00

Unavailable

31

BOLT, UNION

90401-10172-00

Unavailable

32

GASKET

90430-10005-00

Unavailable

33

HOSE, BRAKE 1

23P-25872-00-00

Unavailable

34

BOLT, UNION

90401-10172-00

Unavailable

35

BOLT, UNION

90401-10038-00

Unavailable

36

GASKET

90430-10005-00

Unavailable
