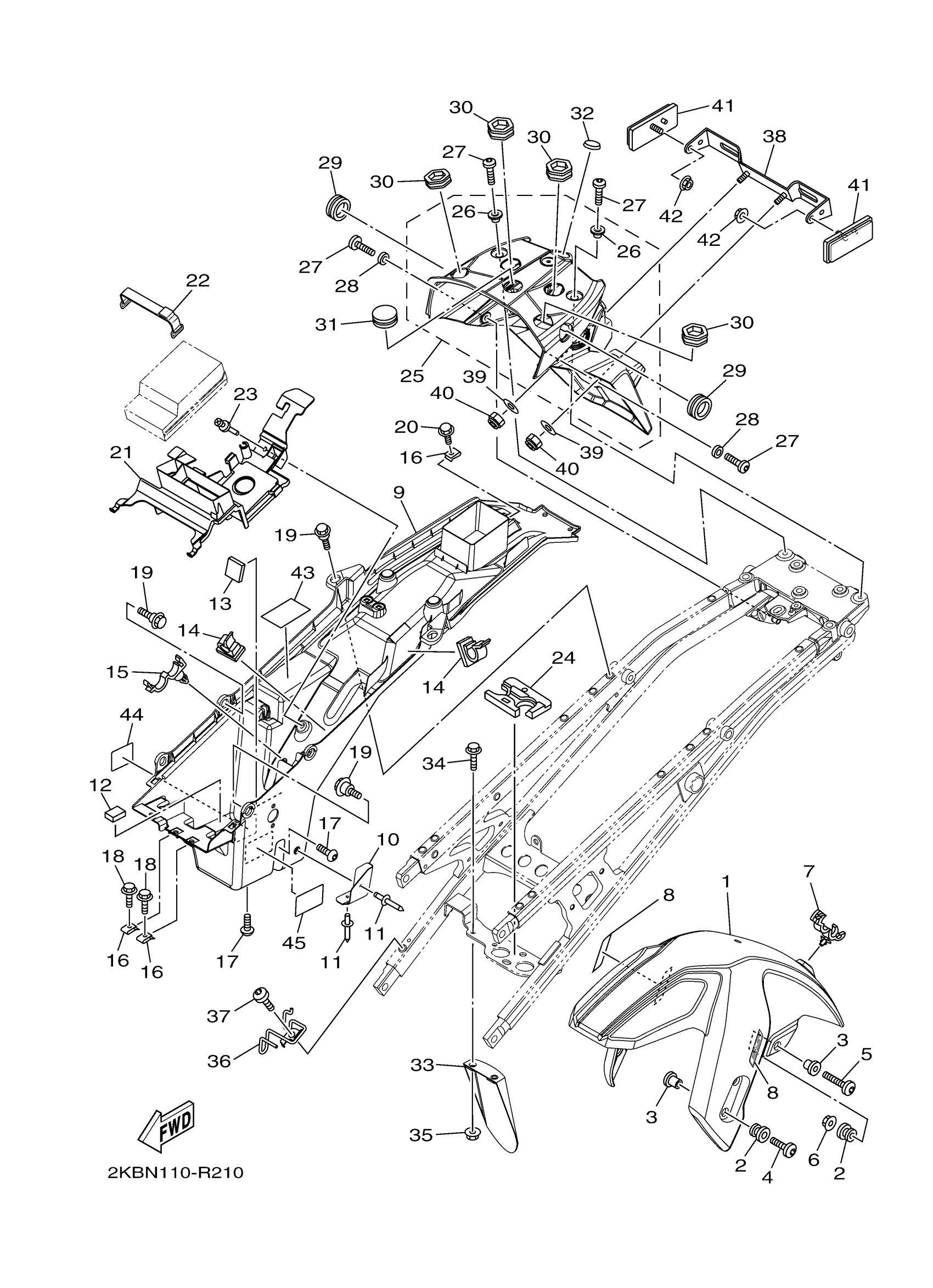

Yamaha XTZ12ENCB (SUPER TENERE ES CA) BP9P 2022 FENDER Diagram

#

Description
Price

1

FENDER, FRONT

23P-21511-00-P8

Unavailable

2

GROMMET(53Y)

90480-12072-00

$8.49

3

COLLAR

90387-06265-00

$9.49

4

BOLT, HEXAGON SOCKET HEAD(3GM)

90110-06202-00

$7.49

5

BOLT,HEX. SOCKET BUTTON

90111-06063-00

$8.49

6

NUT, U FLANGE

95604-06200-00

$8.49

7

CLAMP

90464-18002-00

$8.49

8

EMBLEM

2BS-21578-01-00

$4.68

9

BOX

23P-2160E-01-00

Unavailable

10

PROTECTOR

23P-21652-00-00

Unavailable

11

RIVET, BLIND (8K1)

90267-40076-00

$8.49

12

PAD, SEAT

4D9-24741-00-00

$4.37

13

DAMPER, SEAT

3KJ-24723-00-00

$6.99

14

CLAMP

90464-20021-00

$4.41

15

CLAMP

90464-20010-00

$3.23

16

NUT, SPRING

90183-060A6-00

Unavailable

17

BOLT, BUTTON HEAD

92012-06014-00

Unavailable

18

BOLT, FLANGE

95817-06014-00

Unavailable

19

BOLT

90109-06208-00

Unavailable

20

BOLT, FLANGE

95817-06020-00

Unavailable

21

COVER, REAR FENDER

2KB-2163A-01-00

Unavailable

22

BAND, BATTERY

2D1-82131-00-00

Unavailable

23

RIVET

90269-06081-00

Unavailable

24

DAMPER 2

23P-21639-00-00

Unavailable

25

BRACKET, LICENSE

23P-21685-10-00

Unavailable

26

COLLAR (8G8)

90387-06648-00

Unavailable

27

BOLT

90111-06051-00

Unavailable

28

WASHER, PLATE (8K2)

90201-06778-00

Unavailable

29

DAMPER, SEAT

23P-24747-00-00

Unavailable

30

DAMPER

23P-21649-00-00

Unavailable

31

PLUG(MG5)

90338-28239-00

Unavailable

32

EMBLEM

4XV-2341B-00-00

Unavailable

33

GUARD, FLAP

23P-21642-00-00

Unavailable

34

BOLT, WITH WASHER

90119-06137-00

Unavailable

35

NUT (21W)

90179-06403-00

Unavailable

36

GUIDE, WIRE

2KB-21339-00-00

Unavailable

37

BOLT, BUTTON HEAD

92012-06014-00

Unavailable

38

BRACKET, LICENSE

23P-84751-00-00

Unavailable

39

WASHER, PLATE (4L0)

90201-062A8-00

Unavailable

40

NUT, SELF-LOCKING

95617-06100-00

Unavailable

41

REAR REFLECTOR ASSY

3Y6-85130-02-00

Unavailable

42

NUT, FLANGE(3GM)

95707-05500-00

Unavailable

43

LABEL, TIRE

5PS-21668-11-00

Unavailable
