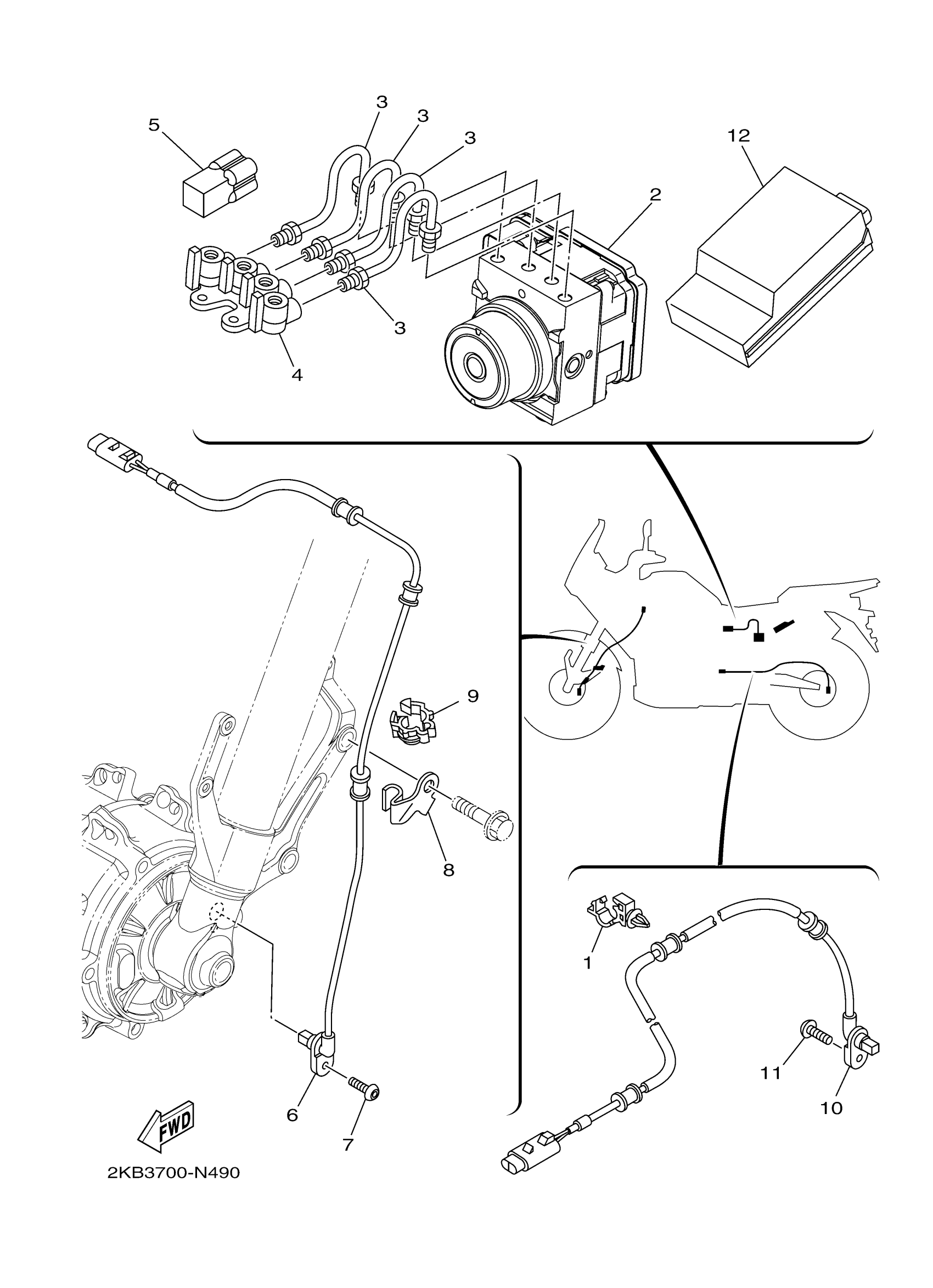

Yamaha XTZ12EMCB (SUPER TENERE ES CA) BP9J 2021 ELECTRICAL 3 Diagram

CLAMP

90464-10008-00

$3.50

HYDRAULIC UNIT ASSY

23P-85930-19-00

$2,000.99

PIPE, BRAKE

23P-25871-01-00

Unavailable

JOINT

23P-25885-00-00

Unavailable

CONNECTOR

3YA-82378-00-00

Unavailable

WHEEL SENSOR ASSY, FRONT

23P-85970-00-00

$214.99

BOLT, BUTTON HEAD(4NK)

92014-06014-00

$3.76

HOLDER, CABLE 1

23P-23318-00-00

Unavailable

CLAMP

90464-12013-00

$8.49

WHEEL SENSOR ASSY, REAR

23P-85980-00-00

$161.99

BOLT, BUTTON HEAD(4NK)

92014-06014-00

$3.76

SUSPENSION CONTROL UNIT ASSY

2KB-85902-01-00

Unavailable
