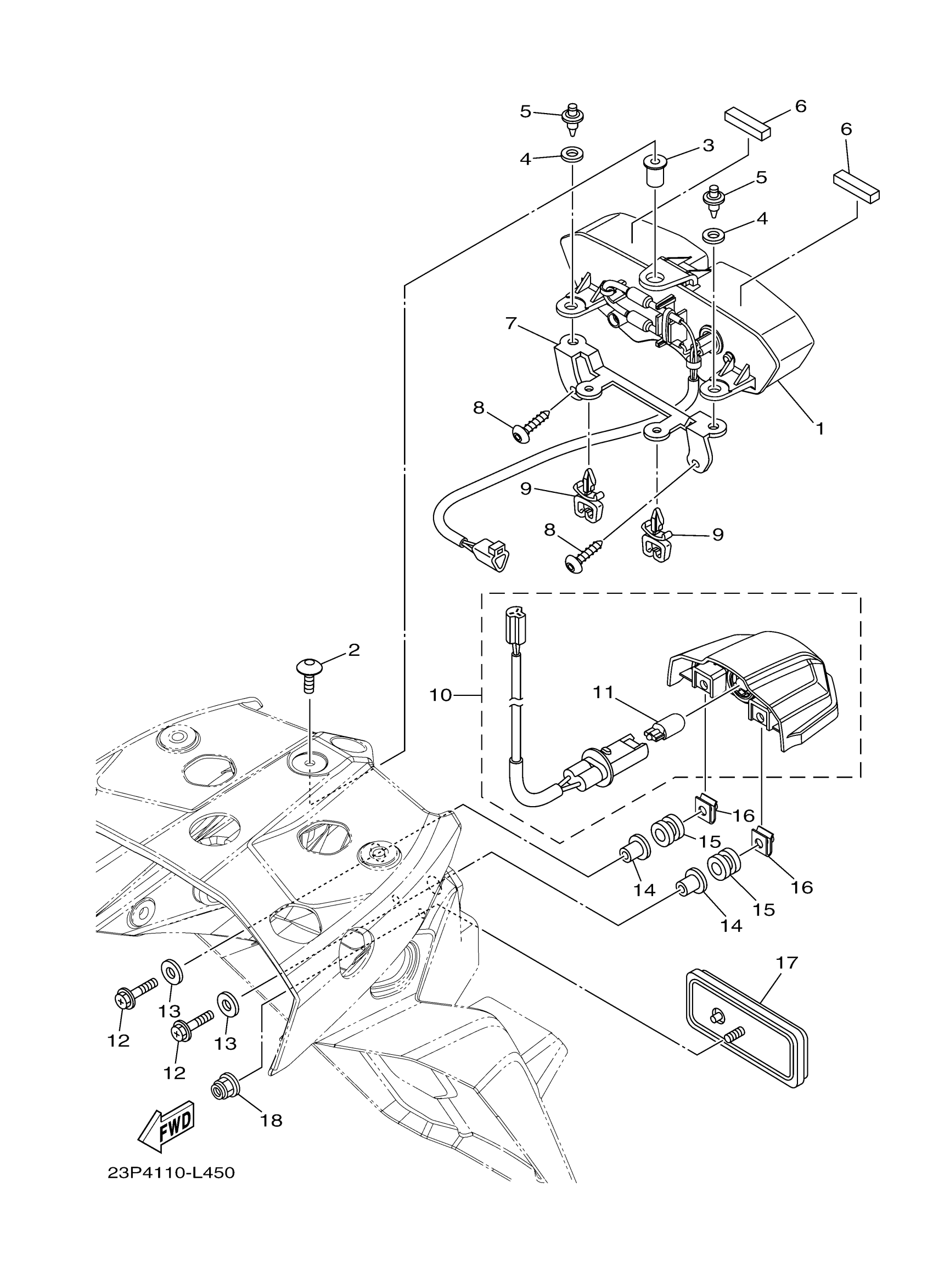

Yamaha XTZ12ELGY (SUPER TENERE ES) BP9D 2020 TAILLIGHT Diagram

#

Description
Price

1

TAILLIGHT UNIT ASSY

23P-84710-10-00

Unavailable

2

BOLT,HEX. SOCKET BUTTON

90111-05021-00

$5.60

3

NUT(1KT)

90179-05523-00

$8.49

4

DAMPER

5SL-84753-00-00

$7.99

5

RIVET

90269-06001-00

$5.60

6

DAMPER 1

5PS-28217-00-00

$2.34

7

BRACKET, TAILLIGHT

23P-84519-00-00

$6.99

8

SCREW, TAPPING

97702-50016-00

$2.39

9

CLAMP

90464-11121-00

Unavailable

10

LICENCE LIGHT UNIT ASSY

23P-84745-00-00

$76.99

11

BULB

4SV-84347-00-00

$8.99

12

BOLT, FLANGE

90105-05005-00

$1.20

13

WASHER PLATE (664)

90201-05556-00

Unavailable

14

COLLAR

90387-05052-00

$9.49

15

GROMMET

90480-11009-00

$1.01

16

NUT, SPRING

90183-050A6-00

Unavailable

17

REAR REFLECTOR ASSY

3Y6-85130-02-00

Unavailable

18

NUT, U FLANGE

95604-05200-00

Unavailable
