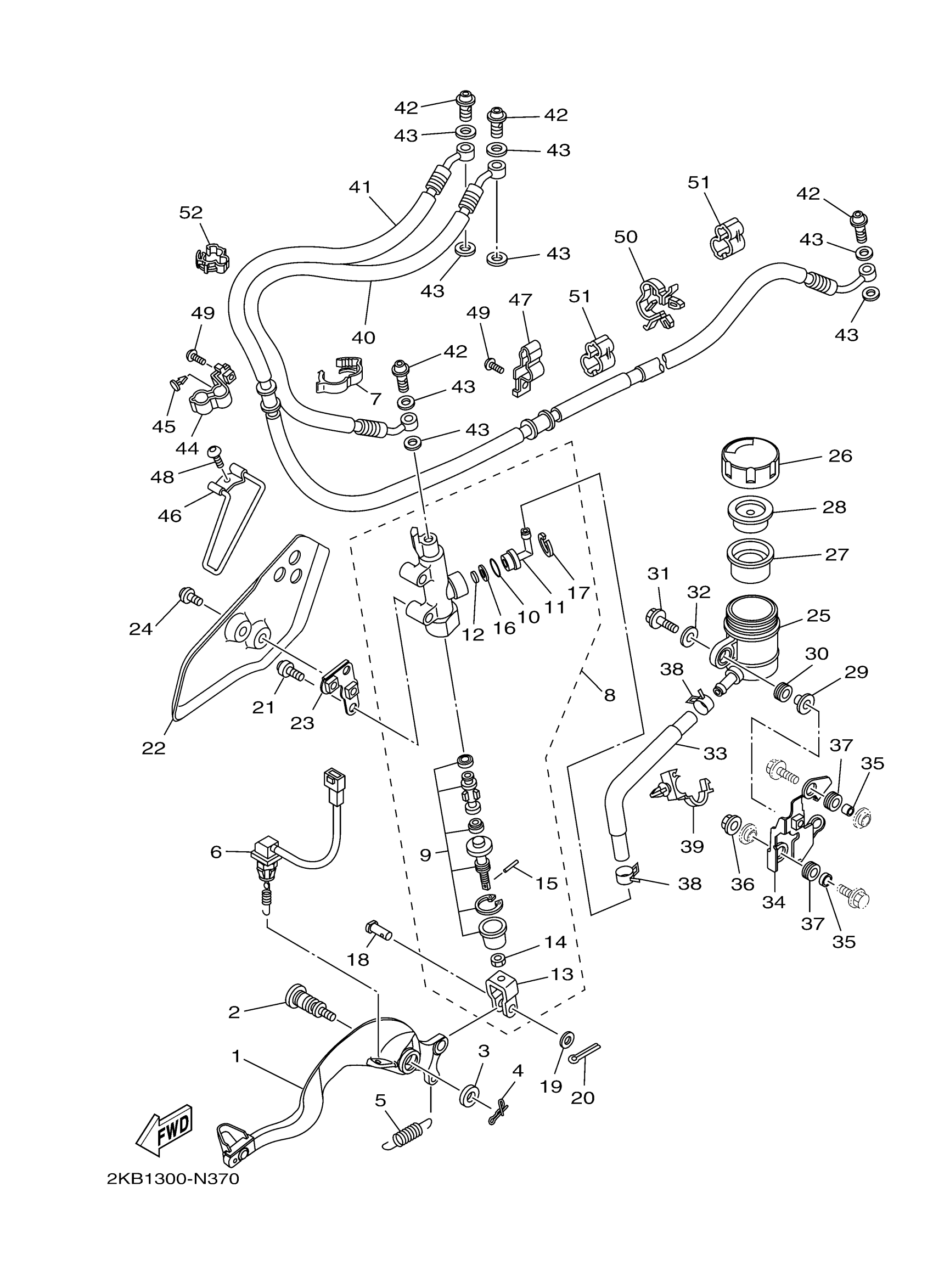

Yamaha XTZ12ELGY (SUPER TENERE ES) BP9D 2020 REAR MASTER CYLINDER Diagram

#

Description
Price

1

PEDAL, BRAKE

23P-27200-00-00

Unavailable

2

BOLT

5XC-27217-90-00

$30.99

3

WASHER, PLATE

90201-08060-00

$10.49

4

CLIP(3YF)

90468-16191-00

$8.49

5

SPRING, TENSION (2X3)

90506-20193-00

$14.99

6

STOP SWITCH ASSY

2BS-82530-01-00

$58.99

7

CLAMP

90464-16003-00

$7.49

8

RR. MASTER CYLINDER ASSY.

23P-2583V-00-00

$283.99

9

CYLINDER KIT, MASTER

23P-W0042-50-00

Unavailable

10

O-RING (22U)

93210-15566-00

$7.49

11

JOINT

4ML-2582A-50-00

$14.49

12

FILTER

23P-2586G-00-00

$4.68

13

JOINT

23P-27222-00-00

Unavailable

14

NUT, HEXAGON SMALL

95317-08700-00

$9.49

15

PIN, BRAKE ROD

3KW-27234-00-00

$7.99

16

PLATE, FILTER

23P-2586H-00-00

Unavailable

17

CIRCLIP

2VN-25866-00-00

Unavailable

18

PIN, CLEVIS(2VM)

90240-08120-00

Unavailable

19

WASHER, PLATE

90201-08044-00

Unavailable

20

PIN, COTTER (648)

91490-20015-00

Unavailable

21

BOLT, BUTTON HEAD

92012-08035-00

Unavailable

22

PLATE 2

2BS-27446-00-00

Unavailable

23

BRACKET 1

2BS-27432-00-00

Unavailable

24

BOLT,HEX. SOCKET BUTTON

90111-08037-00

Unavailable

25

TANK, RESERVOIR

14B-25894-00-00

Unavailable

26

CAP, RESERVOIR

2C0-25852-00-00

Unavailable

27

DIAPHRAGM, RESERVOIR

2VN-25854-00-00

Unavailable

28

BUSH,DIAPHRAGM

2VN-25855-00-00

Unavailable

29

COLLAR

90387-05028-00

Unavailable

30

GROMMET

2C0-26326-00-00

Unavailable

31

BOLT, SOCKET

91317-05020-00

Unavailable

32

WASHER PLATE (664)

90201-05556-00

Unavailable

33

HOSE, RESERVOIR

2KB-25895-00-00

Unavailable

34

STAY

2KB-22538-00-00

Unavailable

35

GROMMET

90480-12010-00

Unavailable

36

NUT, FLANGE

95702-06500-00

Unavailable

37

COLLAR 8121444900

90387-06023-00

Unavailable

38

CLIP

90467-120A3-00

Unavailable

39

CLAMP

90464-17003-00

Unavailable

40

HOSE, BRAKE 4

23P-2581J-00-00

Unavailable

41

HOSE, BRAKE 5

23P-2581K-00-00

Unavailable

42

BOLT, UNION

90401-10172-00

Unavailable

43

GASKET

90430-10005-00

Unavailable

44

HOLDER, BRAKE HOSE

23P-25886-00-00

Unavailable

45

RIVET

90269-07011-00

Unavailable

46

HOLDER

23P-27911-00-00

Unavailable

47

HOLDER, BRAKE HOSE

23P-2587A-00-00

Unavailable

48

BOLT, BUTTON HEAD

92012-06014-00

Unavailable

49

BOLT, BUTTON HEAD

92012-06012-00

Unavailable

50

CLAMP(4NX)

90464-23239-00

Unavailable

51

CLAMP(4GL)

90464-10233-00

Unavailable

52

CLAMP

90464-12013-00

Unavailable
