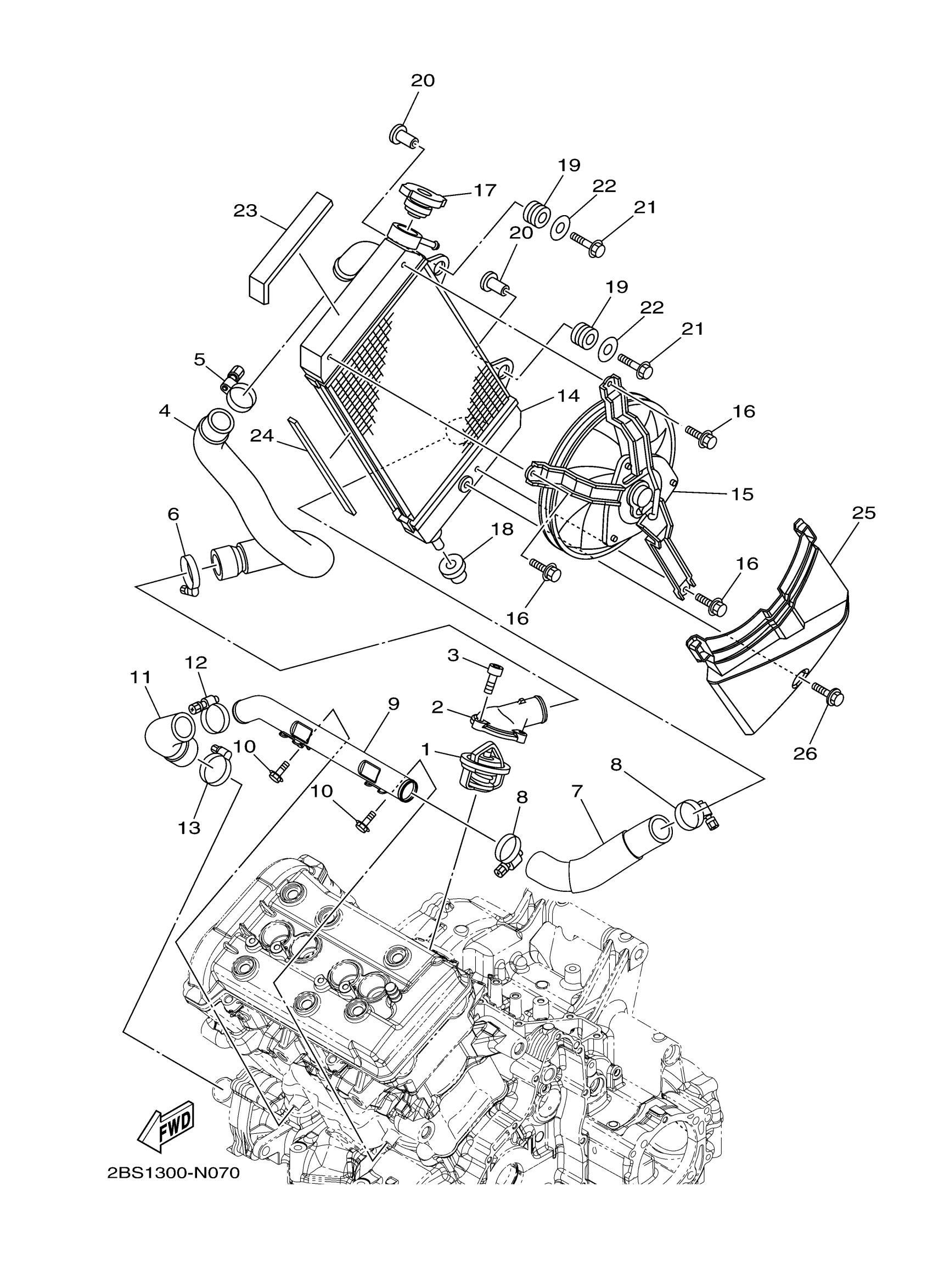

Yamaha XTZ12ELGY (SUPER TENERE ES) BP9D 2020 RADIATOR & HOSE Diagram

#

Description
Price

1

THERMOSTAT ASSY

23P-12410-01-00

Unavailable

2

COVER, THERMOSTAT

23P-12413-00-00

Unavailable

3

BOLT,SOCKET HEAD

91314-06020-00

$1.49

4

HOSE 1

23P-12576-00-00

$75.99

5

HOSE CLAMP ASSY

90450-35001-00

$5.60

6

HOSE CLAMP ASSY

90450-38003-00

$16.99

7

HOSE 3

23P-12578-00-00

$30.99

8

HOSE CLAMP ASSY

90450-35001-00

$5.60

9

PIPE 3

23P-12483-00-00

Unavailable

10

BOLT, FLANGE

95824-06010-00

$8.49

11

HOSE 5

23P-12588-00-00

$17.49

12

HOSE CLAMP ASSY

90450-35001-00

$5.60

13

HOSE CLAMP ASSY

90450-38003-00

$16.99

14

RADIATOR COMP

23P-12461-00-00

$665.99

15

BLOWER ASSY

23P-12405-02-00

Unavailable

16

BOLT, BLOWER HOLDING

3D8-12675-00-00

Unavailable

17

CAP, RADIATOR

4FL-12462-00-00

Unavailable

18

GROMMET

90480-20003-00

Unavailable

19

GROMMET

90480-17010-00

Unavailable

20

COLLAR

90387-06256-00

Unavailable

21

95812-06035

95812-06035-00

Unavailable

22

WASHER, PLATE

90201-06095-00

Unavailable

23

DAMPER

4D9-21747-00-00

Unavailable

24

DAMPER

4FU-21747-00-00

Unavailable

25

GUIDE, AIR 2

23P-2137V-00-00

Unavailable

26

BOLT, WITH WASHER

90119-06242-00

Unavailable
