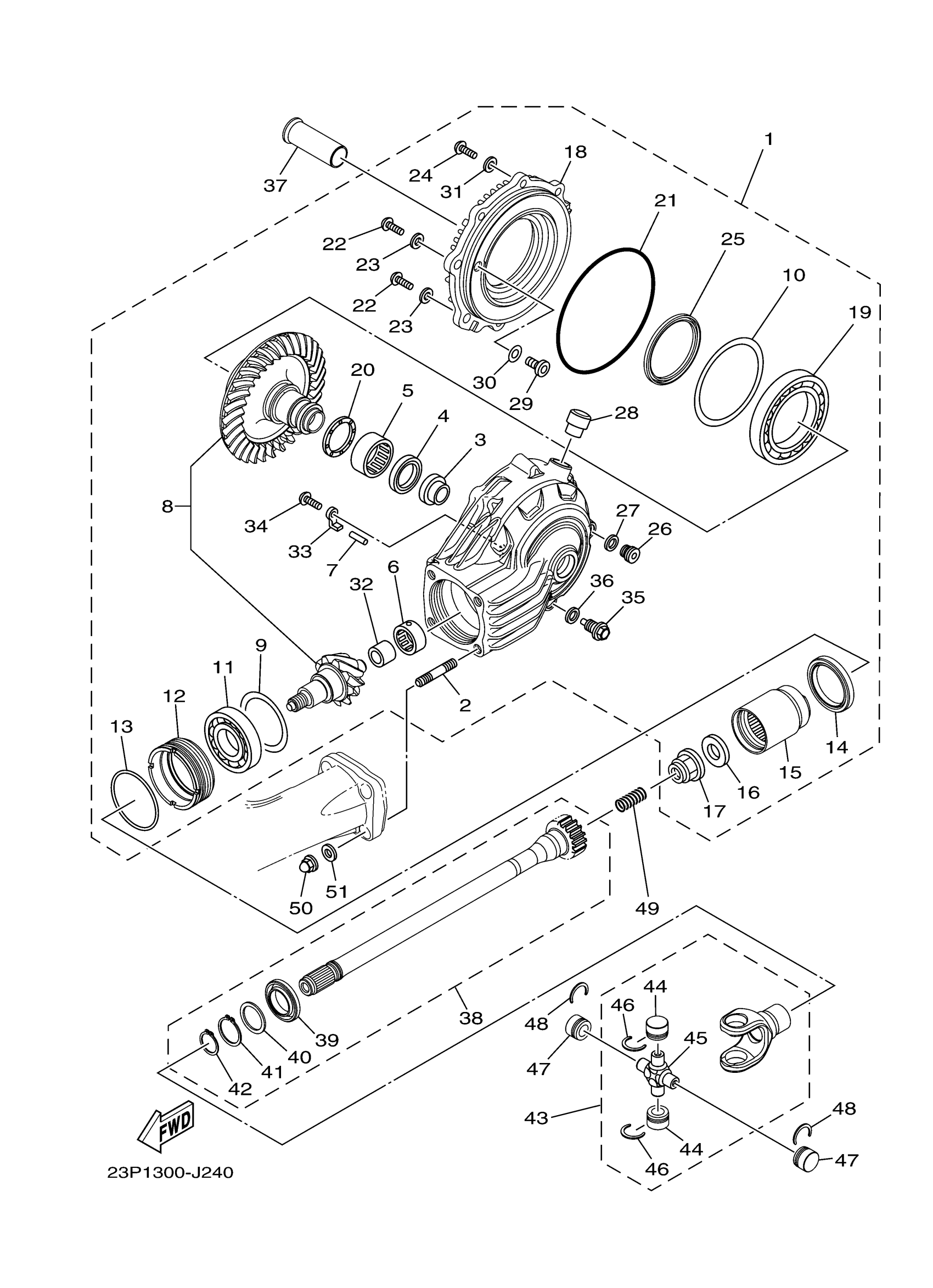

Yamaha XTZ12ELGY (SUPER TENERE ES) BP9D 2020 DRIVE SHAFT Diagram
#
1
REAR AXLE GEAR CASE ASSY
23P-46101-00-00
Unavailable
3
COLLAR, GUIDE
23P-46153-00-00
Unavailable
5
BRG,CYL-CAL ROLLER 80G KY
93311-43729-00
Unavailable
6
BEARING
93311-62597-00
Unavailable
9
SHIM, THRUST
2S3-46119-00-00
Unavailable
9
SHIM, THRUST
2S3-46119-10-00
Unavailable
9
SHIM, THRUST
2S3-46119-20-00
Unavailable
9
SHIM, THRUST
2S3-46119-30-00
Unavailable
9
SHIM, THRUST
2S3-46119-40-00
Unavailable
9
SHIM, THRUST
2S3-46119-50-00
Unavailable
9
SHIM, THRUST
2S3-46119-60-00
Unavailable
9
SHIM, THRUST
2S3-46119-70-00
Unavailable
10
SHIM, RING GEAR (0.25T)
1J7-46117-Y0-25
Unavailable
10
SHIM, RING GEAR (0.30T)
1J7-46117-Y0-30
Unavailable
10
SHIM, RING GEAR (0.40T)
1J7-46117-Y0-40
Unavailable
10
SHIM, RING GEAR (0.50T)
1J7-46117-Y0-50
Unavailable
11
BEARING
93306-20724-00
Unavailable
12
RETAINER, BEARING
23P-46125-00-00
Unavailable
13
O-RING
93210-69628-00
Unavailable
14
OIL SEAL
93102-50009-00
Unavailable
15
COUPLING, GEAR
23P-46123-00-00
Unavailable
16
WASHER, CONICAL SPRING
90208-20001-00
Unavailable
17
NUT
90179-20015-00
Unavailable
18
HOUSING, BEARING
23P-46152-00-00
Unavailable
19
BRG,R-B 16014C2 110MM 433G KY
93316-01403-00
Unavailable
20
WASHER, THRUST
22U-46118-00-12
Unavailable
20
WASHER, THRUST
22U-46118-00-14
Unavailable
20
WASHER, THRUST
22U-46118-00-16
Unavailable
20
WASHER, THRUST
22U-46118-00-18
Unavailable
20
WASHER, THRUST
22U-46118-00-20
Unavailable
21
O-RING(59V)
93211-54698-00
Unavailable
22
SCREW
90149-10055-00
Unavailable
23
WASHER, PLATE
90201-10045-00
Unavailable
24
SCREW
90149-08051-00
Unavailable
25
OIL SEAL
93102-70004-00
Unavailable
26
PLUG, STRAIGHT SCREW
90340-14002-00
Unavailable
27
GASKET
214-11198-01-00
Unavailable
28
BREATHER COMP.
2H7-17590-00-00
Unavailable
29
STOPPER, RING GEAR
1FK-46156-00-00
Unavailable
30
SHIM, STOPPER
1FK-46157-00-15
Unavailable
30
. SHIM, STOPPER (T=020)
1FK-46157-00-20
Unavailable
31
WASHER, PLATE
90201-08043-00
Unavailable
32
RACE, INNER
23P-46122-00-00
Unavailable
33
HOLDER
2S3-46862-00-00
Unavailable
34
SCREW
90149-06156-00
Unavailable
35
PLUG, STRAIGHT SCREW
90340-14004-00
Unavailable
36
GASKET
214-11198-01-00
Unavailable
37
COLLAR, GUIDE 1
23P-4615A-00-00
Unavailable
38
SHAFT DRIVE ASSY
23P-46171-00-00
Unavailable
39
OIL SEAL
93108-49003-00
Unavailable
40
. WASHER, PLATE
90201-29M01-00
Unavailable
41
CIRCLIP
93410-29095-00
Unavailable
42
CIRCLIP (4H7)
93410-23056-00
Unavailable
43
CROSS JOINT COMP.
23P-46180-00-00
Unavailable
44
BEARING
93399-99963-00
Unavailable
45
SPIDER
23P-46187-00-00
Unavailable
46
CIRCLIP
93440-22196-00
Unavailable
47
BEARING
93399-99963-00
Unavailable
48
CIRCLIP
93440-22196-00
Unavailable
49
SPRING (137-16333-00)
90501-20122-00
Unavailable
50
NUT, CROWN(2GG)
90176-10075-00
Unavailable
51
WASHER, PLATE
92990-10600-00
Unavailable
