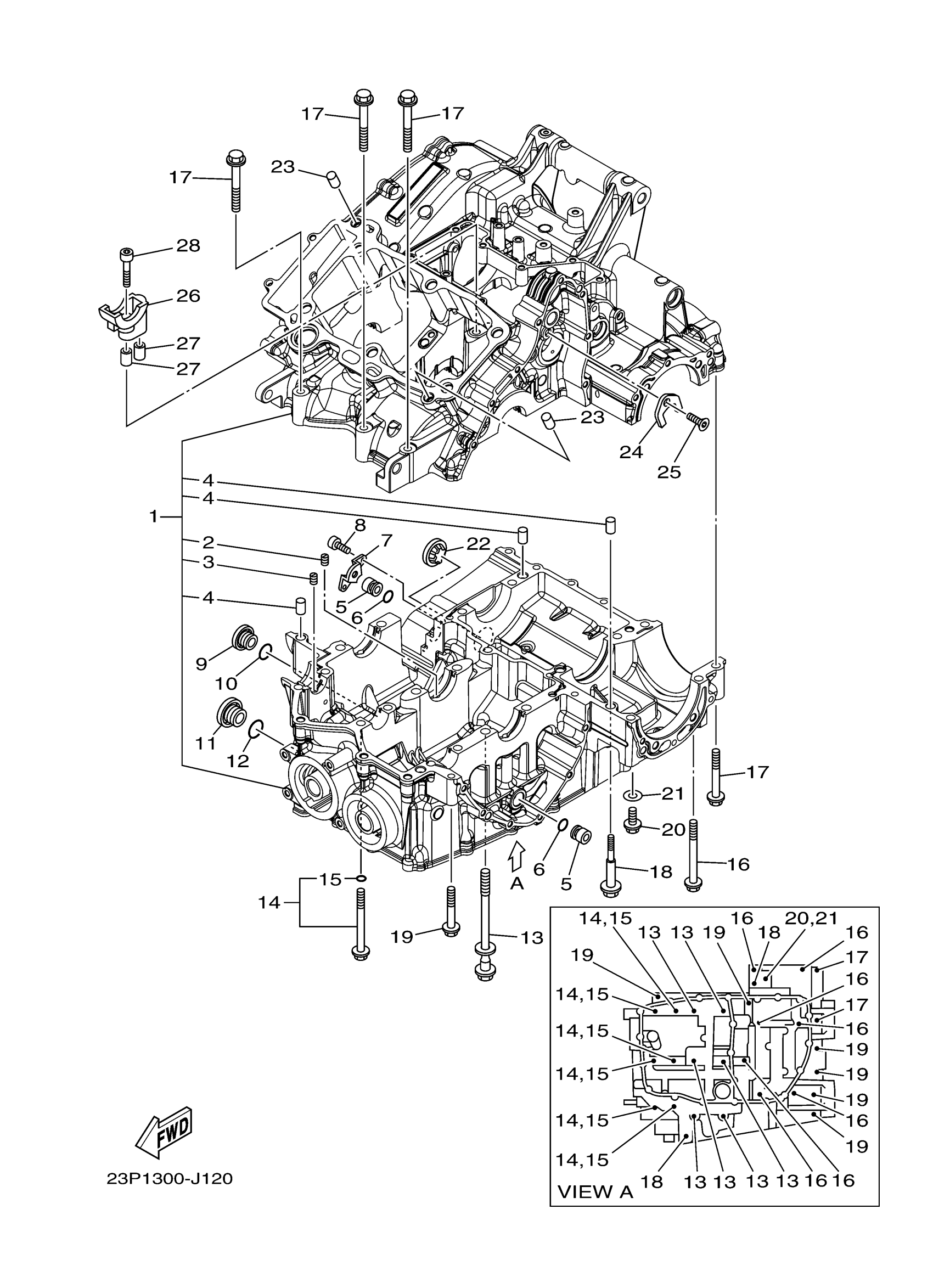

Yamaha XTZ12ELGY (SUPER TENERE ES) BP9D 2020 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

23P-15100-09-00

Unavailable

2

NOZZLE

4KM-13572-01-00

$6.99

3

NOZZLE 1

2UJ-15138-00-00

Unavailable

4

PIN, DOWEL(3VD)

99530-10114-00

$2.55

5

PLUG

90338-16262-00

$14.99

6

O-RING(3LD)

93210-12790-00

$7.49

7

HOLDER

23P-15128-00-00

Unavailable

8

BOLT,SOCKET

91317-06016-00

$1.25

9

PLUG

36Y-15189-01-00

Unavailable

10

O-RING(1L9)

93210-16325-00

$7.49

11

PLUG

4H7-15189-00-00

$30.99

12

O-RING

93210-20802-00

$0.86

13

BOLT, WITH WASHER

90119-10051-00

$23.99

14

BOLT, CRANKCASE JOURNAL

23P-15156-00-00

$10.99

15

O-RING (11M)

93210-07540-00

$7.49

16

BOLT, FLANGE(JF2)

95817-08080-00

Unavailable

17

BOLT, FLANGE

95817-08060-00

Unavailable

18

BOLT

90109-06100-00

Unavailable

19

BOLT, FLANGE

95812-06050-00

Unavailable

20

BOLT, FLANGE

95022-08016-00

Unavailable

21

GASKET

90430-08119-00

Unavailable

22

GAUGE, LEVEL

2H7-15361-00-00

Unavailable

23

PIN, DOWEL(3VD)

99530-10114-00

$2.55

24

PLATE

3LD-15191-00-00

Unavailable

25

SCREW, COUNTERSUNK

90151-06023-00

Unavailable

26

HOLDER

23P-15118-00-00

Unavailable

27

PIN, DOWEL(3XW)

91808-16023-00

Unavailable

28

BOLT(J17)

91312-06035-00

Unavailable
