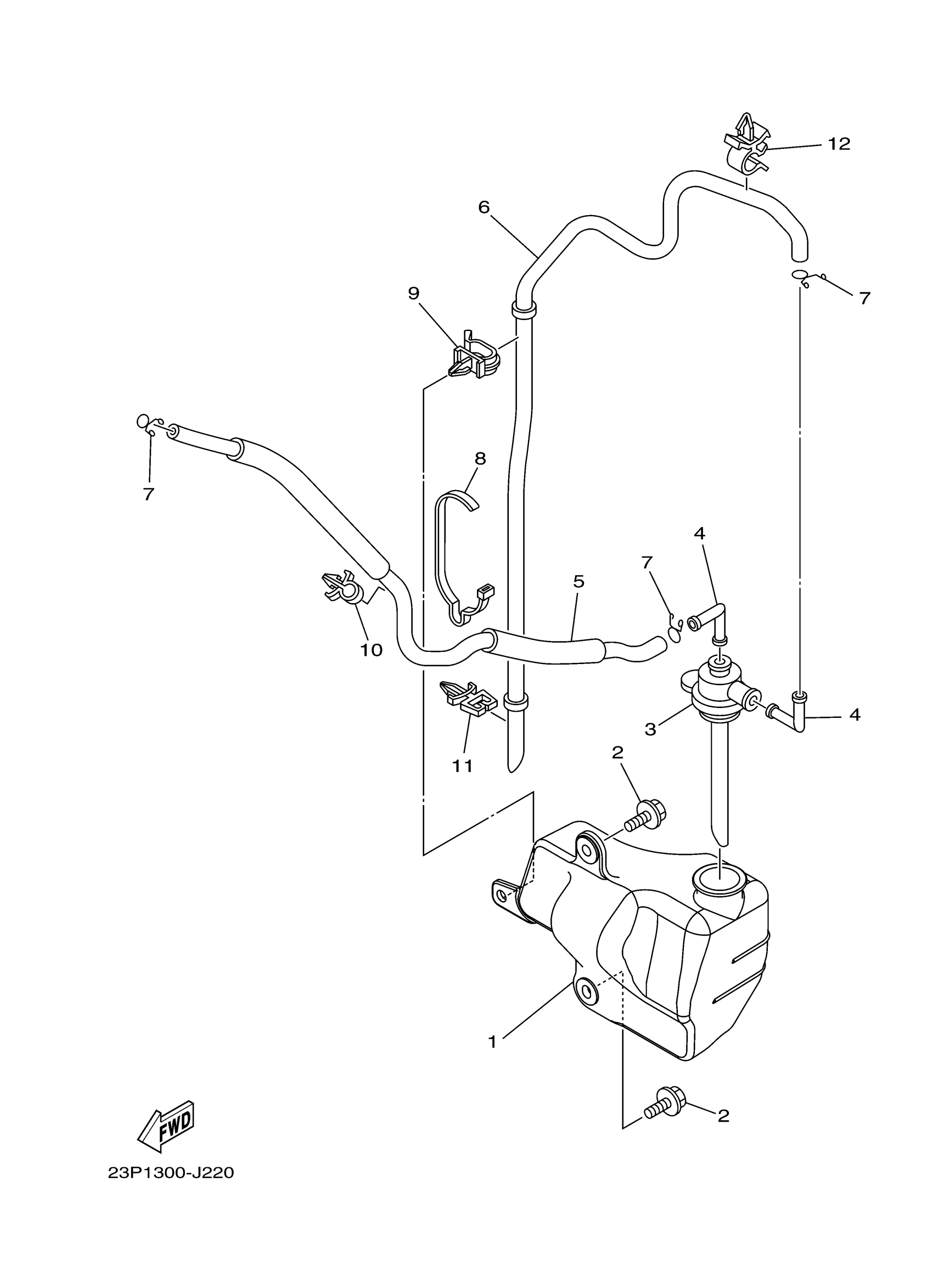

Yamaha XTZ12EL (SUPER TENERE) 2BS50 2014 TANK RECOVERY Diagram

#

Description
Price

1

TANK, RECOVERY

23P-21871-00-00

Unavailable

2

BOLT, WITH WASHER

90119-06137-00

$5.81

3

CAP

23P-21875-00-00

Unavailable

4

ELBOW

26H-21828-00-00

$20.48

5

PIPE 1

23P-21816-00-00

Unavailable

6

PIPE, OVERFLOW

23P-21877-00-00

$4.58

7

CLIP (16G)

90467-08021-00

$5.75

8

CLAMP(6U0)

90464-07M40-00

$13.26

9

CLAMP

90464-14M55-00

$1.76

10

CLAMP

90464-08008-00

Unavailable

11

CLAMP

90464-07M56-00

$1.80

12

CLAMP(3LD)

90464-09129-00

$1.79
