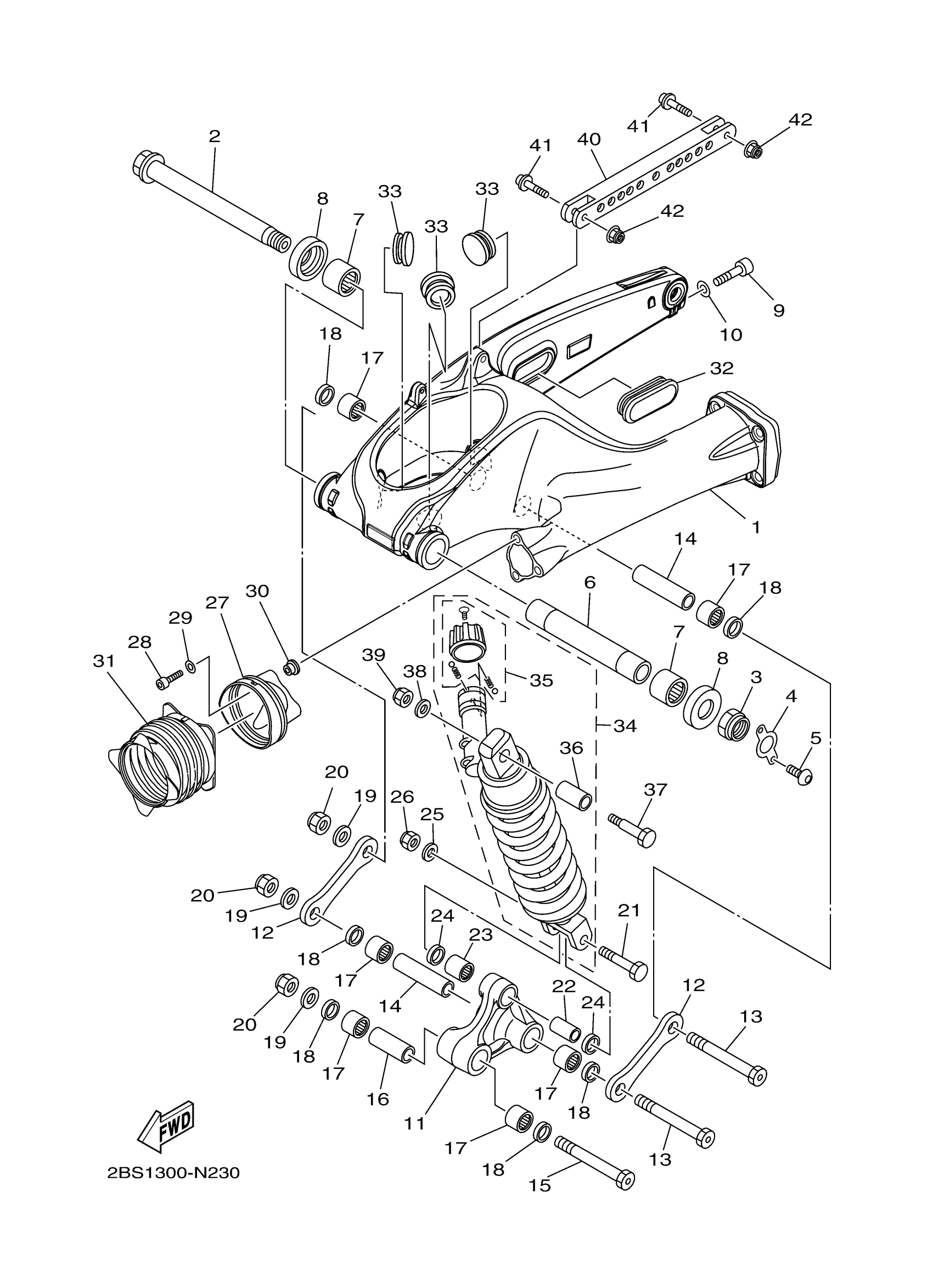

Yamaha XTZ12EL (SUPER TENERE) 2BS50 2014 REAR ARM SUSPENSION Diagram

#

Description
Price

1

REAR ARM COMP.

23P-22110-00-00

$915.99

2

SHAFT, PIVOT

23P-22141-00-00

Unavailable

3

NUT, SELF-LOCKING

90185-22009-00

$19.99

4

BRACKET

23P-22163-00-00

Unavailable

5

BOLT, BUTTON HEAD

92012-05008-00

$2.82

6

BUSH

23P-22184-00-00

Unavailable

7

BEARING

93317-330A0-00

$35.99

8

COVER, THRUST 1

23P-22128-00-00

Unavailable

9

BOLT

91312-10040-00

Unavailable

10

WASHER, PLATE

92990-10600-00

Unavailable

11

ARM, RELAY

23P-2217A-00-00

Unavailable

12

ARM 1

23P-2217M-00-00

Unavailable

13

BOLT

90109-14008-00

$24.99

14

COLLAR

90387-14014-00

Unavailable

15

BOLT

90109-14009-00

Unavailable

16

COLLAR

90387-14015-00

Unavailable

17

BEARING, CYLINDRICAL(3MH)

93315-32057-00

Unavailable

18

OIL SEAL

93109-20076-00

Unavailable

19

WASHER, PLATE

90201-14027-00

Unavailable

20

NUT, SELF-LOCKING

90185-14010-00

Unavailable

21

BOLT

90101-12038-00

Unavailable

22

COLLAR

90387-12045-00

Unavailable

23

BEARING, CYLINDRICAL(4PT)

93315-31750-00

Unavailable

24

OIL SEAL

93109-17071-00

Unavailable

25

WASHER, PLATE

90201-12045-00

Unavailable

26

NUT, SELF-LOCKING

90185-12008-00

Unavailable

27

COVER, DUST

23P-2217H-00-00

Unavailable

28

BOLT

91312-05014-00

Unavailable

29

. WASHER, PLAIN

92990-05200-00

Unavailable

30

COLLAR

90387-05035-00

Unavailable

31

BOOT, RUBBER

23P-22189-00-00

Unavailable

32

COVER

5JW-2219X-00-00

Unavailable

33

PLUG

90338-30267-00

Unavailable

34

SHOCK ABSORBER ASSY, REAR

2BS-22210-30-00

Unavailable

35

REPAIR KIT

23P-28130-09-00

Unavailable

36

BUSH, REAR SHOCK ABSORBER

4TV-22216-00-00

Unavailable

37

BOLT

90109-10028-00

Unavailable

38

WASHER, PLATE

90201-10036-00

Unavailable

39

NUT, U

95617-10100-00

Unavailable

40

BAR, TENSION

23P-25371-00-00

Unavailable

41

BOLT, HEXAGON SOCKET HEAD

90110-08007-00

Unavailable

42

NUT, SELF-LOCKING

95602-08200-00

Unavailable
