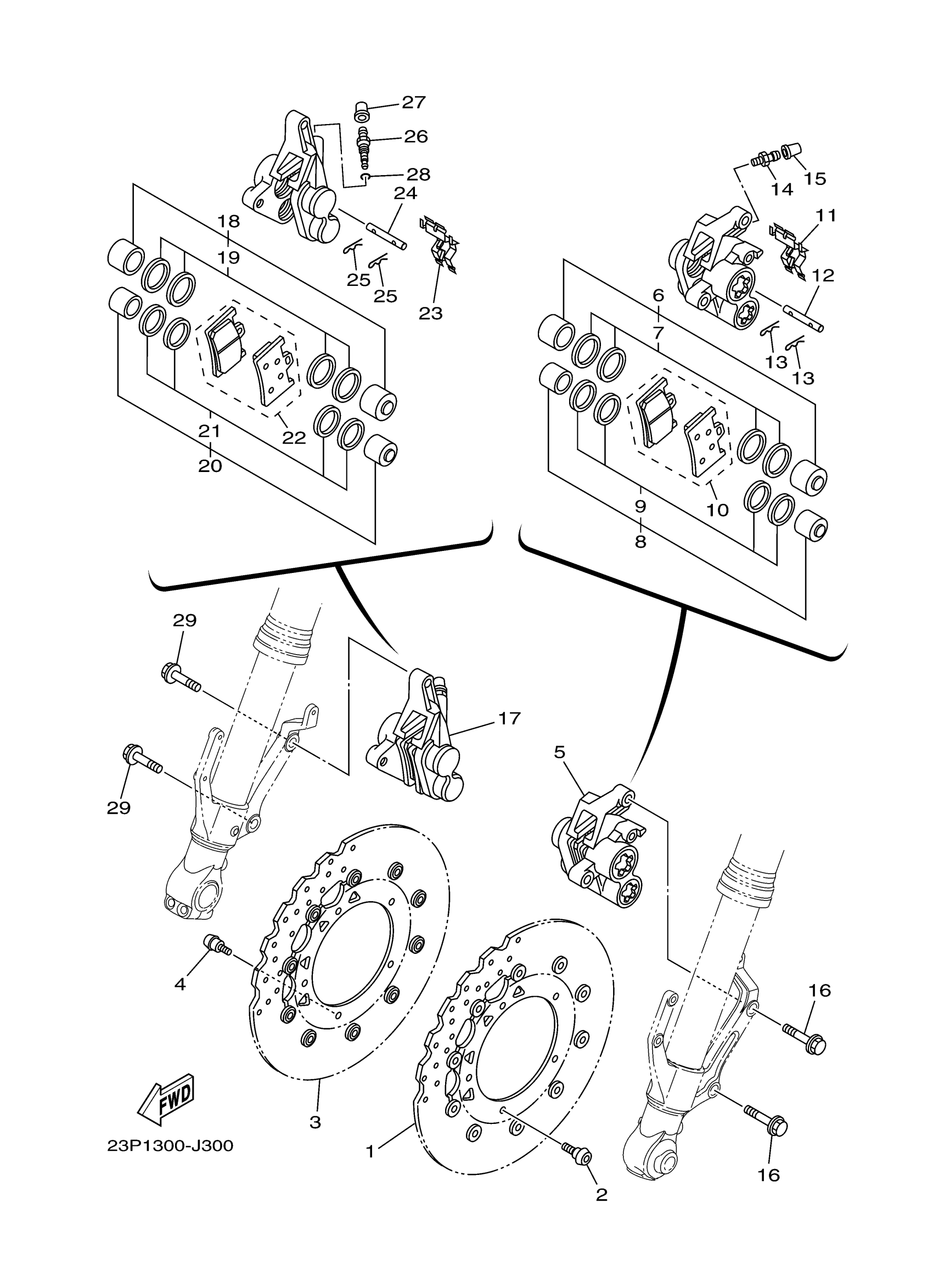

Yamaha XTZ12EL (SUPER TENERE) 2BS50 2014 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DISK BRAKE ASSY

23P-2581T-01-00

$183.15

2

SCREW

90149-06045-00

$6.18

3

DISK BRAKE ASSY

23P-2581T-01-00

$183.15

4

SCREW

90149-06045-00

$6.18

5

CALIPER ASSY (LEFT)

23P-2580T-00-00

Unavailable

6

PISTON ASSY, CALIPER

4SV-25802-10-00

$186.12

7

CALIPER SEAL KIT

3GM-25803-10-00

$44.91

8

PISTON ASSY, CALIPER

4SV-25802-00-00

$144.17

9

CALIPER SEAL KIT

3MA-25803-10-00

$43.65

10

BRAKE PAD KIT

2C0-25805-00-00

$50.78

11

SUPPORT, PAD

13S-25919-00-00

$20.44

12

PIN, PAD

4SV-25924-00-00

$34.81

13

CLIP, PAD PIN

3GM-25925-00-00

$9.15

14

SCREW, BLEED

1J3-25824-00-00

$4.44

15

CAP

306-25825-01-00

$8.14

16

BOLT, WASHER BASED

90105-105A7-00

Unavailable

17

CALIPER ASSY (RIGHT)

23P-2580U-00-00

Unavailable

18

PISTON ASSY, CALIPER

4SV-25802-10-00

$186.12

19

CALIPER SEAL KIT

3GM-25803-10-00

$44.91

20

PISTON ASSY, CALIPER

4SV-25802-00-00

$144.17

21

CALIPER SEAL KIT

3MA-25803-10-00

$43.65

22

BRAKE PAD KIT

2C0-25805-00-00

$50.78

23

SUPPORT, PAD

13S-25919-00-00

$20.44

24

PIN, PAD

4SV-25924-00-00

$34.81

25

CLIP, PAD PIN

3GM-25925-00-00

$9.15

26

SCREW, BLEED

5VS-25824-00-00

Unavailable

27

CAP

306-25825-01-00

$8.14

28

RUBBER, BUSHING

5VS-25975-00-00

Unavailable

29

BOLT, WASHER BASED

90105-105A7-00

Unavailable
