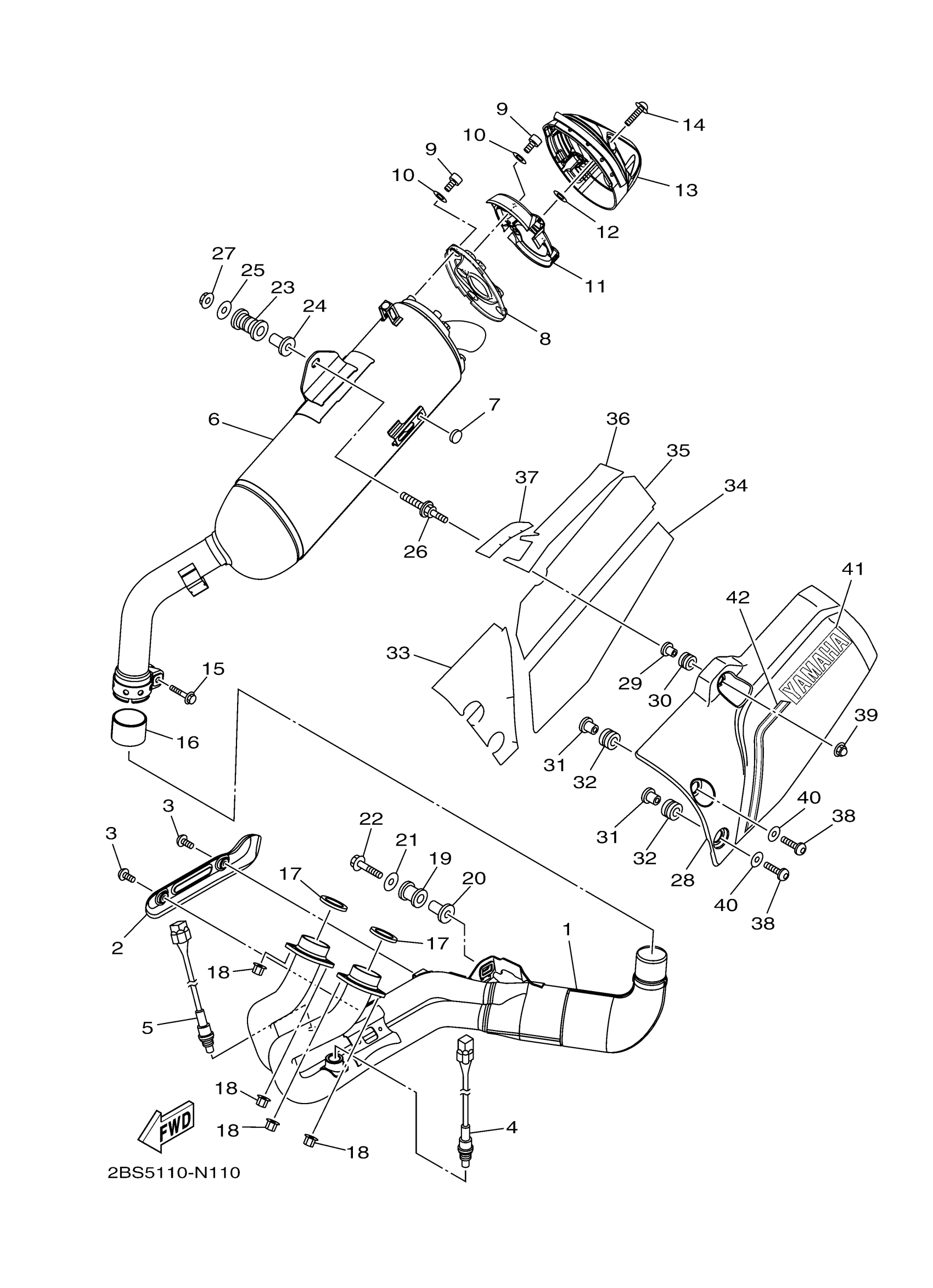

Yamaha XTZ12EL (SUPER TENERE) 2BS50 2014 EXHAUST Diagram

#

Description
Price

1

EXHAUST PIPE ASSY

2BS-14610-00-00

Unavailable

2

PROTECTOR, EXHAUST PIPE

23P-14628-00-00

Unavailable

3

SCREW, BIND(2TV)

98980-06008-00

$3.19

4

SENSOR, OXYGEN

2BS-8592A-00-00

Unavailable

5

SENSOR, OXYGEN

2BS-8592A-10-00

Unavailable

6

MUFFLER COMP. 1

23P-14703-10-00

$628.99

7

DAMPER, LOCATING 1

22W-24181-00-00

$6.99

8

BRKT.3-1

23P-1473K-10-00

Unavailable

9

BOLT,SOCKET

91380-06010-00

$8.49

10

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

11

BRACKET 4-1

23P-1474K-10-00

Unavailable

12

WASHER, PROTECTOR

5GM-14766-00-00

$2.34

13

CAP, SILENCER 2

23P-14798-00-00

Unavailable

14

BOLT, HEXAGON SOCKET HEAD

90110-06381-00

$2.82

15

BOLT, FLANGE

95814-08040-00

$4.72

16

GASKET, MUFFLER

5VY-14714-00-00

Unavailable

17

GASKET, EXHAUST PIPE

4FM-14613-00-00

Unavailable

18

NUT (22U)

90179-08410-00

Unavailable

19

DAMPER, MUFFLER 2

5YU-14757-00-00

Unavailable

20

COLLAR(3MA)

90387-082W9-00

Unavailable

21

WASHER, PLATE

90201-08034-00

Unavailable

22

BOLT, FLANGE

95814-08040-00

$4.72

23

DAMPER, FOOTREST 2

36Y-27424-01-00

Unavailable

24

COLLAR (2H7)

90387-10636-00

Unavailable

25

WASHER, PLATE

90201-10043-00

Unavailable

26

BOLT

23P-14777-00-00

Unavailable

27

NUT, FLANGE(3BM)

95704-10500-00

Unavailable

28

PROTECTOR, MUFFLER

2BS-14718-00-00

Unavailable

29

COLLAR(50M)

90387-087L0-00

Unavailable

30

GROMMET(4FW)

90480-12581-00

Unavailable

31

COLLAR

90387-10102-00

Unavailable

32

GROMMET

90480-01025-00

Unavailable

33

SEAT

2BS-1475P-00-00

Unavailable

34

SEAT

2BS-1476P-00-00

Unavailable

35

SEAT

2BS-1477P-00-00

Unavailable

36

SEAT 5

2BS-1479P-00-00

Unavailable

37

SEAT, 6

2BS-1471P-00-00

Unavailable

38

BOLT

90111-06038-00

Unavailable

39

NUT, CROWN (35R)

90176-06047-00

Unavailable

40

WASHER, PLATE

90201-06112-00

Unavailable

41

EMBLEM, YAMAHA

99247-00120-00

Unavailable

42

GRAPHIC 1

2BS-146E1-10-00

Unavailable
