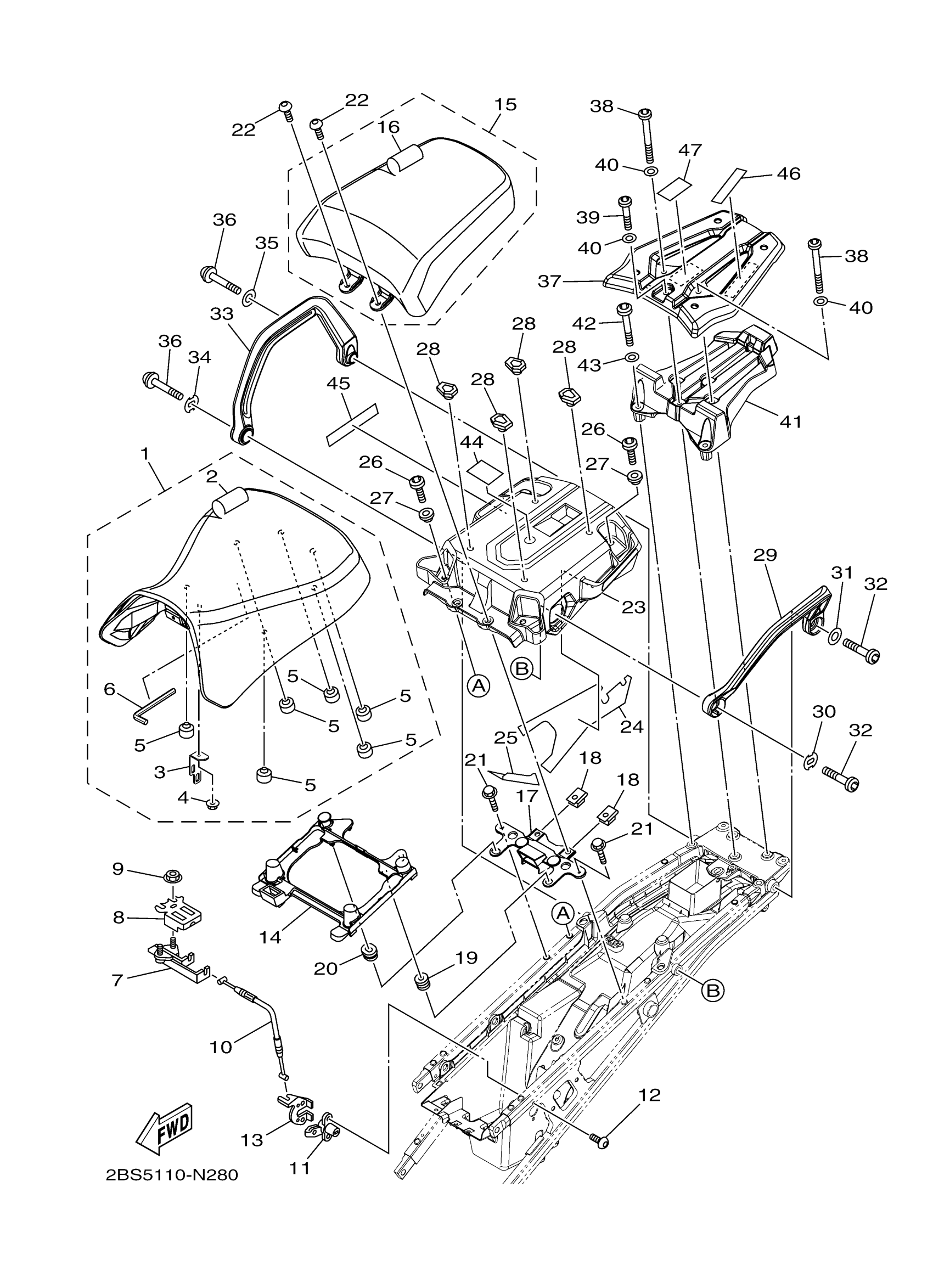

Yamaha XTZ12EJL (SUPER TENERE ES) BP94 2018 SEAT Diagram
#
1
SINGLE SEAT ASSY
2KB-24710-01-00
Unavailable
2
COVER, SINGLE SEAT
2KB-24711-01-00
Unavailable
8
BRACKET, SEAT LEVER 1
23P-2475H-00-00
Unavailable
9
NUT (21W)
90179-06403-00
Unavailable
10
CABLE, SEAT LOCK
23P-2478E-00-00
Unavailable
16
COVER, TANDEM SEAT
2KB-24751-00-00
Unavailable
17
STAY, FRONT 1
23P-2474F-00-00
Unavailable
18
NUT, SPRING
90183-08060-00
Unavailable
19
GROMMET
90480-13014-00
Unavailable
20
GROMMET(4BH)
90480-01559-00
Unavailable
21
BOLT, FLANGE
95817-06020-00
Unavailable
22
BOLT, BUTTON HEAD
92012-08025-00
Unavailable
23
CARRIER, REAR
23P-24842-10-00
Unavailable
24
SEAT
23P-2172P-10-00
Unavailable
25
SEAT 2
23P-2173P-00-00
Unavailable
26
SCREW
90149-06121-00
Unavailable
27
COLLAR
90387-06264-00
Unavailable
28
DAMPER, SEAT
23P-24737-00-00
Unavailable
29
ASSIST GRIP ASSY., 1
23P-2470J-01-P1
Unavailable
30
WASHER
23P-24736-00-00
Unavailable
31
958-69527-00 WASHER, PLAIN
92990-10200-00
Unavailable
32
BOLT,HEX. SOCKET BUTTON
90111-10054-00
Unavailable
33
ASSIST GRIP ASSY., 2
23P-2470K-01-P1
Unavailable
34
WASHER
23P-24736-00-00
Unavailable
35
958-69527-00 WASHER, PLAIN
92990-10200-00
Unavailable
36
BOLT,HEX. SOCKET BUTTON
90111-10054-00
Unavailable
37
CARRIER, FRONT
23P-24841-10-00
Unavailable
38
BOLT,HEX. SOCKET BUTTON
90111-08074-00
Unavailable
39
BOLT,HEX. SOCKET BUTTON
90111-08076-00
Unavailable
40
WASHER, PLATE
90201-08048-00
Unavailable
41
STAY, BOX
23P-24884-00-00
Unavailable
42
BOLT,HEX. SOCKET BUTTON
90111-08076-00
Unavailable
43
WASHER, PLATE
90201-08048-00
Unavailable
44
LABEL, WARNING CARRIER 2
23P-2816K-10-00
Unavailable
45
LABEL, WARNING CARRIER 1
23P-2816J-10-00
Unavailable
46
LABEL, NOTICE CARRIER
23P-2815T-10-00
Unavailable
47
LABEL, WARNING CARRIER 2
23P-2816K-10-00
Unavailable
