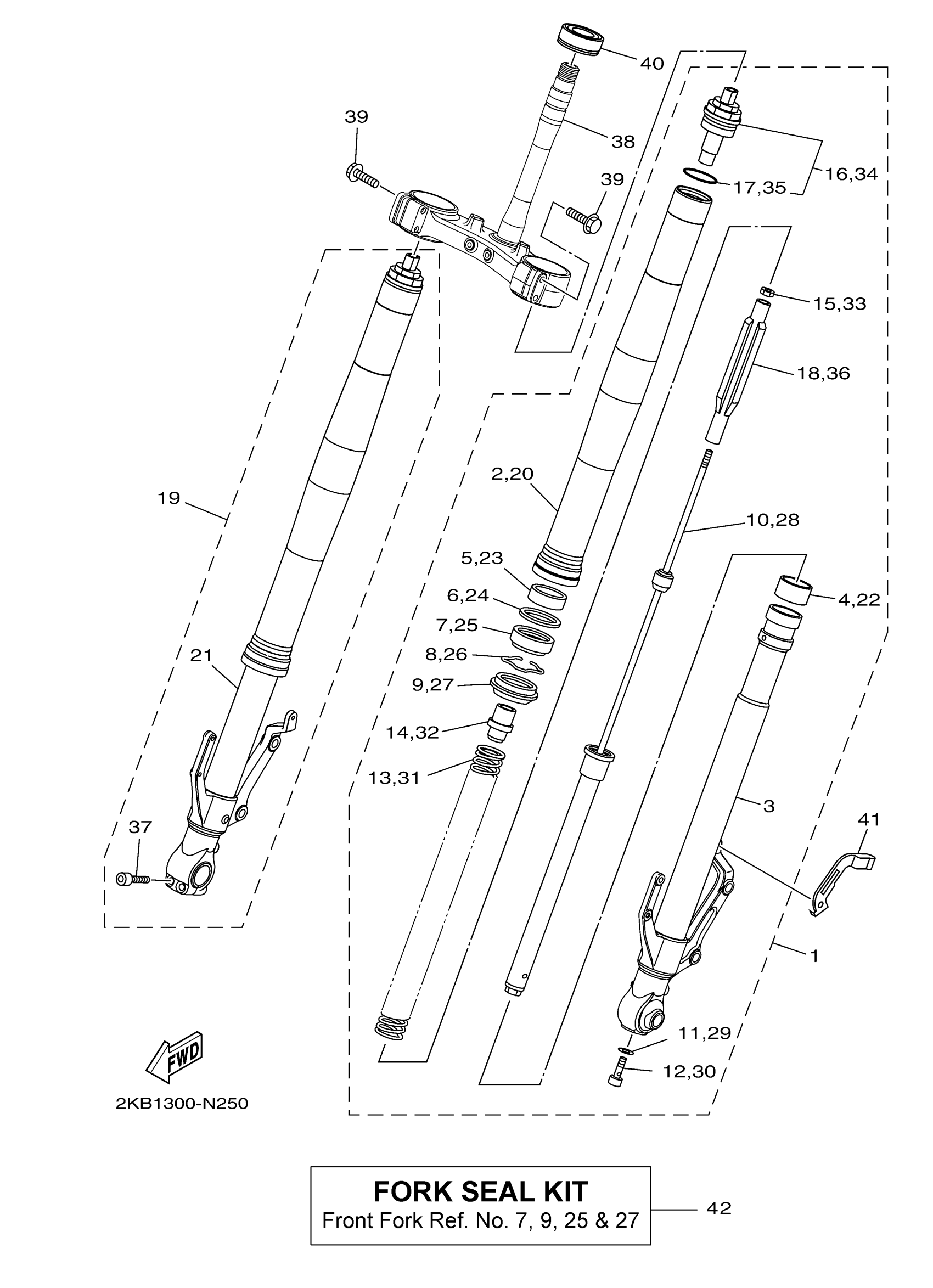

Yamaha XTZ12EJL (SUPER TENERE ES) BP94 2018 FRONT FORK Diagram
#
Description
Price
1
FRONT FORK ASSY (L.H)
2KB-23102-20-00
Unavailable
2
TUBE, OUTER 2
2BS-23136-20-00
Unavailable
3
INNER TUBE COMP.1
2KB-23110-00-00
Unavailable
13
SPRING, FRONT FORK
2KB-23141-00-00
Unavailable
14
SPACER
2KB-23118-00-00
Unavailable
16
BOLT, CAP
2KB-23111-00-00
Unavailable
17
O-RING
39P-23147-00-00
Unavailable
18
GUIDE, SPRING
2KB-23117-00-00
Unavailable
19
FRONT FORK ASSY (R.H)
2KB-23103-20-00
Unavailable
20
TUBE, OUTER 2
2BS-23136-20-00
Unavailable
21
INNER TUBE COMP.2
2KB-23120-00-00
Unavailable
28
CYLINDER COMP., FR
2KB-23170-00-00
Unavailable
31
SPRING, FRONT FORK
2KB-23141-00-00
Unavailable
32
SPACER
2KB-23118-00-00
Unavailable
34
BOLT, CAP
2KB-23111-00-00
Unavailable
35
O-RING
39P-23147-00-00
Unavailable
36
GUIDE, SPRING
2KB-23117-00-00
Unavailable
37
BOLT,SOCKET
91314-08040-00
Unavailable
38
UNDER BRACKET COMP.
23P-23340-00-00
Unavailable
39
BOLT, FLANGE(4KG)
95024-08040-00
Unavailable
40
BEARING(4SR)
93332-00081-00
Unavailable
41
HOLDER, BRAKE HOSE 1
23P-25875-00-00
Unavailable
42
FORK SEAL KIT (TWO FORKS)
4PU-W003B-00-00
Unavailable
