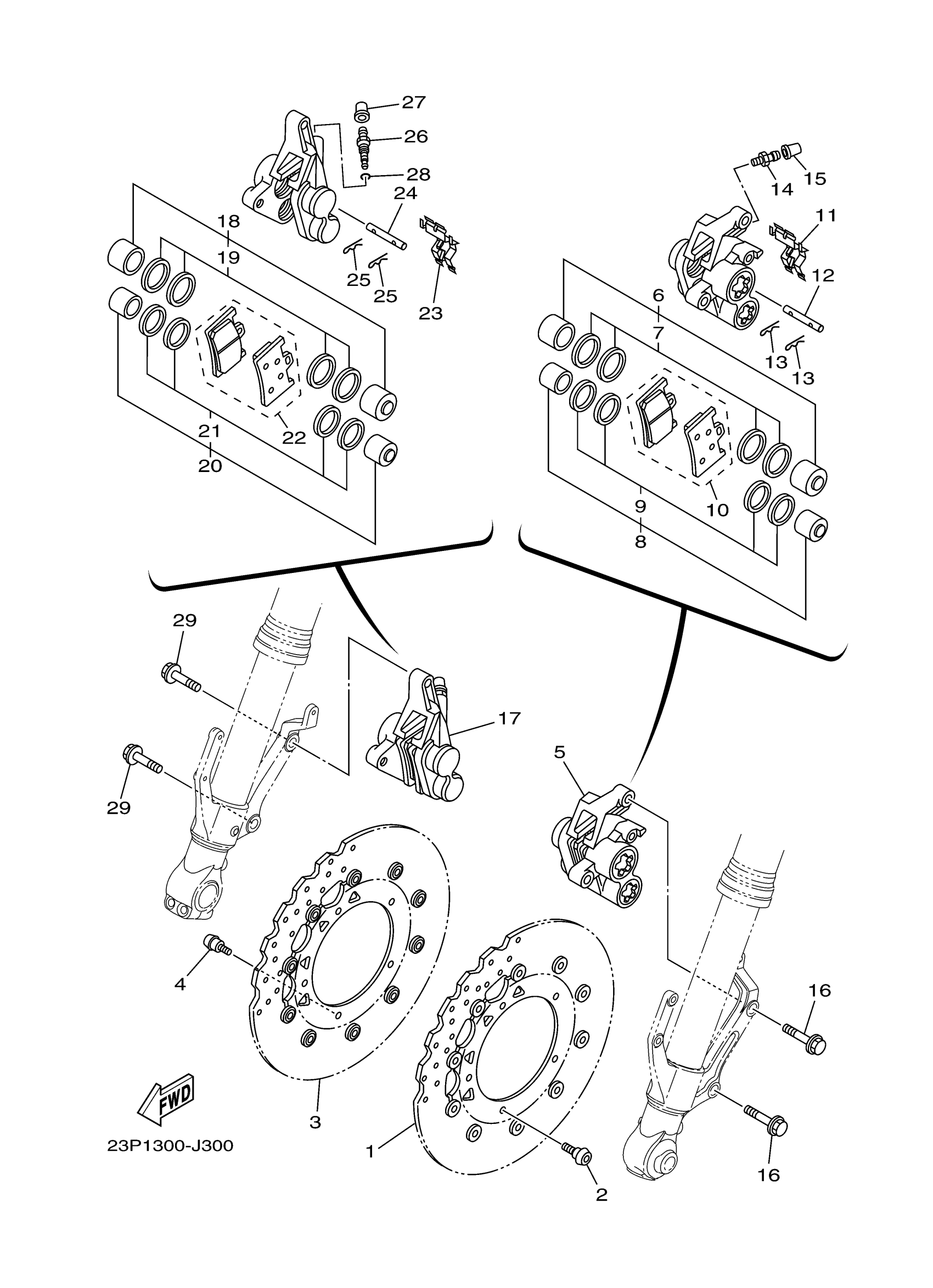

Yamaha XTZ12EJL (SUPER TENERE ES) BP94 2018 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DISK BRAKE ASSY

23P-2581T-01-00

$222.99

2

SCREW

90149-06045-00

$8.49

3

DISK BRAKE ASSY

23P-2581T-01-00

$222.99

4

SCREW

90149-06045-00

$8.49

5

CALIPER ASSY (LEFT

23P-2580T-10-00

$480.99

6

PISTON ASSY, CALIPER

4SV-25802-10-00

$196.99

7

CALIPER SEAL KIT

3GM-25803-10-00

$53.99

8

PISTON ASSY, CALIPER

4SV-25802-00-00

$155.99

9

CALIPER SEAL KIT

3MA-25803-10-00

$55.99

10

BRAKE PAD KIT

2C0-25805-00-00

$61.99

11

SUPPORT, PAD

13S-25919-00-00

$27.99

12

PIN, PAD

4SV-25924-00-00

$42.99

13

CLIP, PAD PIN

3GM-25925-00-00

$11.99

14

SCREW, BLEED

1J3-25824-00-00

$5.49

15

CAP

306-25825-01-00

$9.99

16

BOLT, WASHER BASED

90105-105A7-00

Unavailable

17

CALIPER ASSY (RIGH

23P-2580U-10-00

Unavailable

18

PISTON ASSY, CALIPER

4SV-25802-10-00

$196.99

19

CALIPER SEAL KIT

3GM-25803-10-00

$53.99

20

PISTON ASSY, CALIPER

4SV-25802-00-00

$155.99

21

CALIPER SEAL KIT

3MA-25803-10-00

$55.99

22

BRAKE PAD KIT

2C0-25805-00-00

$61.99

23

SUPPORT, PAD

13S-25919-00-00

$27.99

24

PIN, PAD

4SV-25924-00-00

$42.99

25

CLIP, PAD PIN

3GM-25925-00-00

$11.99

26

SCREW, BLEED

5VS-25824-00-00

Unavailable

27

CAP

306-25825-01-00

$9.99

28

RUBBER, BUSHING

5VS-25975-00-00

Unavailable

29

BOLT, WASHER BASED

90105-105A7-00

Unavailable
