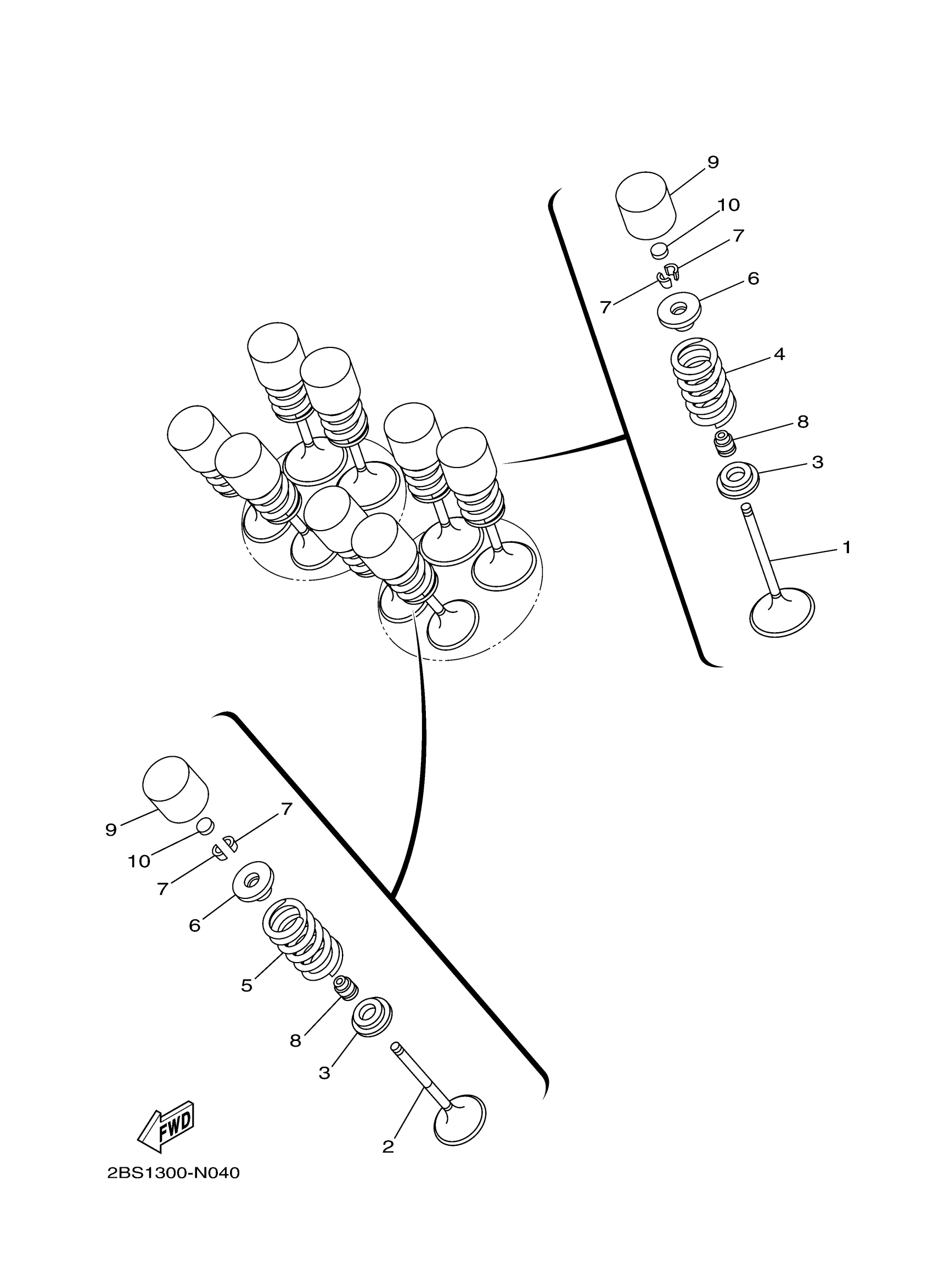

Yamaha XTZ12EHL (SUPER TENERE ES) 2KBT 2017 VALVE Diagram

#

Description
Price

1

VALVE, INTAKE

23P-12111-00-00

$33.03

2

VALVE, EXHAUST

23P-12121-00-00

Unavailable

3

SEAT, VALVE SPRING

23P-12116-00-00

$3.69

4

SPRING, VALVE INNER

23P-12113-00-00

$11.37

5

SPRING, VALVE OUTE

2BS-12114-00-00

$8.64

6

RETAINER, VALVE SPRING

23P-12117-00-00

$5.16

7

COTTER, VALVE

3LD-12118-00-00

$2.19

8

SEAL, VALVE STEM

51Y-12119-00-00

$4.08

9

LIFTER, VALVE

23P-12153-09-00

$47.12

10

PAD, ADJUSTING

3LD-12168-00-00

$14.42

10

PAD, ADJUSTING

3LD-12168-20-00

$15.36

10

PAD, ADJUSTING

3LD-12168-40-00

$15.36

10

PAD, ADJUSTING (1.35)

3LD-12168-60-00

$9.88

10

PAD, ADJUSTING (1.40)

3LD-12168-80-00

$13.73

10

PAD, ADJUSTING (1.45)

3LD-12168-A0-00

$9.27

10

PAD, ADJUSTING (1.50)

3LD-12168-F0-00

$13.03

10

PAD, ADJUSTING (1.55)

3LD-12168-H1-00

$14.01

10

PAD, ADJUSTING (1.60)

3LD-12168-K1-00

$10.40

10

PAD, ADJUSTING (1.65)

3LD-12168-M1-00

$10.73

10

PAD, ADJUSTING

3LD-12168-R1-00

Unavailable

10

PAD, ADJUSTING

3LD-12168-U1-00

Unavailable

10

PAD, ADJUSTING

3LD-12168-W1-00

Unavailable

10

PAD, ADJUSTING

3LD-12168-Y1-00

Unavailable

10

PAD, ADJUSTING

3LD-12169-11-00

Unavailable

10

PAD, ADJUSTING

3LD-12169-31-00

Unavailable

10

PAD, ADJUSTING

3LD-12169-50-00

Unavailable

10

PAD, ADJUSTING

3LD-12169-70-00

Unavailable

10

PAD, ADJUSTING (2.10)

3LD-12169-90-00

$13.93

10

PAD, ADJUSTING (2.15)

3LD-12169-E0-00

$13.85

10

PAD, ADJUSTING

3LD-12169-G0-00

Unavailable

10

PAD, ADJUSTING (2.25)

3LD-12169-J0-00

$9.88

10

PAD, ADJUSTING

3LD-12169-L0-00

Unavailable

10

PAD, ADJUSTING (2.35)

3LD-12169-N0-00

$8.45

10

PAD, ADJUSTING (2.40)

3LD-12169-T0-00

$13.84
