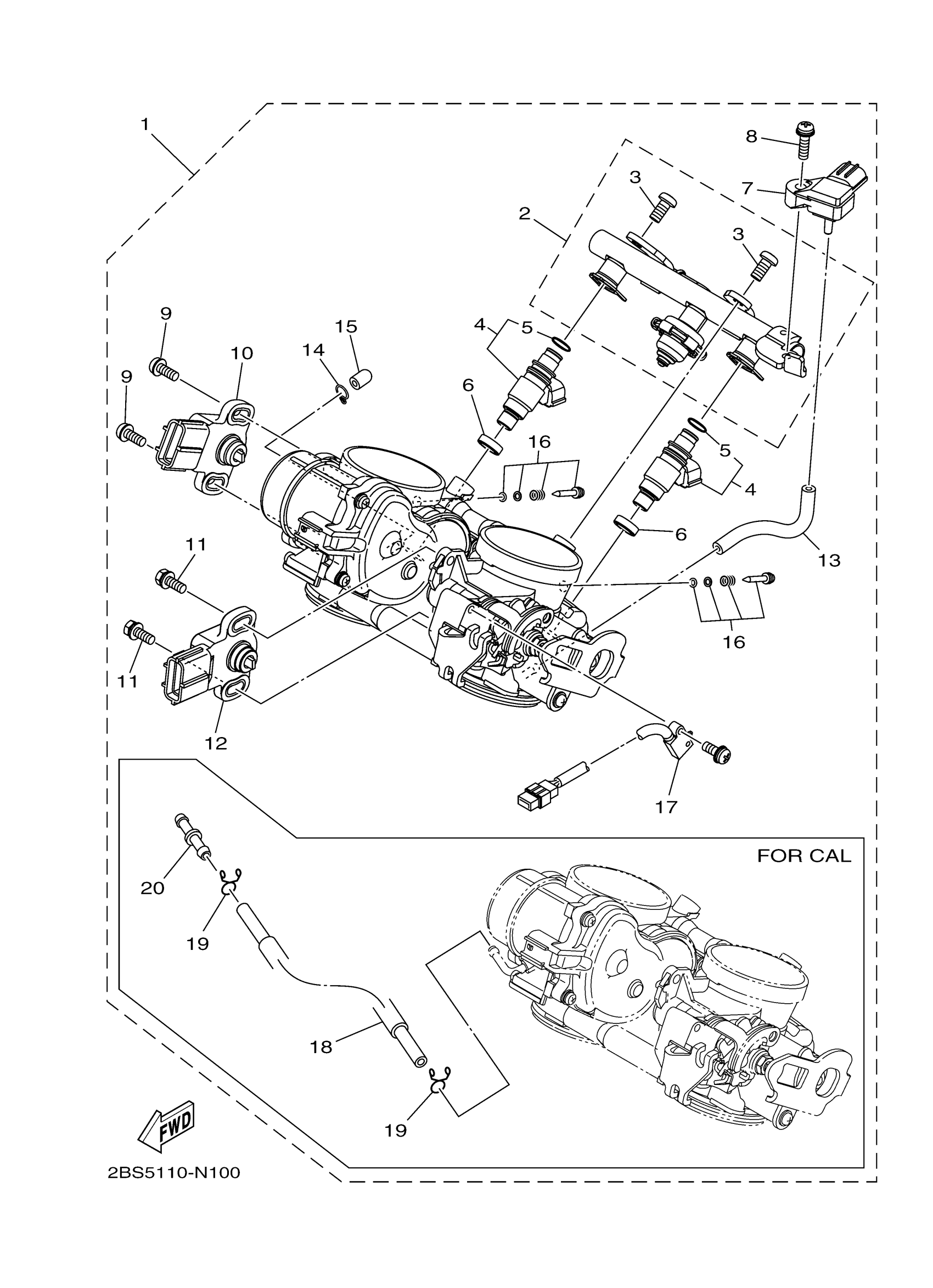

Yamaha XTZ12EHL (SUPER TENERE ES) 2KBT 2017 INTAKE 2 Diagram

#

Description
Price

1

THROTTLE BODY ASSY

2BS-13750-20-00

Unavailable

2

PIPE, INL.

23P-1393A-00-00

Unavailable

3

SCREW, PAN

98517-06012-00

$2.93

4

INJECTOR

23P-13761-00-00

$204.33

5

O-RING

5PS-14147-00-00

$8.68

6

GASKET, MANIFOLD

8FP-13556-00-00

$11.48

7

SENSOR, PRESSURE

1WS-82380-00-00

$159.59

8

SCREW

2C0-14216-00-00

$2.98

9

SCREW

8CC-14216-10-00

$6.66

10

THROTTLE SENSOR AS

13S-85885-01-00

$114.75

11

SCREW

5FL-14216-00-00

$3.64

12

ACCELERATOR SENSOR

1MC-85884-01-00

$109.25

13

. HOSE, VACUUM SENSING 3

63P-13532-00-00

$12.84

14

CLIP, PIPE

8A7-14139-00-00

$6.34

15

CAP

895-14169-00-00

$3.73

16

PILOT SCREW SET

2C0-14105-00-00

Unavailable

17

SWITCH ASSY

2BS-81860-02-00

Unavailable

18

PIPE

23P-14465-00-00

Unavailable

19

CLIP

90467-090A2-00

Unavailable

20

JOINT

4XY-14568-00-00

Unavailable
